Magewell Pro Convert IP to USB

The Magewell Pro Convert IP to USB is a plug-and-play UVC device that receives a single IP video stream and outputs it over USB-C, enabling IP-based workflows in conferencing, livestreaming, and AV production environments. The compact device supports NDI, NDI HX2, NDI HX3, and a wide range of streaming protocols, including SRT, RTMP, RTSP, and more. By offloading the decoding process to the device, the Pro Convert IP to USB minimizes CPU and GPU load on the host system and delivers 1080p60 video and two-channel embedded audio directly to compatible software.

The device features a USB-C video output and host port, an RJ45 video input and control output, and supports DHCP, remote PTZ camera control, and Magewell's Control Hub management platform. Designed for reliable operation and easy integration, the device offers robust protocol support, built-in processing, and broad compatibility.

Input and output

Decodes a single IP video stream and outputs USB UVC up to 1920 x 1080 at 60 fps

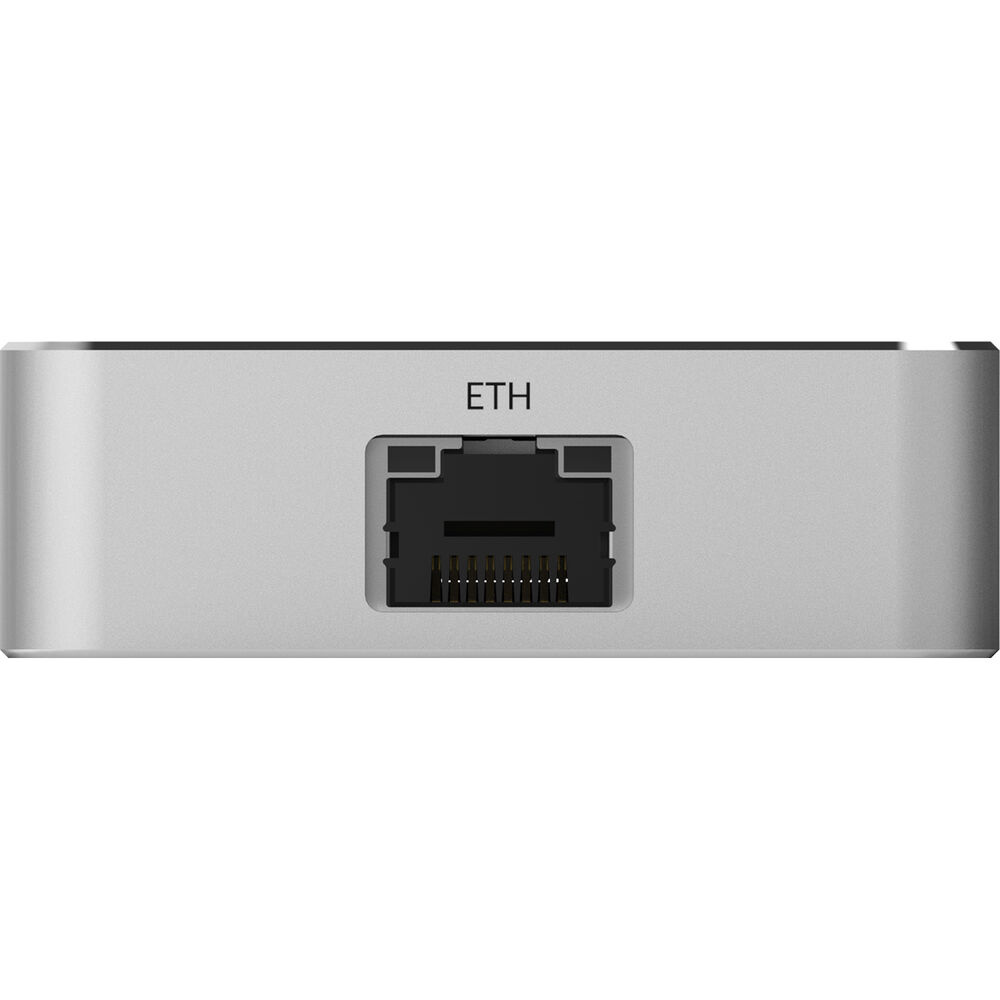

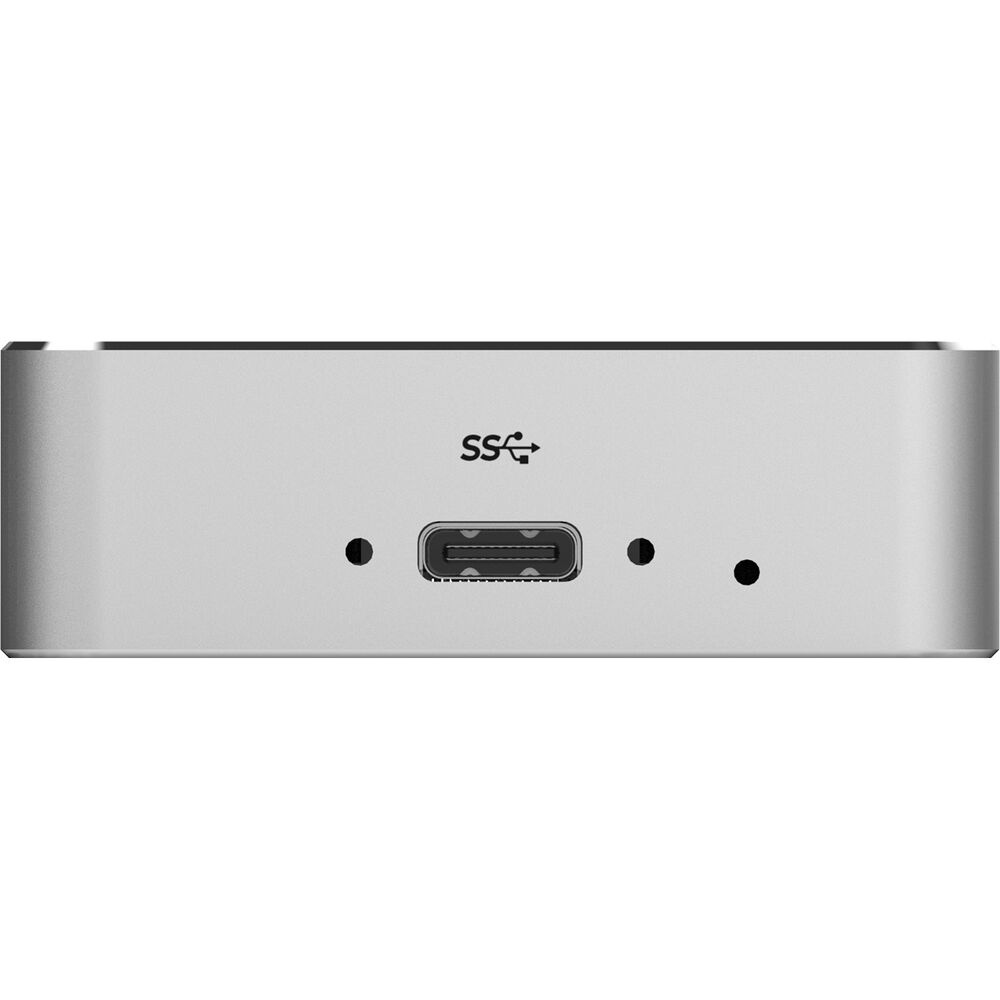

One RJ45 Ethernet input port (10/100/1000 Mb/s) and one USB-C 3.0 output port (5 Gb/s)

Two channels of built-in 16-bit, 48 kHz audio

Accepts 5VDC power at 1A through the USB-C port

Supports USB NET for device communication

Configuration management

Configuration via web interface or Magewell's Control Hub software

Web interface enables firmware upgrades, diagnostics and setting adjustments

Remotely control PTZ cameras via NDI or Visca over UDP

Supports HTTP APIs for custom integration

Compatible with macOS, Windows and Linux
