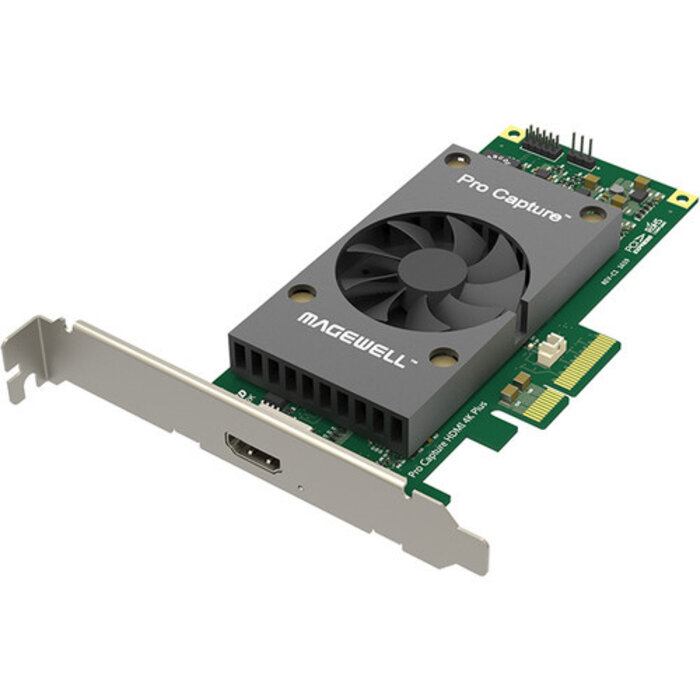

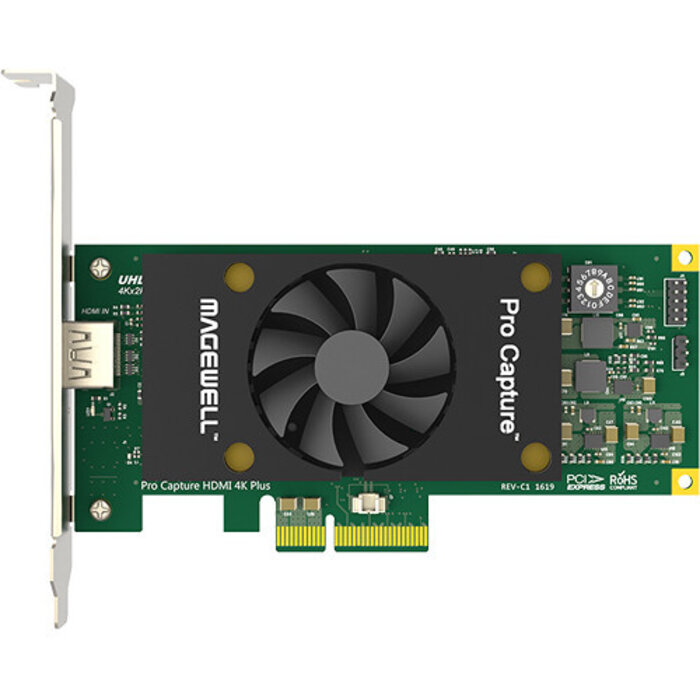

Magewell Pro Capture HDMI 4K Plus - PCIe Capture Card / 1× HDMI 2.0 / 4K60

Key features

• HDMI 2.0 input up to 4096×2160p60 with embedded audio
• 10-bit processing and hardware timestamp
• Hardware deinterlacing, scaling, cropping and colour adjustment
• Multiple cards per system possible
• PCIe Gen2 x4

How it works

The card fits in a free PCIe slot and registers in the operating system as a standard capture device. The on-board FPGA handles deinterlacing, scaling, colour space and frame rate conversion in hardware, leaving the computer's processor free for encoding, streaming or recording. Each channel can deliver several streams at once, for example in different resolutions for recording and streaming. Multiple cards can be used in one system.

Applications

Streaming and recording workstations, production systems for events and houses of worship, broadcast ingest, medical and industrial imaging, and servers that must run 24/7.

Limitations

No loop-through (see the 4K Plus LT). HDCP-protected sources cannot be captured.
