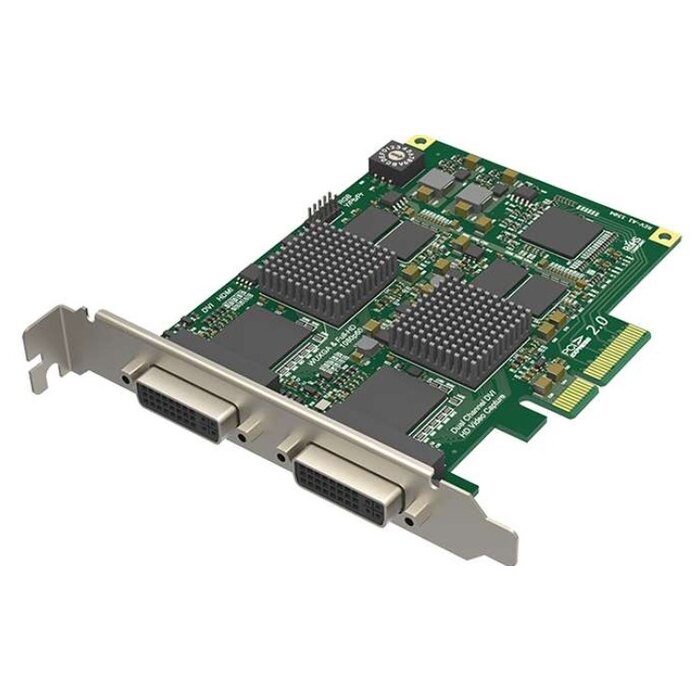

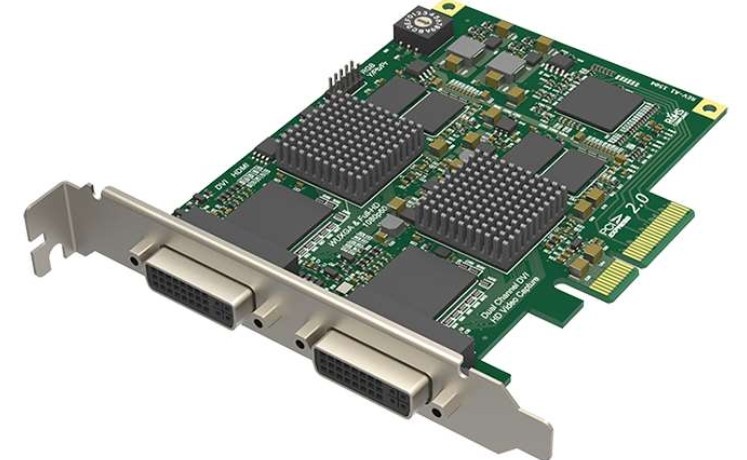

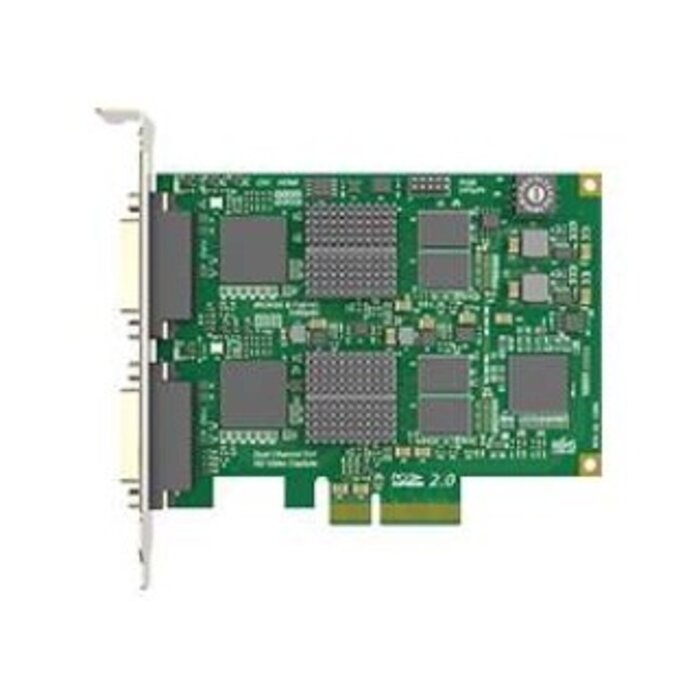

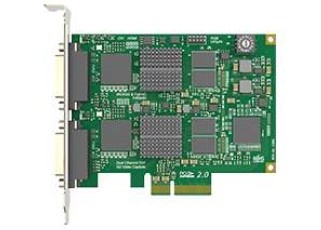

Magewell Pro Capture Dual DVI - PCIe Capture Card / 2× DVI, HDMI, VGA, Component / 2K

Key features

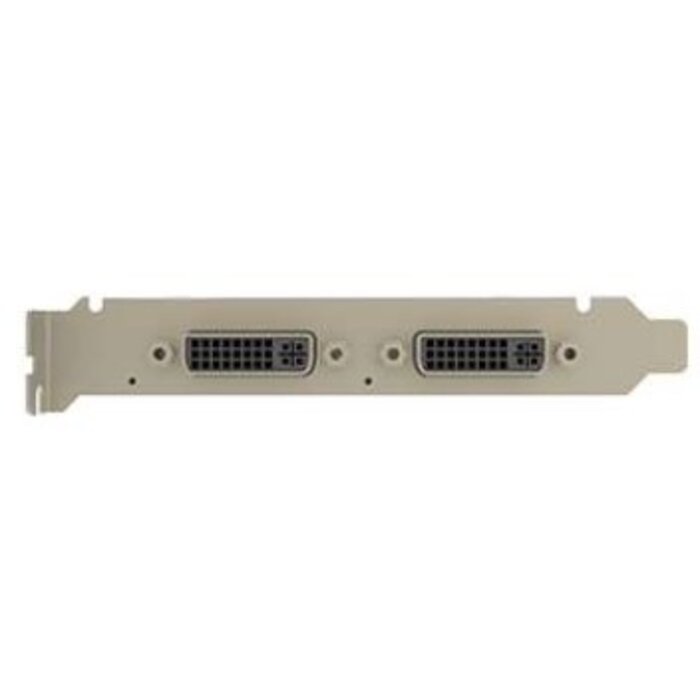

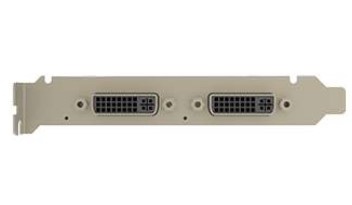

• Two independent DVI-I inputs
• DVI, HDMI (with audio), VGA or component per channel
• Up to 2048×2160 per channel
• Hardware image processing per channel
• PCIe Gen2 x4

How it works

The card fits in a free PCIe slot and registers in the operating system as a standard capture device. The on-board FPGA handles deinterlacing, scaling, colour space and frame rate conversion in hardware, leaving the computer's processor free for encoding, streaming or recording. Each channel can deliver several streams at once, for example in different resolutions for recording and streaming. Multiple cards can be used in one system.

Applications

Capturing two computer or presentation signals at once, medical and industrial applications, lecture capture with presenter and slides.

Limitations

No SDI and no 4K. Requires a PCIe x4 slot (or larger).
