LILIPUT - Lilliput 15.6 Inch 4K HDR Monitor with Swing Frame for Light Stand BM150-4KS-LP

Brand: Liliput
€1.319,00 (€1.090,08 Excl. tax)
Robust HDR 4K 15.6 inch monitor including mount for light stands in 19 inch flight case. With Quad View representation of 4 x Full HD...More information
+31 (0) 6 4436 1093
Great deals
Professional advice
Tailored Services
Product information

The Lilliput BM150-4KS-LP with Swivel Bracket is a 15.6 inch HDR Field Monitor with true 4K resolution (3840 x 2160 pixels) professional 8-bit FRC IPS panel for best image quality at 330 cd brightness.


According to experts, an 8-bit FRC panel is even better at coloring / grayscale than a pure 10-bit panel.


With almost 40cm picture diagonal, 3G HD-SDI, DVI and 4 x HDMI IN.


Operation with V-Mount batteries or by the supplied power supply.


Including flight case. This monitor also fits perfectly in any 19 "rack with 6U.



BM150-4KS - the successor of the legendary BM150-4K - now with HDR and 3D Lut and many, new display functions

The monitor can also be installed directly into a 19 inch rack if required. The monitor occupies 6 height unit (HE) and has 483mm in width - so it can be integrated into any rack.


Great field monitor with professional connectionsExactly the right device for those who have 7-10 inch monitors just too small screen diagonaland 23 or 28 inches are just too big. The Lilliput BM150-4KS offers a large 39.7cm (15.6 ") screen with a very sharp native resolution of 3840x2160 pixels. Thanks to the IPS technologythe display not only displays the colors well, but is also stable in viewing angles.



FEATURES


  • Professional video monitorfor directing, editing, studio or field use
    • Bright and sharp screen with 39.7cm screen size
    • True resolution of 3840 x 2160 pixels allows native preview of 4K
    • IPS technology provides good contrast and colors independent of viewing angle be displayed correctly
    • Accurate calibration via RGB control
    • Nearly full monitor control via the front panel
    • Video inputs for 4 x HDMI (1 x 4K or 4 x HD), VGA, DVI and HD-SDI / SDI In / Out
    • HDMI input 1 with HDMI 2.0 4K in 25/30/50/60 HZ possible
    • HDMI input 2-4 with HDMI 1.4 4K with 25/30 Hz are possible
    • SDI input with 3G-SDI FullHD (1920x1080) at 50/60 Hz
    • 8-bit FRC color processing (according to manufacturer) - better than 10-bit without FRC
    • SDI can be looped through (passthrough)
    • Aspect of the image can be set in the device (eg for equalization in anamorphic Cinemascope productions)
    • Connection for headphones via 3.5mm mini jack
    • VESA 100x100 holes for wall mount on the back
    • Operation from the mains socket or via rechargeable batteries (Sony V-Mount)
    • Tally connection via 9 pin SUB-D




Technische specificaties




    SPECIFICATIONS



    Screen size: 39,7cm (15.6 inches)
    Resolution: 3840 x 2160 pixels
    Screen type: partially reflected

    Color depth: 8-bit FRC (better 10-bit representation)

    Brightness: 330 cd / m²
    Contrast: 1000: 1
    Viewing angle: 176 ° Horizontal 176 ° Vertical

    Operating voltage: 12 to 24V
    Power consumption: 15 watts maximum

    Inputs: 1x HD-SDI, 4x HDMI, 1x SDI + audio, 1x VGA, 2 x audio RCA
    Outputs: 1x HD-SDI

    HDMI input 1 HDMI 2.0 4K in 25 / 30/50/60 HZ possible
    HDMI input 2-4 HDMI 1.4 4K with 25/30 Hz possible

    Full HD 1920x1080, HD1 1280x720 on all HDMI and SDI connections

    Dimensions (LxWxD): approx. 389 x 267 x 38mm / 524 x 305 x 170mm (with flight case)
    Weightapprox. 3.4kg / 12kg (with flight case)



In de doos




IN THE BOX



  •  19 inch rack Flightcase with lid Front and rear
  • Cover at the back with pocket for housing accessories

  • Lid on the front to accommodate the sun visor and / or protective screen

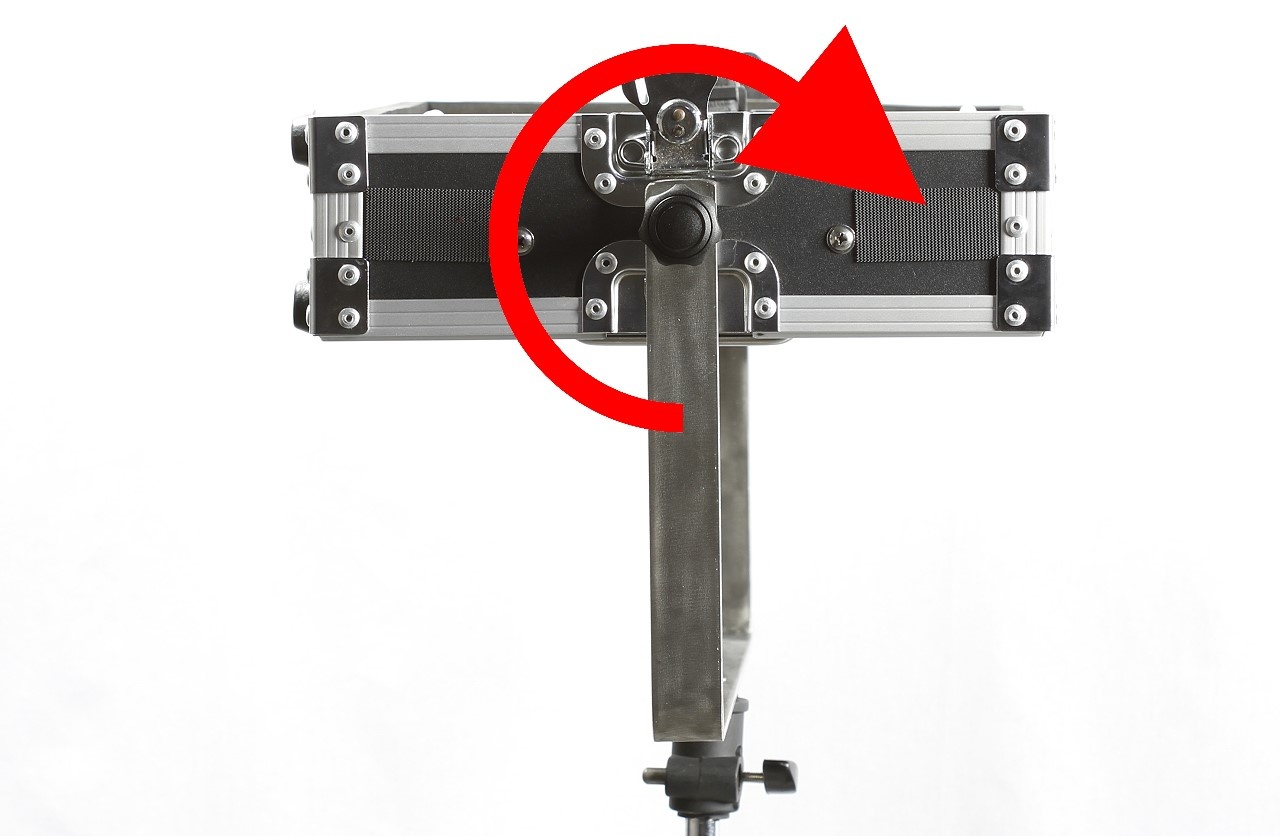

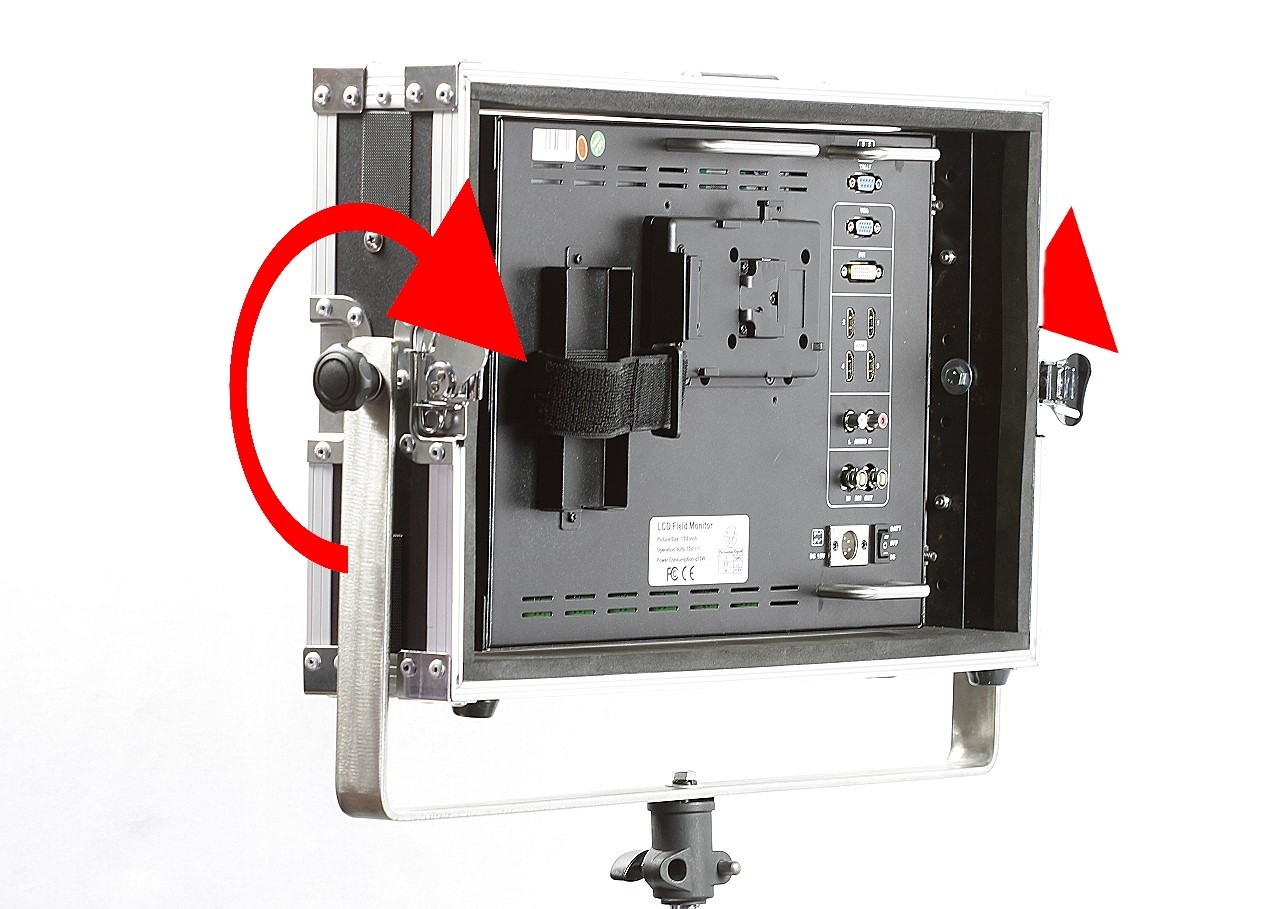

  • Completely mounted swivel frame with 16mm
    holder for light stands
  • Power supply, power cable, Powertap to XLR 4Pin cable
  • Tally plug (15 pin SubDfor soldering as a kit included
  • Stand for Operation as desktop monitor
  • Operating instructions
  • Screws for mounting the protective screen (pre-assembled)
  • Sun visor (Velcro attachment on the flight case)
