Lilliput BM150-12G - 15.6 inch 12G-SDI 4K monitor

The V-Mount cannot be used if a VESA mount is installed.

The Lilliput BM150-12G is a 15.6-inch field monitor with UHD resolution (3840 x 2160 pixels) and a professional 8-bit FRC IPS panel for the best image quality at 330 cd brightness.

According to experts, an 8-bit FRC panel displays colors/grayscale values even better than a pure 10-bit panel.

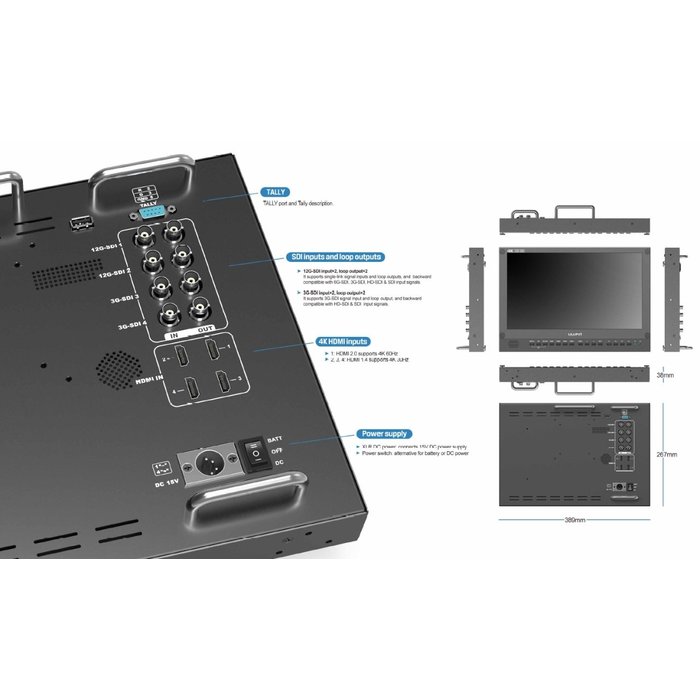

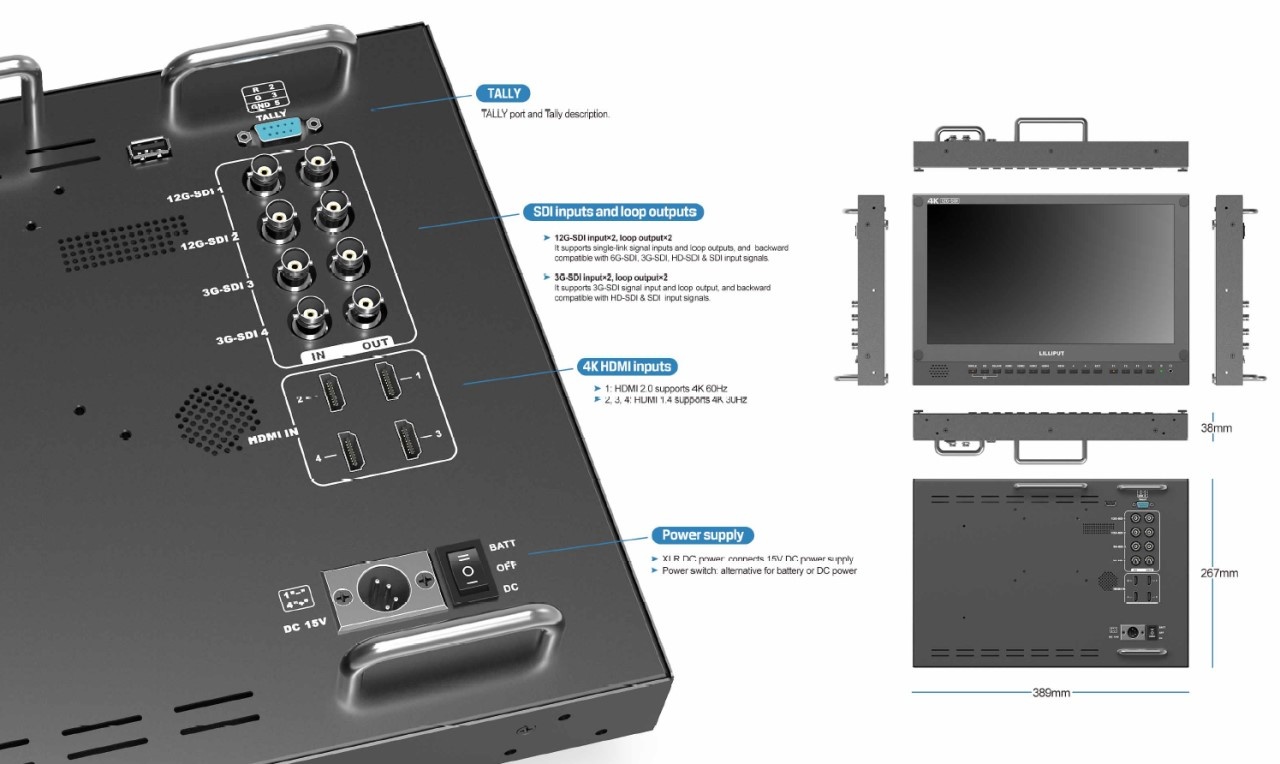

It features the following entrances and exits:

2 x BNC (12G-SDI) Input
2 x BNC (12G-SDI) Loop Output
2 x BNC (3G-SDI) Input
2 x BNC (3G-SDI) Loop Output
3 x HDMI 1.4 Input
1 x HDMI 2.0 Input

It is powered by V-Mount batteries or by the included power supply.

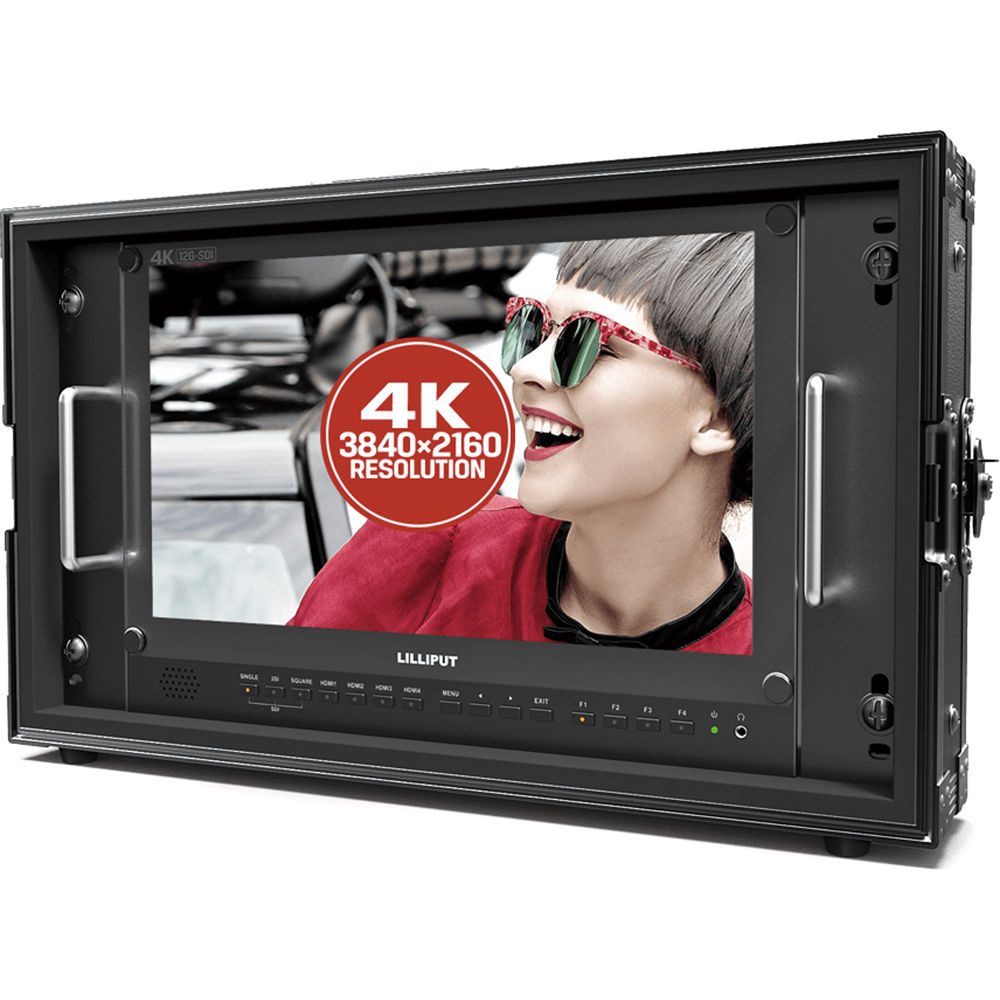

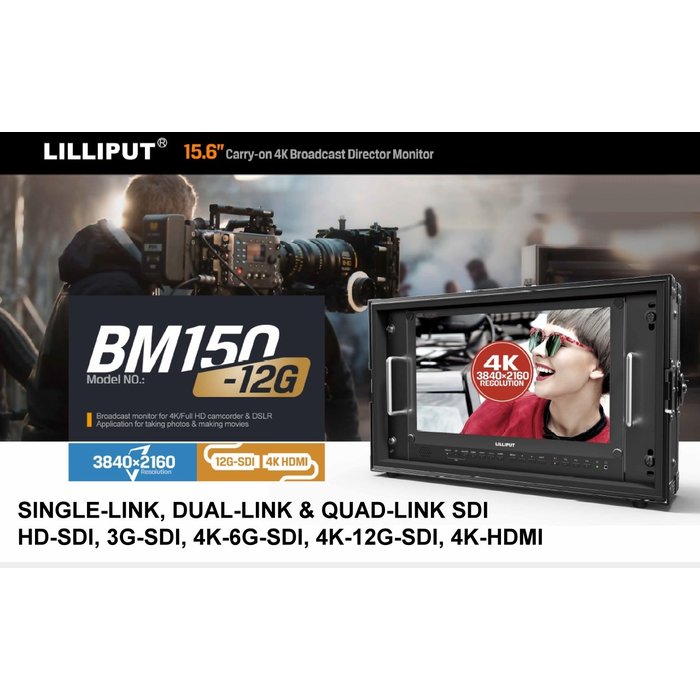

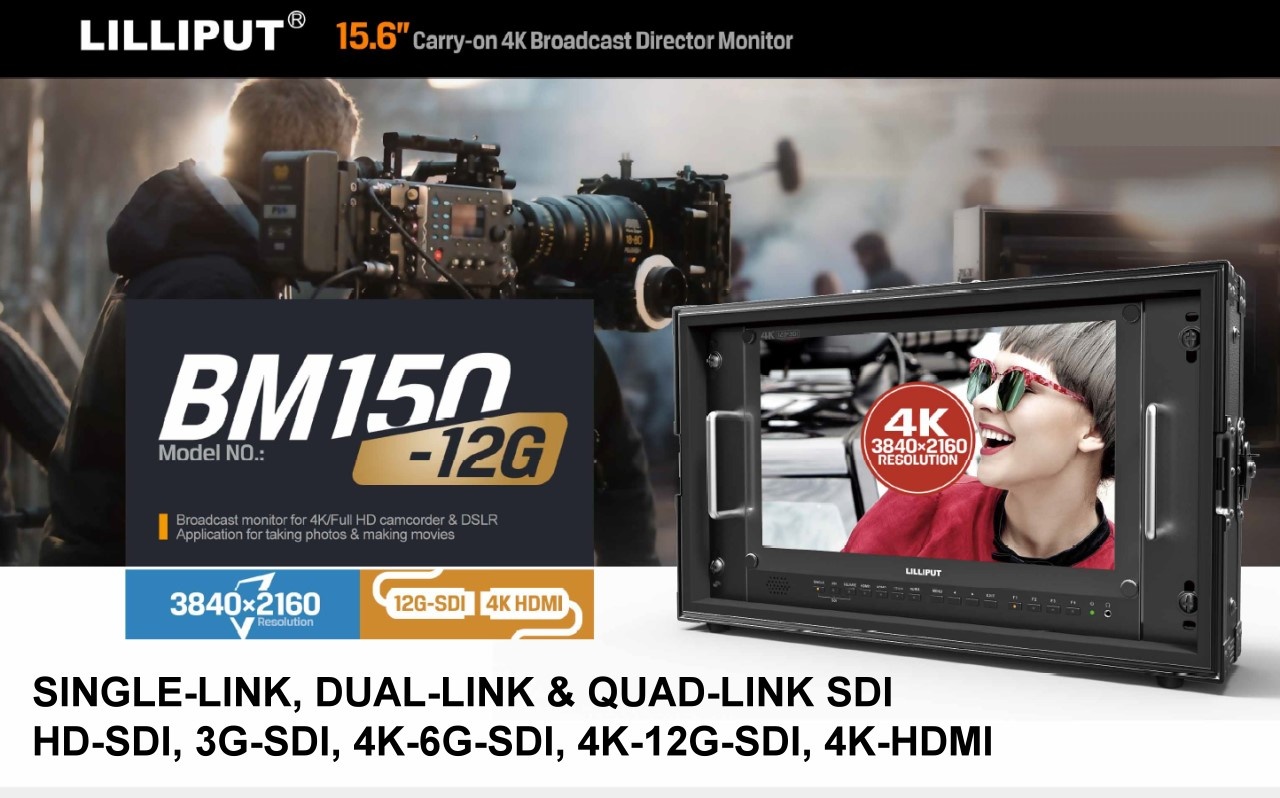

The monitor is delivered built into a flight case. This monitor can also be easily removed, allowing it to fit perfectly in any 19-inch rack with 6U clearance.

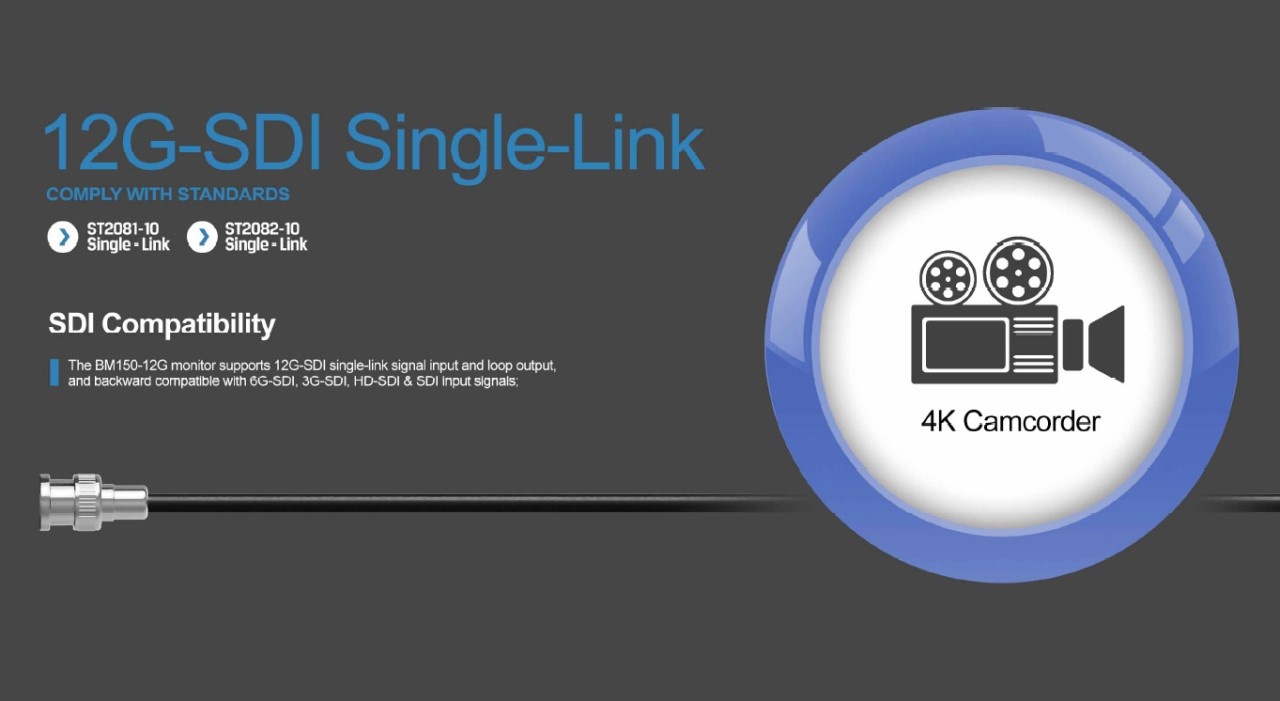

COMPATIBLE WITH DUAL CHANNEL (3G/6G) AND QUAD CHANNEL (3G) AS WITH SINGLE CHANNEL HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI.

***Optional screen protector available for a small extra charge! ****

*** The BM150-12G is supplied calibrated ***

Large field monitor with professional connections. The Lilliput BM150-12G offers a large screen diagonal of 39.7 cm (15.6 inches) with a very sharp native resolution of 3840x2160 pixels. Thanks to IPS technology, the screen not only displays colors well, but also has a viewing angle of 176 degrees horizontally and vertically.

Properties

- Professional video monitor for directing, editing, studio, or on location.

- Bright and sharp screen with a screen diagonal of 39.7 cm

- True 3840 x 2160 pixel resolution enables native 4K previews

- IPS technology ensures good contrast and accurate color reproduction, regardless of the viewing angle

- Precise calibration possible via RGB controller

- Virtually all monitor controls via buttons on the front

- Video inputs for 4 x HDMI (1 x 4K or 4 x HD), VGA, DVI and HD-SDI/SDI In/Out

- HDMI input 1 with HDMI 2.0 enables 4K at 25/30/50/60 Hz

- HDMI input 2-4 with HDMI 1.4, 4K at 25/30 Hz is possible

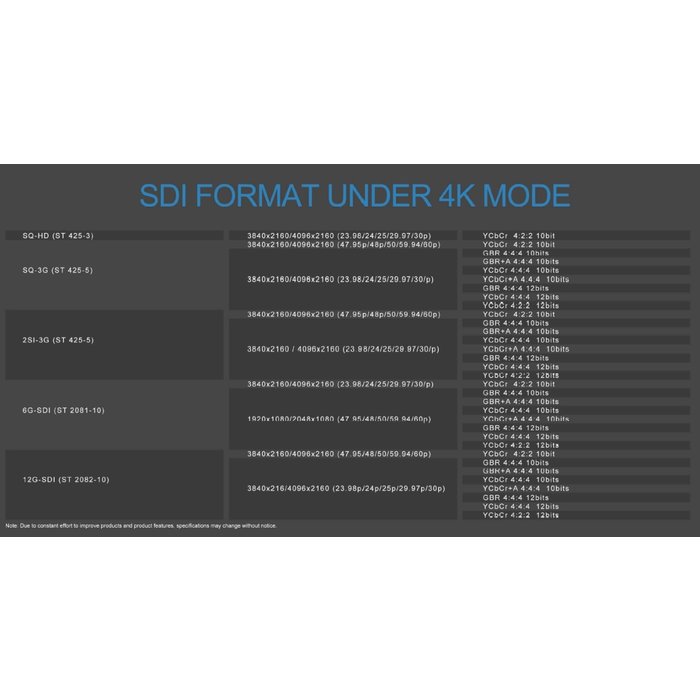

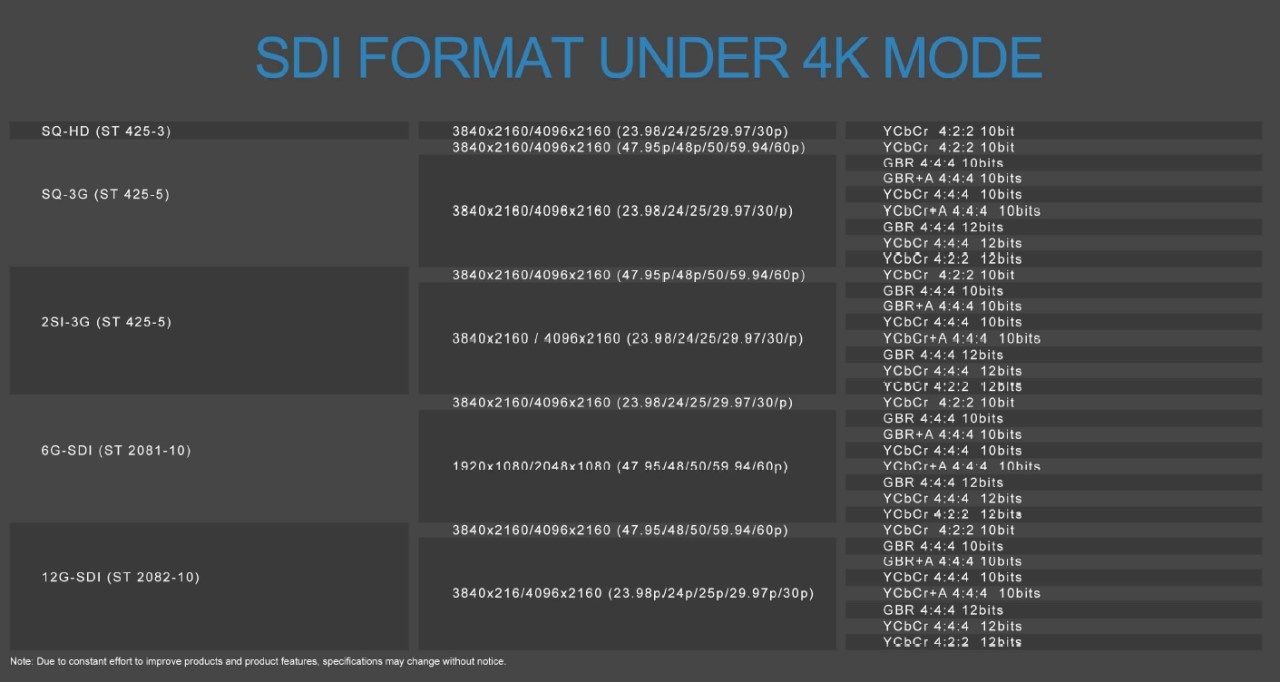

- 12G-SDI input 4K with 50/60 Hz

- 6G-SDI input 4K with 25/30 Hz

- 3G-SDI compatible Full HD (1920x1080) at 50/60 Hz

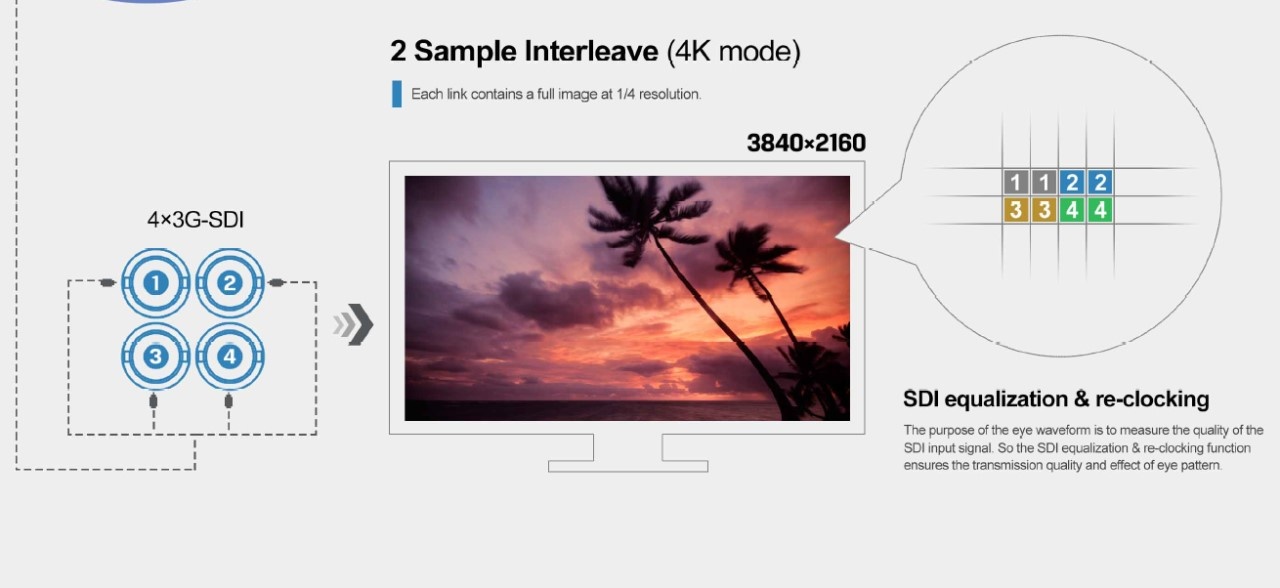

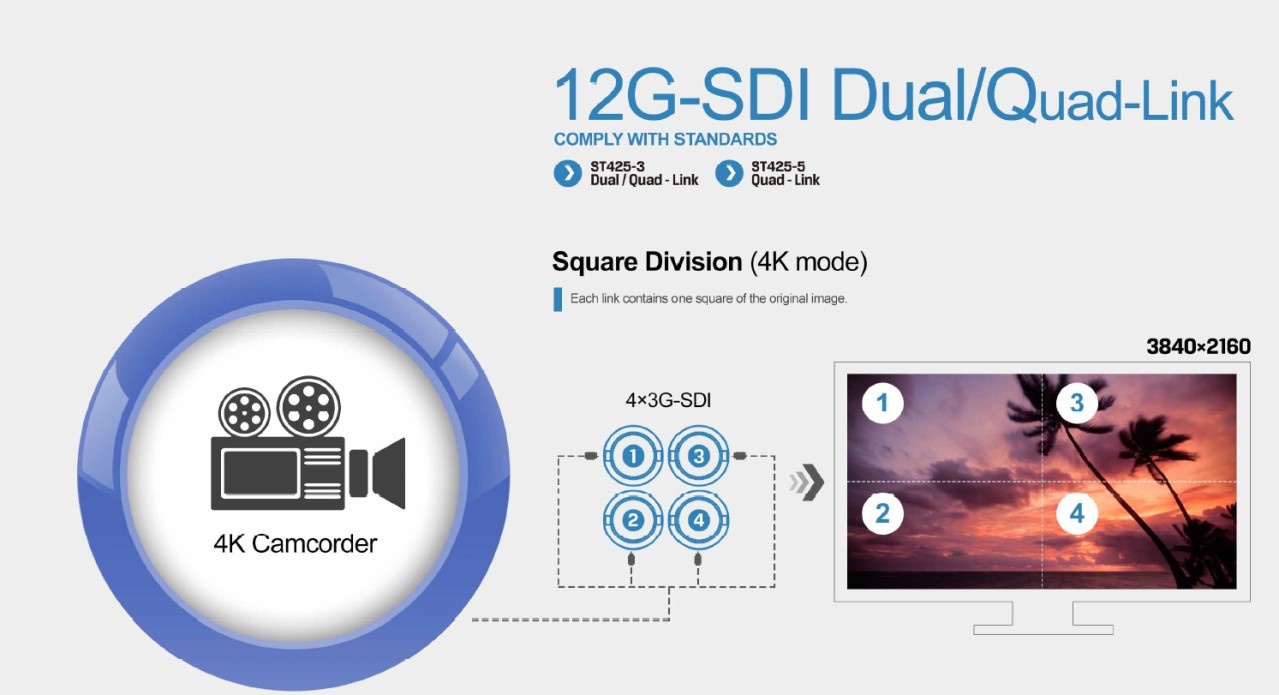

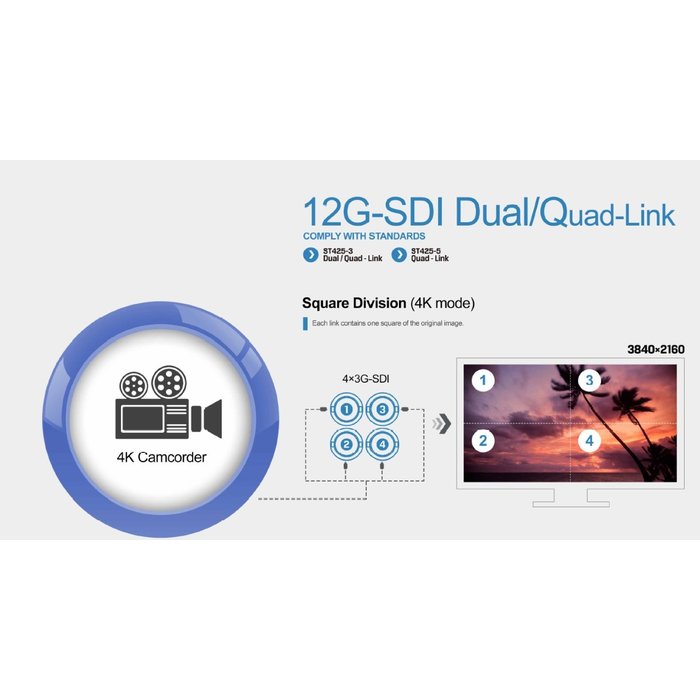

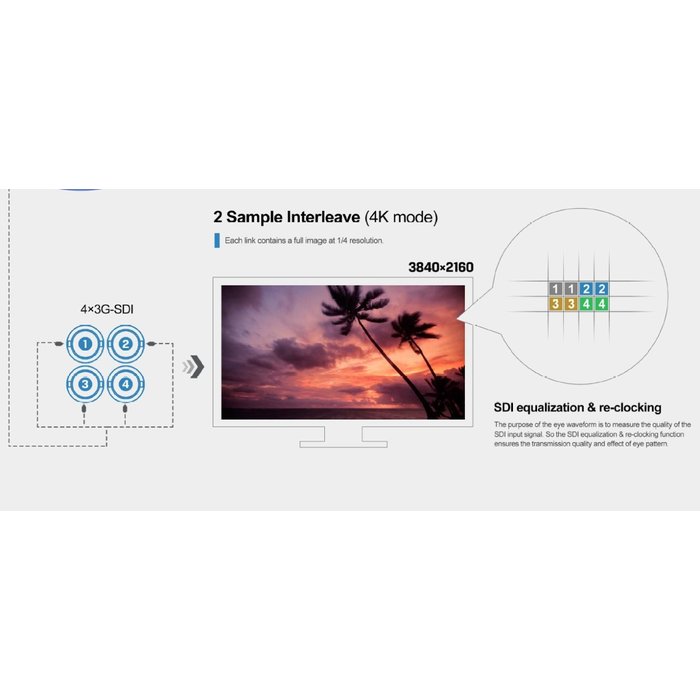

- Compatible with SDI with single, dual, and quad link

- 8-bit FRC color processing (according to the manufacturer) - better than 10-bit without FRC

- SDI can be passthrough

- Aspect ratio can be adjusted on the device (e.g. for equalization in anamorphic Cinemascope productions)

- Headphone connection via 3.5mm small jack

- VESA 100x100 screw holes for wall mounting on the back

- Mains power or rechargeable batteries (Sony V-Mount)

- Tally connection via 9-pin SUB-D

PLEASE NOTE: The 12G-SDI input supports resolutions up to 4K at 50/60 Hz. 4K resolutions are available on all HDMI inputs. HDMI input 1 supports 4K 50/60 Hz here, all others 25/30 Hz.

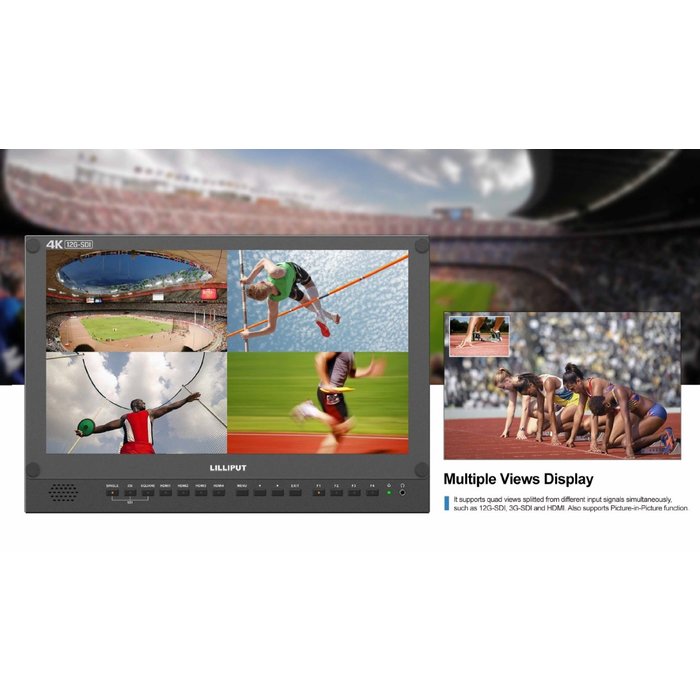

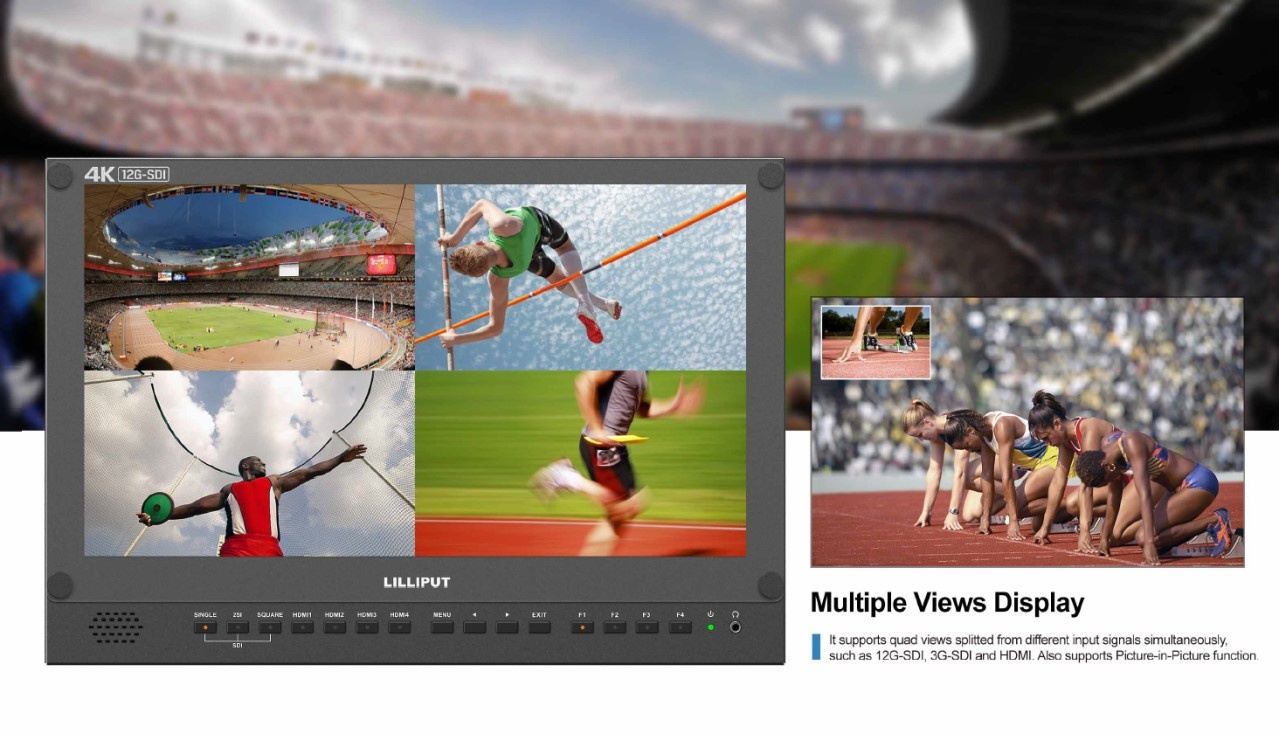

Display of the multiview:

- 1 input as full screen

- 2 inputs left / right

- 2 inputs top / bottom

- 2 inputs picture in picture

- 4 inputs Quadview

This device is cooled by a fan and may not be suitable for use in recording environments where silence is required.
