Kramer Network is an enterprise management platform that lets IT and AV professionals easily deploy, configure and manage an entire Pro AV installation from anywhere in the network, including Dante™ and 3rd party devices.
- Simple and Intuitive AV Routing — Complete centralized or distributed routing of virtual and / or physical matrixes.
- Quick and Efficient Device Management — With instant auto detect, status update, and configuration for any Kramer or Dante IP device on the network.
- Easily Trackable Device Firmware Management — Manage all FW versions, automatically receive new version notifications and execute updates from a centralized location with one click.
- Enhanced Security — With LDAP user authentication and advanced user management, enabling you to create different levels of access for different users.
- Simple and Powerful Maestro Room Automation — Intuitive user interface enables you to fully automate your meeting room elements. Configure lights, shades, devices and more to be activated by an extensive range of triggers, including scheduling, input/output connectivity, routing, and button pressing. By minimizing user intervention, Maestro room automation saves meeting prep time and minimizes human error before presentations.
- Detailed Site Topology — Easily drill down to visually examine a specific location.
- Convenient Video Preview — View live video from connected displays, right from the Kramer Network interface.
- Device Scan Across Subnets — Scan and discover devices across different subnets.

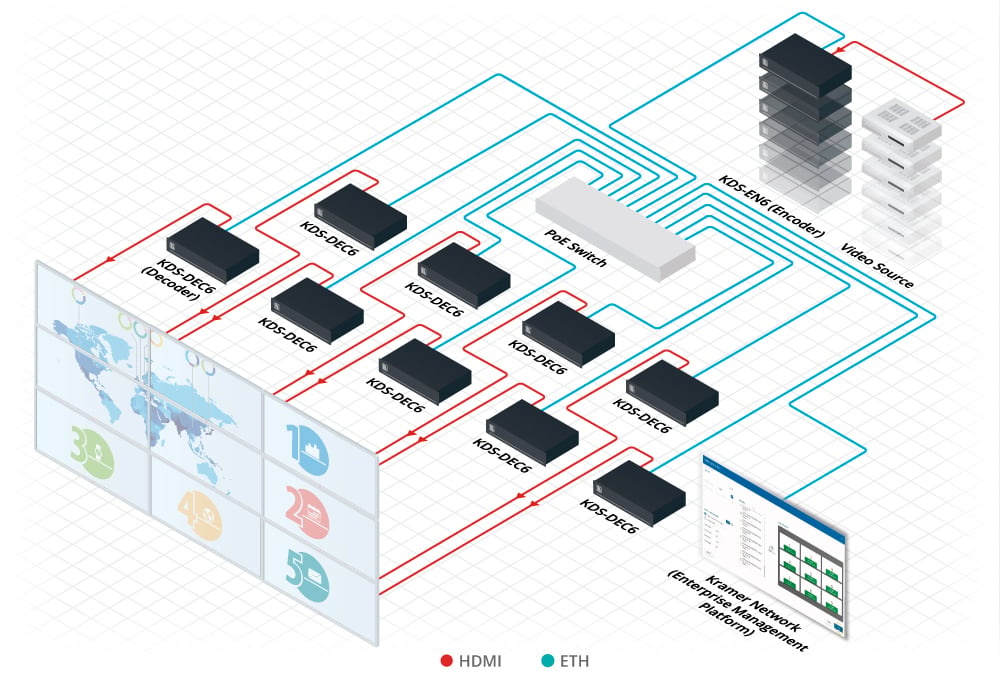

- Intuitive Video Wall Management — Select the monitor configuration that fits your requirements. Click the Identify button to display the position number of each video wall screen as an overlay on that screen.
- Kramer Control Integration — Send Kramer Network commands from Kramer Control to trigger Maestro room automation actions, for example, to activate scenarios.
- Live Alert and Response — Proactive notifications such as email and SMNP traps keep you informed of issues in your system.
- Fully Customizable Scripts — Increase the functionality of your system by creating custom scripts in almost any language to provide for the specific needs of a project.
- Constant System Optimization and Improvement — All system events are recorded in the logs, enabling reports to be generated to analyze past usability and plan future adaptation and optimization.
- Fast Initial Setup — Install and start using the platform in minutes with no need for programming.
- Integrated Room Scheduling and Management — synchronized with your Outlook.
- Multi–lingual Support.
- Online Help.
Top of Form
APPLICATIONS
- Meeting rooms across multiple buildings
- Education, university classrooms and lecture halls
- Digital signage with multiple AV sources to multiple displays
- Control rooms and broadcast
- Sports bars
VERIFIED SUPPORTED OPERATING SYSTEMS
- Windows 10 Pro / Enterprise, 64 bit
- Windows Server 2012 R2, 64 bit
- Windows Server 2016, 64 bit
- Windows Server 2019, 64 bit
CONFIGURATIONS
MODEL | DESCRIPTION |
KN–5D–LIC | Kramer Network platform — up to 5 devices |
KN–30D–LIC | Kramer Network platform — up to 30 devices |
KN–100D–LIC | Kramer Network platform — up to 100 devices |
KN–UPG–30D–LIC | Additional 30 devices for Kramer Network platform |
KN–UPG–100D–LIC | Additional 100 devices for Kramer Network platform |
KN–UNLTD–LIC | Kramer Network platform — unlimited devices |
KN–SWUPT–365–5D–SUB | Annual Software Updates Subscription for 5 Devices |
KN–SWUPT–365–30D–SUB | Annual Software Updates Subscription for 30 Devices |
KN–SWUPT–365–100D–SUB | Annual Software Updates Subscription for 100 Devices |
|
|
