Acme Video Solutions GO 4/4K Portable Live Production Solution

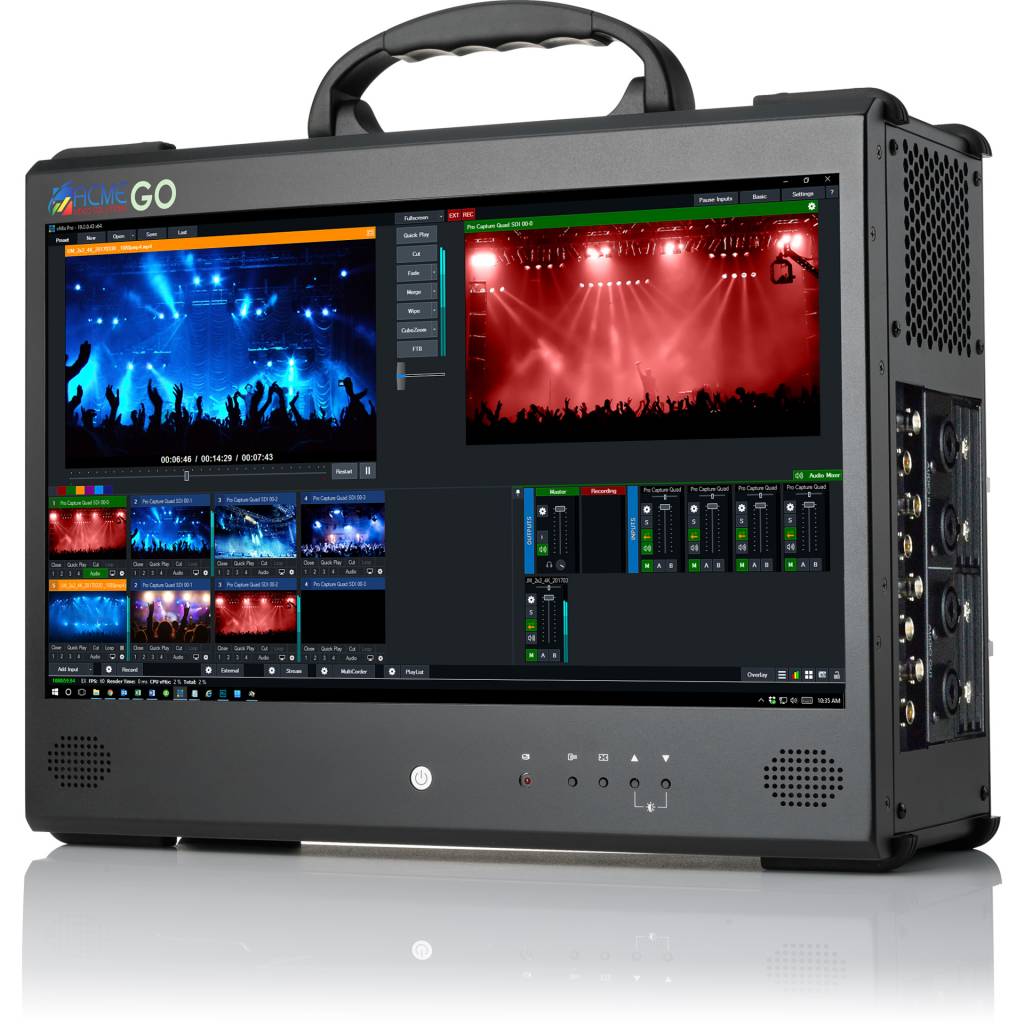

Acme Video Solutions GO 4/4K Portable Live Production Solution is a complete portable live production studio with built-in 17.3" LCD. Mix HD and 4K video sources including mixed resolutions and framerates, along with embedded and separate analog audio. Stream output live to the Web in RTMP, WMA, Flash, and other widely supported formats. , giving a producer the ability to re-edit later on.
The Windows-based switcher requires compatible, separately available, streaming and mixing software (either vMix, Wirecast, or LiveStudio). It comes equipped with a 4-port SDI I/O device, a 1-port Magewell 4K HDMI input device, plus a two-in / two-out XLR/TRS audio interface. Driving the software is an Intel Core i7 CPU along with an NVIDIA GTX 2060 6GB graphics card, 16GB of RAM, and a 250GB SSD drive. In addition to the built-in display, users can connect additional high-resolution displays via HDMI and DisplayPort outputs. This provides a multiview function, program monitoring, and easy access to other Windows applications. The workstation includes a keyboard and mouse for basic control. For portability, the system comes with a padded, wheeled transit case to conveniently store and transport.
Hardware Features
Built-In Display
A built-in display allows for a compact, portable rig on-site with the ability to add one or two additional LCD displays via DVI, HDMI, or DisplayPort for Multiviewer and other application access.
I/O Cards

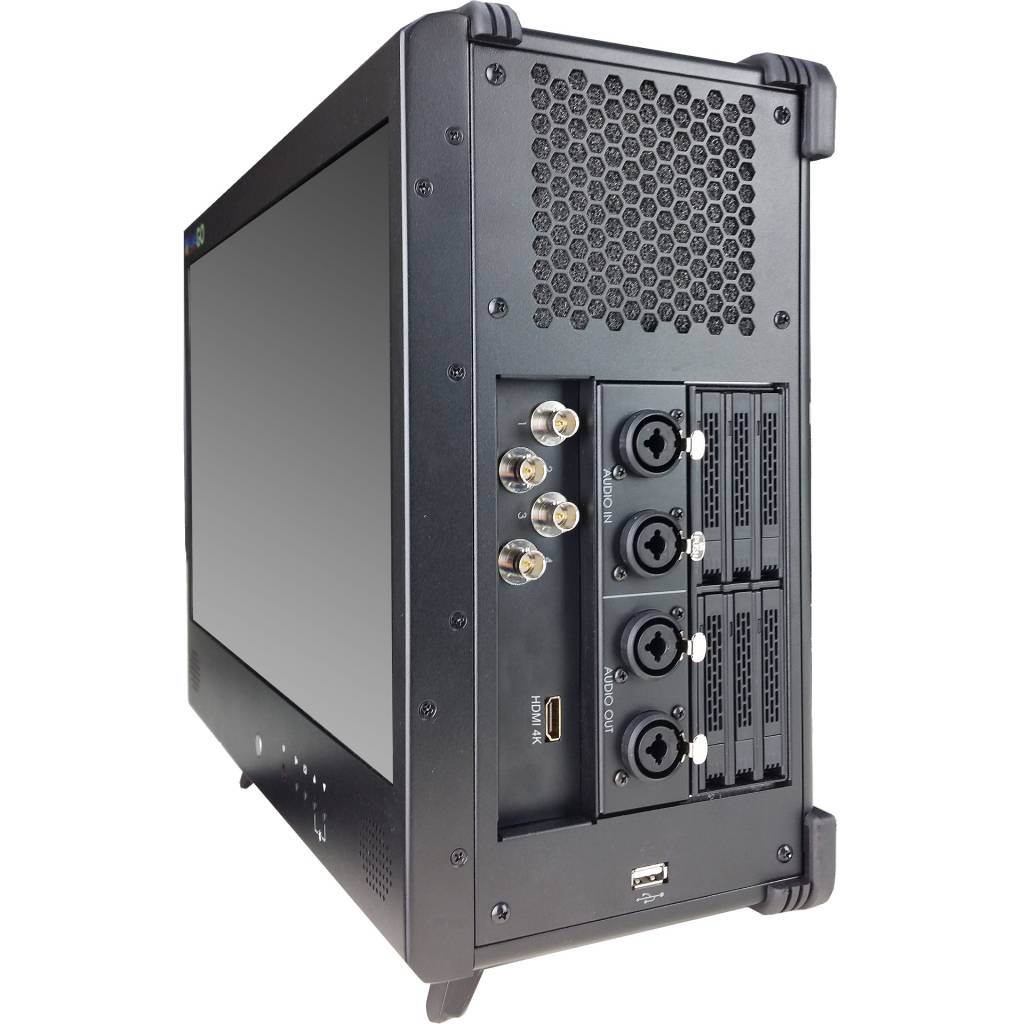

The Acme GO 4/4K is equipped with four HD-SDI inputs (up to two of which can be used as outputs instead) on an AJA capture card and a single 4K-capable HDMI input on a Magewell capture card allowing up to five live source. In addition to the 4K capabilities of the HDMI input, you can also group four SDI inputs together to provide another 4K input. Using two of the SDI ports as outputs, producers can send multiple high-resolution feeds. For example, a "dirty" version complete with overlays for broadcast, and a "clean" version for recording and reuse later. Alternatively, one output can be dedicated to connect a broadcast-grade preview monitor to supplement the GO's built-in screen.
Removable SSD Slots for ISO Recording
No heavy platter-based drives here; the GO 4/4K gives you four removable SSD storage slots enabling ISO recording of all inputs when fully populated—SSD drives are available separately. When you are finished, simply unplug the drives and easily move your footage to another machine for post-production or archiving.
Balanced XLR/TRS Audio I/O
A pair of balanced XLR/TRS combo jack inputs allow the switcher to bring in additional audio from professional sources, on top of up to 16 channels of embedded SDI audio. These inputs are accompanied by two XLR outputs for local monitoring. There is also an unbalanced 3.5mm audio input, and you can add external USB audio interfaces to increase the total number and type of available inputs.
- ACME VIDEO SOLUTIONS GO 4/4K Portable Live Production Solution
- Vinyl Roller Bag with Telescoping Handle and Wheels
- Logitech Wireless Keyboard and Mouse
- Power Cord
Computer | |
CPU | Intel i7 8700K |
GPU | Model: Nvidia GTX 2060 |
memory | 16GB DDR4 |
System Drive | Primary: 250GB SSD |
Media Storage | Not Included |
Display | |
size | 17.3" |
Brightness | 300cd/m² |
Contrast Ratio | 400:1 |
Response Time | 8 ms |
Connectivity | |
Inputs | Video: |
outputs | Video: |
Supported Formats | |
Supported Resolutions | 4096 x 2160p: 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B |
General | |
Dimensions | 14.1 x 16.5 x 7" / 35.8 x 41.9 x 17.8 cm |
weight | 22lb / 10kg |
