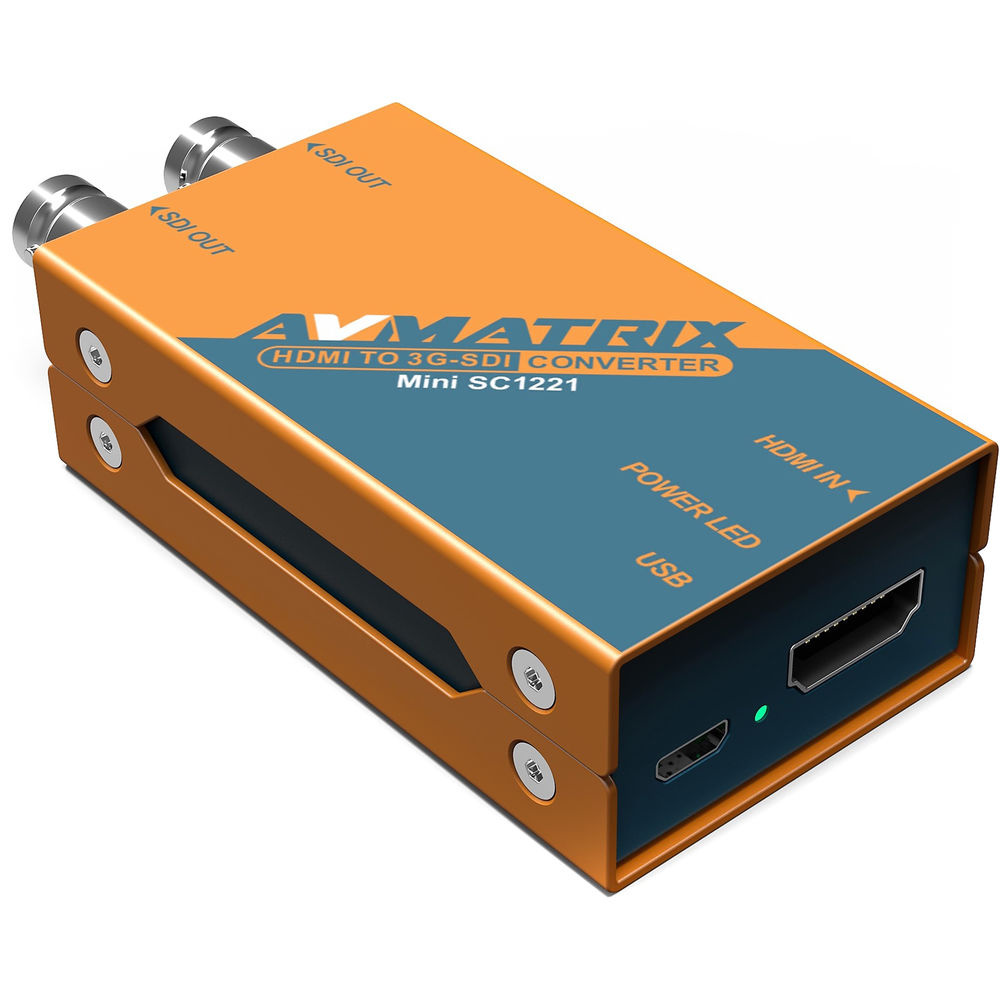

AVMATRIX MINI SC1221 HDMI to Dual 3G-SDI Video Converter

Features

The AVMATRIX SC1221 is a compact HDMI to dual 3G-SDI video converter that allows HDMI sources to be easily integrated into professional SDI workflows. The converter converts an HDMI signal into two simultaneous 3G-SDI outputs and supports video standards up to 1080p60 . Thanks to the dual SDI output, the same signal can be passed through simultaneously to, for example, a video mixer, recorder, and monitor.

The robust metal housing, low power consumption, and the ability to be powered via USB or a power bank make the SC1221 suitable for both fixed installations and mobile productions.

Key features

• Converts HDMI to two simultaneous 3G-SDI outputs

• Supports SD, HD, and 3G-SDI up to 1080p60

• Two simultaneous SDI outputs for distribution

• Automatic detection of HDMI video formats

• Compatible with SMPTE 259M, 292M, and 424M

• Works continuously without noticeable delay

• Power supply via Micro-USB

• Compact metal design

• Includes mounting bracket

• Suitable for 24/7 use

Operation

The SC1221 receives an HDMI signal and converts it in real time into two identical SDI outputs. This allows a single HDMI source to be easily connected to professional SDI equipment such as video mixers, recorders, matrix switches, or broadcast monitors.

The converter automatically detects the incoming HDMI resolution and converts it to a compatible SDI signal without noticeable delay. Because both SDI outputs are active simultaneously, the same video signal can easily be distributed to multiple devices without additional distribution amplifiers. The converter is powered via the Micro-USB connection and can therefore also be easily used with a USB power supply or power bank.

Application

The AVMATRIX SC1221 is suitable for:

• Broadcast studios

• Livestreams

• Video directing

• Presentations

• Conferences

• Church services

• Camera and recorder integration

• HDMI to SDI conversion

• SDI signal distribution

• Mobile video productions

Thanks to the dual SDI output, the converter is particularly suitable when a single HDMI signal needs to be sent simultaneously to multiple professional devices.

Limits

Although the SC1221 is a reliable HDMI to SDI converter, there are a few points to consider:

• Converts only from HDMI to SDI ; SDI to HDMI is not supported.

• Maximum resolution is 1080p60 ; UHD, 4K, and 12G-SDI signals are not supported.

• There is no HDMI loop output available.

• The converter does not have a scaler or frame rate converter; the output signal follows the incoming HDMI format.

• No support for HDR, LUTs, or image processing.

• No network, streaming, or USB video functionality is available.
