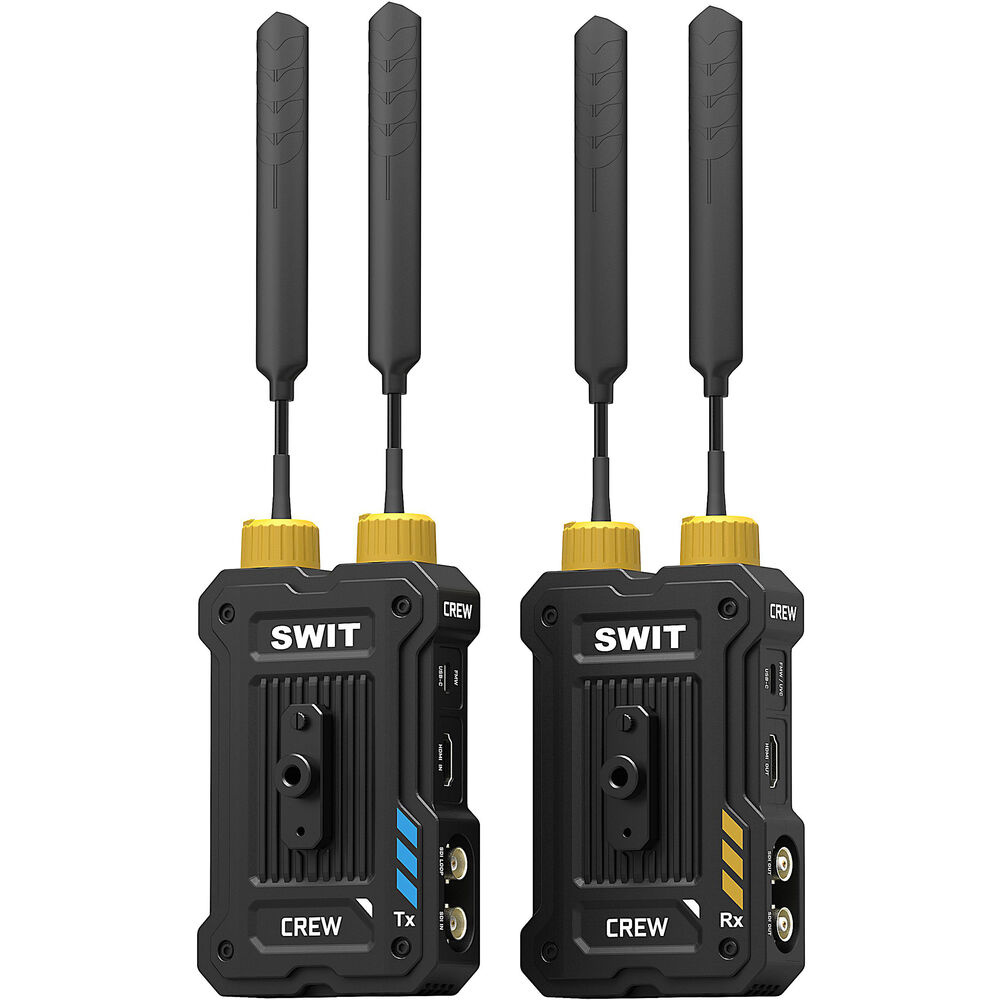

SWIT CREW 3G-SDI/HDMI/USB-C Transmitter Set (1200 m)

Watch video from up to 1200 meters away with the SWIT CREW 3G-SDI/HDMI/USB-C wireless video transmission system. This set includes one transmitter and one receiver, transmitting low-latency 1080p60 video with built-in audio over a consistent RF connection for crystal-clear viewing. It supports HDMI and 3G-SDI input and output, as well as UVC output for connecting to a laptop for streaming or recording.

1.2km long-range wireless video

The CREW system transmits using advanced H.265 video compression and optimized RF power, enabling a transmission range of up to 1200 m.

The TX/RX set delivers transmission stability using the license-free 5.1 to 5.9 GHz RF signal range (no WiFi) using the KUWI2.0 professional chip, even in the most complex environments.

Professional production applications

The CREW wireless system is designed for stable video for productions such as live sports, film sets, and high-quality broadcasts. Seamless, real-time transmission with minimal latency and no signal loss offers productions flexibility for studio and on-location workflows.

Low latency and visually lossless video

The CREW series wireless transmission uses H.265 encoding, bit rates up to 26.8 Mbps, and is visually lossless compared to wired video.

The ultra-low latency of 32ms provides lossless video performance suitable for professional wireless follow focus, and the latency is consistent regardless of environmental interference.

1 transmitter to 4 receivers multicast

The CREW system supports one transmitter to up to four receivers with stable multicast transmission, regardless of distance, latency, or video quality for film crew applications. All CREW TX and RX units are fully compatible with each other for multicast.

Connections

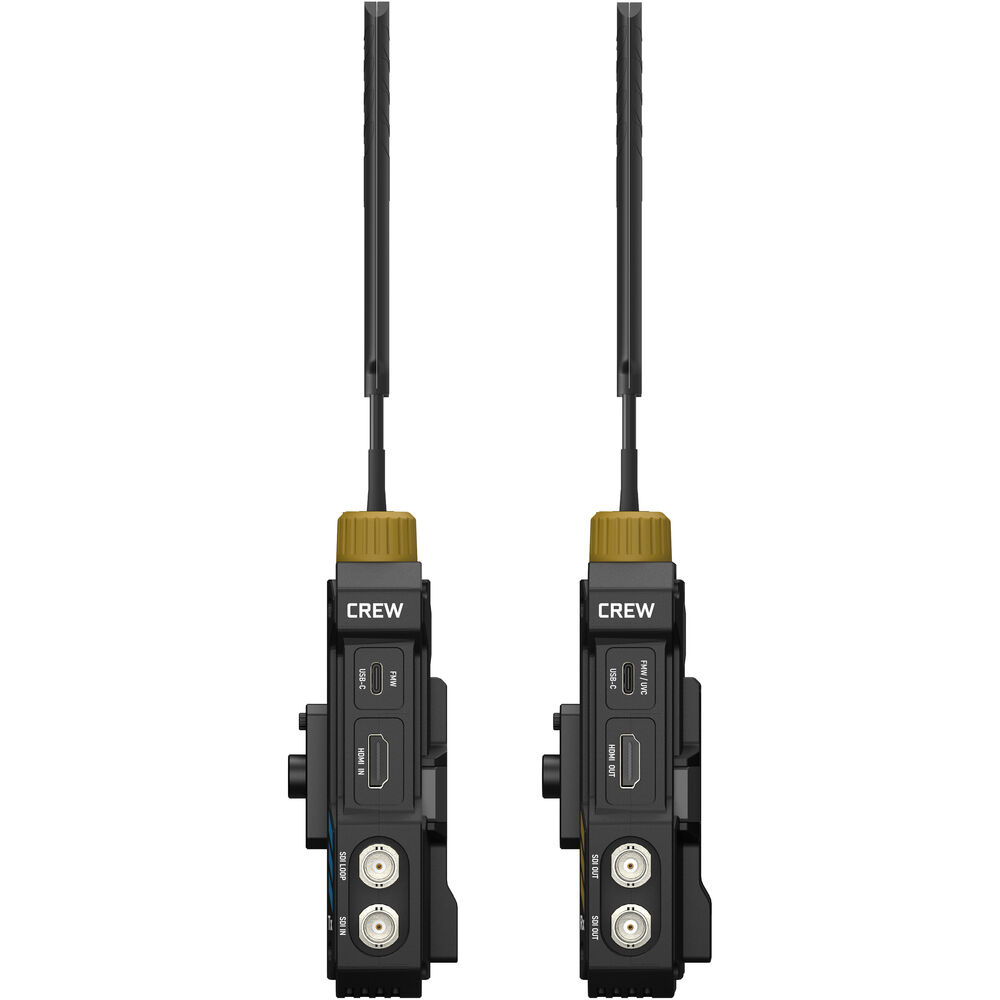

The CREW transmitter has one 3G-SDI input and a loop output for local monitoring, as well as one HDMI input. The receiver has two 3G-SDI outputs and one HDMI output. All RX interfaces can output simultaneously.

The CREW wireless receiver also features a USB-C output that can be connected to a macOS or Windows computer for livestreaming productions or 1080p 50/60 video recording, without the need for special drivers or installation software. You can also monitor via a wired connection to the CREW receiver, using a smartphone or tablet to monitor the camera feed instead of a professional video monitor.

Nutritional options

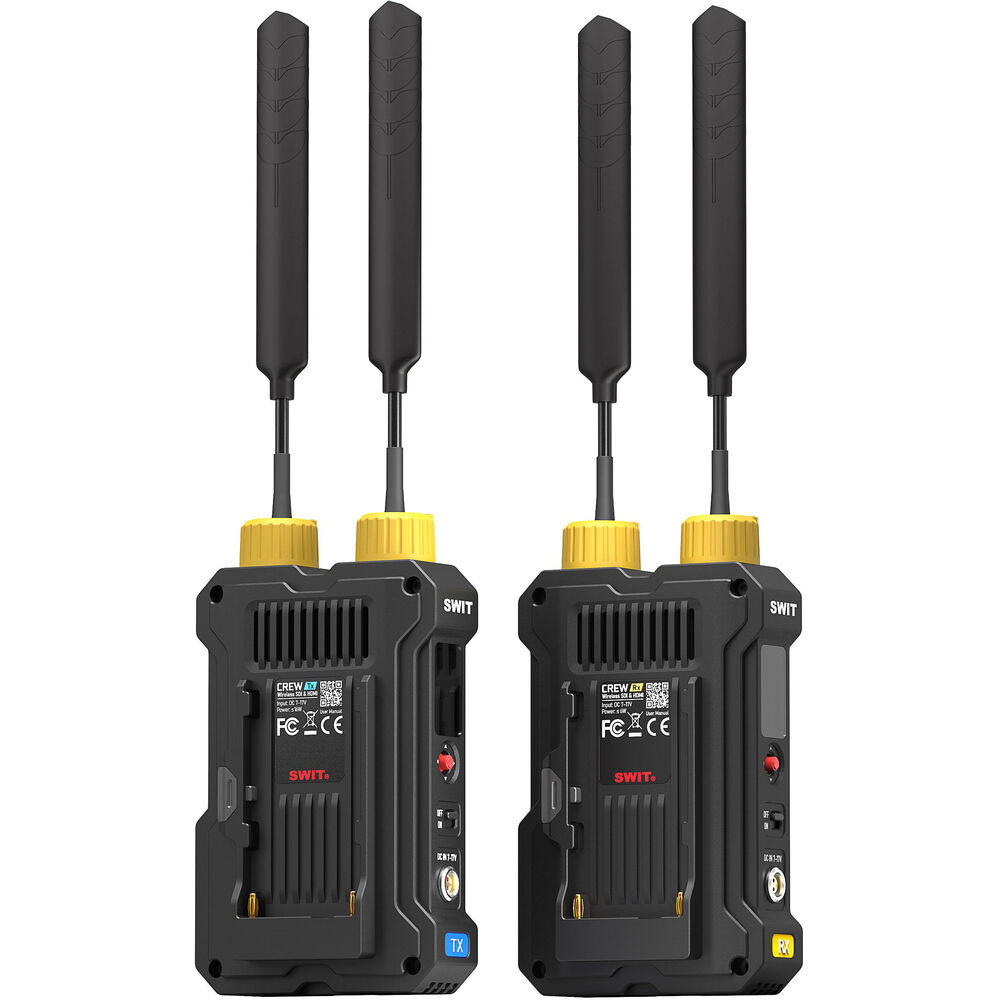

The CREW wireless can be powered by an L-series/NP-F battery or via a D-Tap to 2-pin LEMO cable included in the box. You can also easily power the CREW via the USB-C port.

Additional details

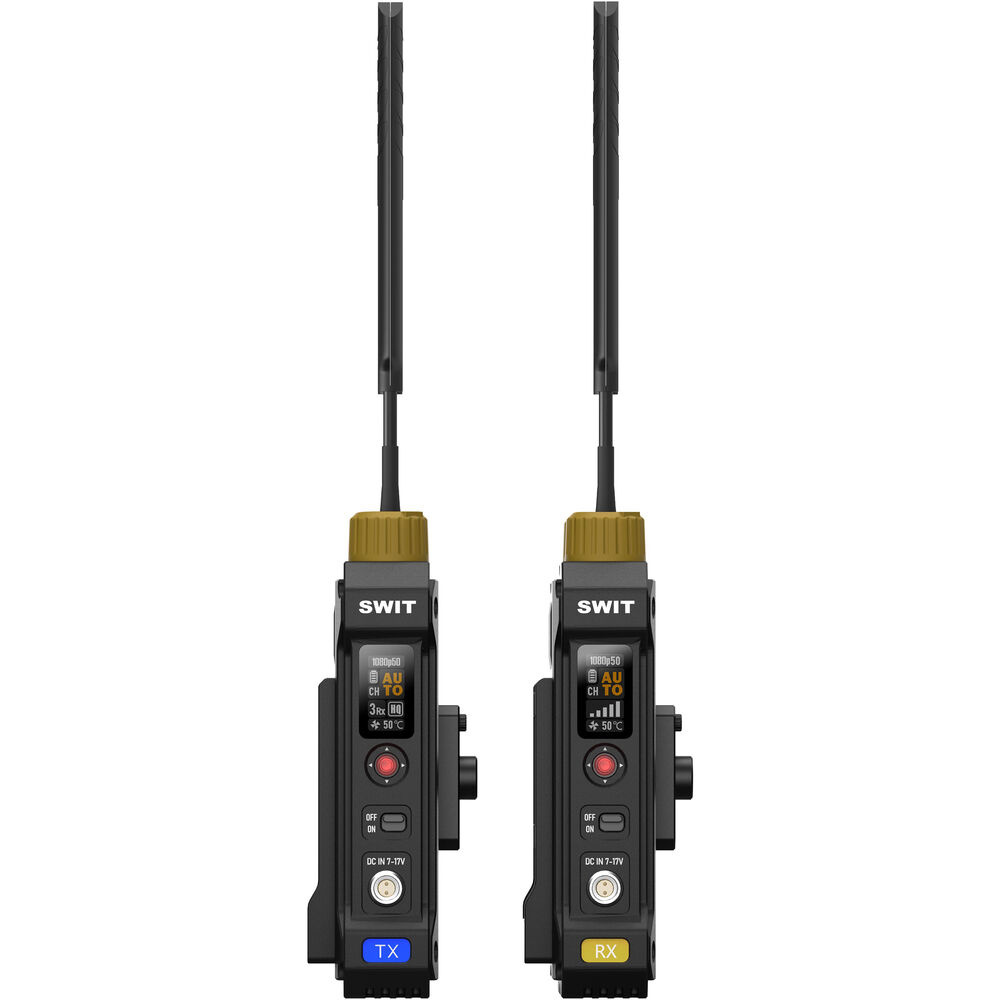

High Bright 450 cd/m² color OLED display

Sends SDI-embedded metadata from cinema cameras for DIT live grading, recording, and camera information management

Sends SDI embedded timecode and camera start/stop trigger

Double encryption protection: KUWI chip with proprietary RF and AES-256

Four color codes are included that can be placed on the antennas to distinguish TX/RX link groups

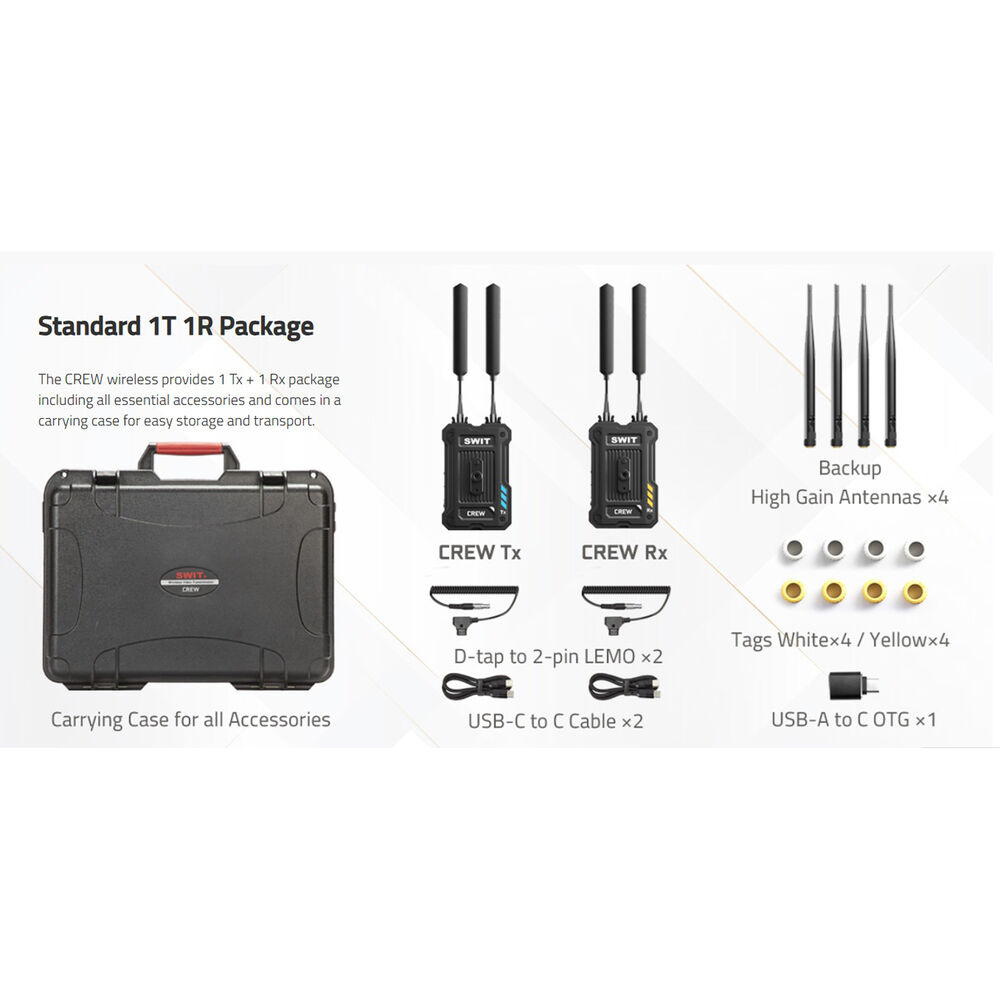

Includes carrying bag
