FieldCast Power Panel One



Panel box for Blackmagic Design Studio Converter: connects the FieldCast Hybrid Cable to ATEM Studio Converter and FieldCast Power Box.



The hybrid hub for Studio Converter

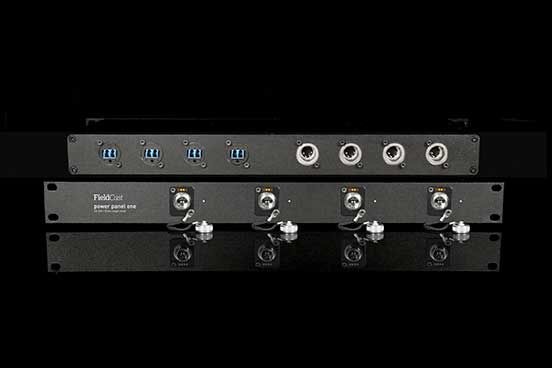

FieldCast Power Panel One is a 19" 1RU panel box, on the frontside equipped with four FieldCast 2Core SM Hybrid Chassis Connectors to connect to up to four FieldCast Hybrid Main Cables.



The back is equipped with four LC Duplex connectors to patch to up to four LC SFPs in the ATEM Studio Converter. In addition FieldCast Power Panel One is provided with four XLR connectors, ideal for connecting to  FieldCast Power Box for 24V power.



Mount it, plug it in and be ready to go fiber the sturdy way



FieldCast Power Panel One is developed to properly and sturdily patch FieldCast Hybrid Cables to ATEM Studio Converter, ATEM Talkback Converter 4K or any other device using LC single mode connectivity while getting current from FieldCast Power Box to power cameras or any other LC single mode equipment on long distance.



FieldCast Power Panel One is a panel box, 1 rack unit in height, which can be implemented in a 19” rack nearby your Studio Converter and FieldCast Power Box.



Four FieldCast 2Core SM Hybrid Chassis Connectors are mounted on the frontside of the FieldCast Power Panel One; so you can connect to up to four FieldCast Hybrid Main Cables coming out of cameras or other equipment .

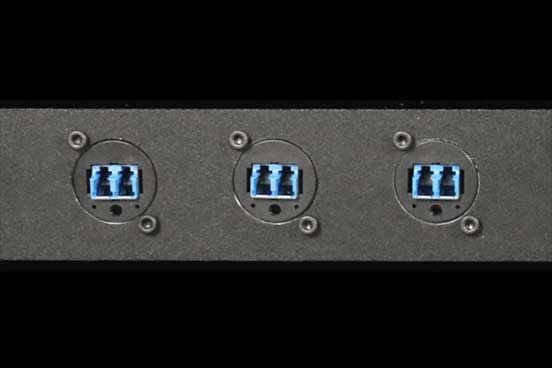

Built-in on the backside of the FieldCast Power Panel One are four LC Duplex and four XLR connections; with standard LC Duplex patch cables you can connect to the SFPs in ATEM Studio/Talkback 4K Converter; with standard XLR cables you can patch to FieldCast Power Box and feed each FieldCast Hybrid Main Cable with 24V power. Patch cables are not by default included in FieldCast Power Panel One.



Features



  • Robust 19" rack mount panel box, steel with black finish, 1RU in height, to be mounted in between Blackmagic Design Studio / Talkback 4K Converter™ and FieldCast Power Box.

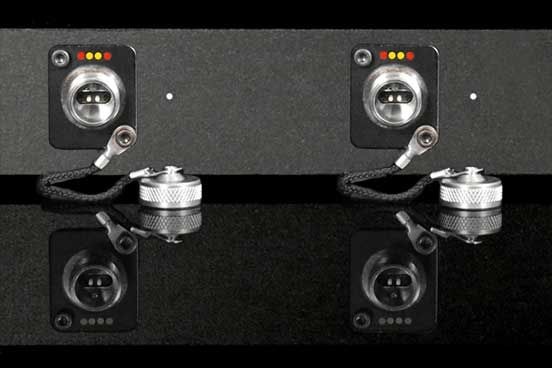

  • Four FieldCast™ 2Core SM Hybrid Chassis Connectors on the frontside: to connect easily four FieldCast 2Core SM Hybrid Main Cables.
  • Four built-in LC Duplex connections on the backside: with standard LC Duplex patch cables you can connect seamlessly to the SFPs in Blackmagic Design ATEM Studio / Talkback Converter, and without any risk or any hassle!

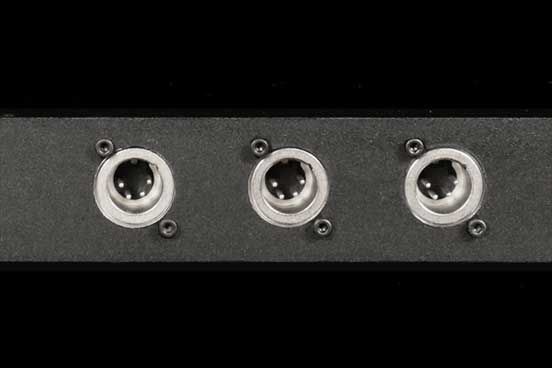

  • Four built-in XLR connections on the backside: with standard XLR patch cables you can connect to FieldCast Power Box and feed each FieldCast Hybrid Main Cable with 24V power.
  • FieldCast color coding on all four connectors for easy identification.
  • Does not change anything to the functionality of Studio or Talkback Converter, but simply is a safe and sound bridge from the vulnerable LC connections to the robust FieldCast connections: now it's safe and simple to go fiber and have power over fiber as well!



Specifications



  • 1.8mm. steel panel with rounded edges and black paint finish
  • standard 1RU panel size, 7 cm depth
  • four D-size (24 mm.) cutouts
  • horizontal punch spacing 105 mm
  • four FieldCast 2Core Hybrid Chassis Connectors SM (single mode)
  • four LC Duplex connections on the back
  • four XLR connections on the back for power
  • weight 1.21 kg
  • product code: br008
