FieldCast Power Box One

Brand: Fieldcast
  • Supplier stock, 1 - 3 business days
€609,00 (€503,31 Excl. tax)
24V DC 300W power supply...More information
+31 (0) 316 294 700
Great deals
Professional advice
Tailored Services
Product information

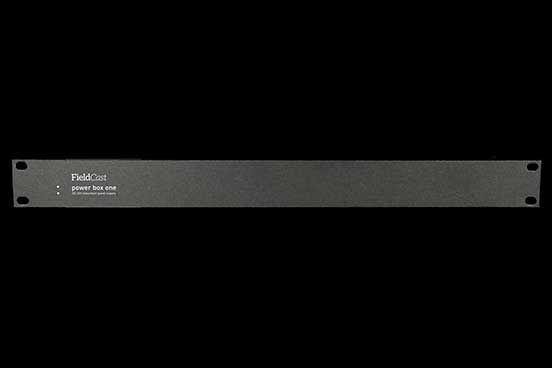

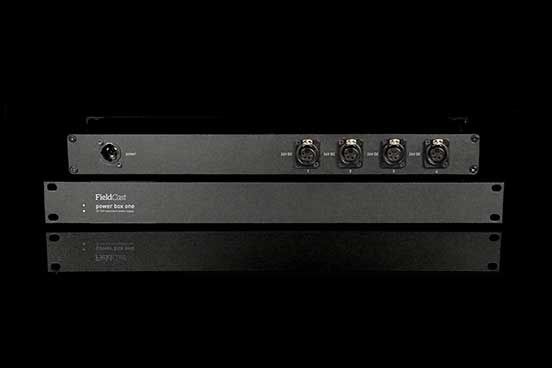

FieldCast Power Box One



24V DC 300W redundant power supply, 1RU: connects to up to four FieldCast Hybrid Main Cables.



The power supply to power remotely



FieldCast Power Box One is a 19" 1RU box with 2x 24V power supplies in the box, of which one is redundant. So if one power supply falls out, the other one takes over.



FieldCast Power Box One has 4 XLR connections built-in, so you can power up to 4 cameras or any other SDI or optical fiber equipment in the field through FieldCast Hybrid Main Cables.



Mount it, plug it in and be ready to go with power over fiber



FieldCast Power Box One is developed to power cameras from a distance so that the camera man is freely to move in the field without having to carry lots of cables and batteries as all camera data plus power is going over one FieldCast Hybrid Main Cable. FieldCast Power Box One is a one rack mount unit typically implemented near FieldCast Power Panel. With XLR patch cables, not by default included in FieldCast Power Box One, one can connect FieldCast Power Box One with  FieldCast Power Panel, and power up to 4 cameras or any other SDI or fiber optic equipment over fiber.



Features



  • Robust 19" rack mount box, steel with black finish, 1RU in height, to be mounted up or below FieldCast Power Panel.



  • Features two 24V 150W power supplies of which one is redundant. So if one power supply falls out, the other one takes over.

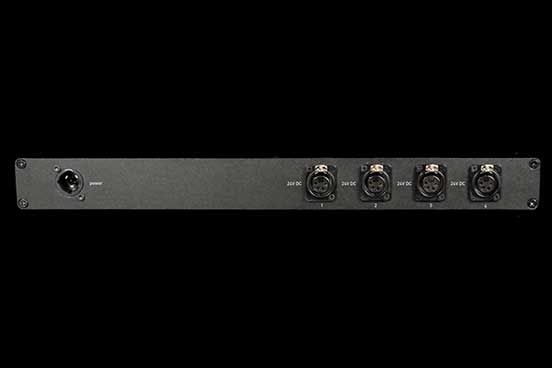

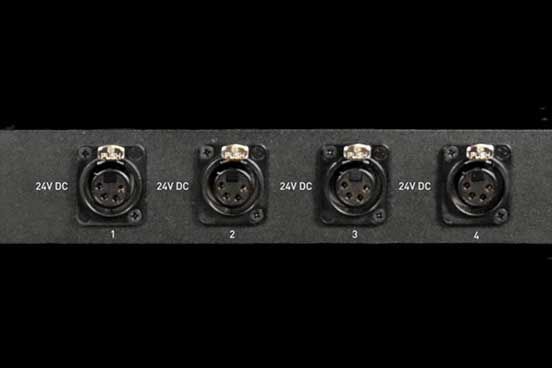

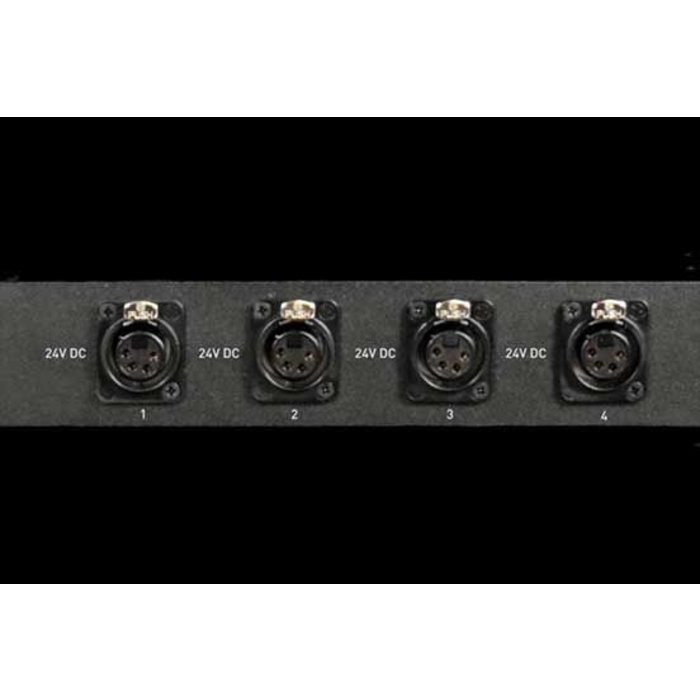

  • Features four built-in XLR connections: with standard XLR patch cables you can connect to FieldCast Power Panel and feed each FieldCast Hybrid Main Cable with 24V power.



Specifications



  • 1.8mm. steel panel with rounded edges and black paint finish
  • standard 1RU panel size with 15cm depth
  • four D-size (24 mm.) cutouts
  • 2x 24V 150W power supplies
  • weight 2.08 kg
  • product code: br013
