DVTec Eng Rig Pro

Features

The DVTEC EngRig Pro Support is a professional, spring-loaded camera mount specifically developed for ENG and broadcast cameras. The system mounts onto a standard 15mm rod system and shifts the weight of the camera from the shoulders and arms to the hips. This makes prolonged filming more comfortable and enables more stable footage during movement.

The active suspension supports the camera during operation and significantly reduces fatigue during long shooting days.

• Shifts camera weight from shoulders to hips

• Active suspension for extra stability during movement

• Compatible with standard 15mm rod systems

• Suitable for ENG and broadcast cameras

• Adjustable spring tension for different camera weights

• Supports camera systems up to approximately 12 kg

• Lockable horizontal movement

• Quick click system for tool-free assembly

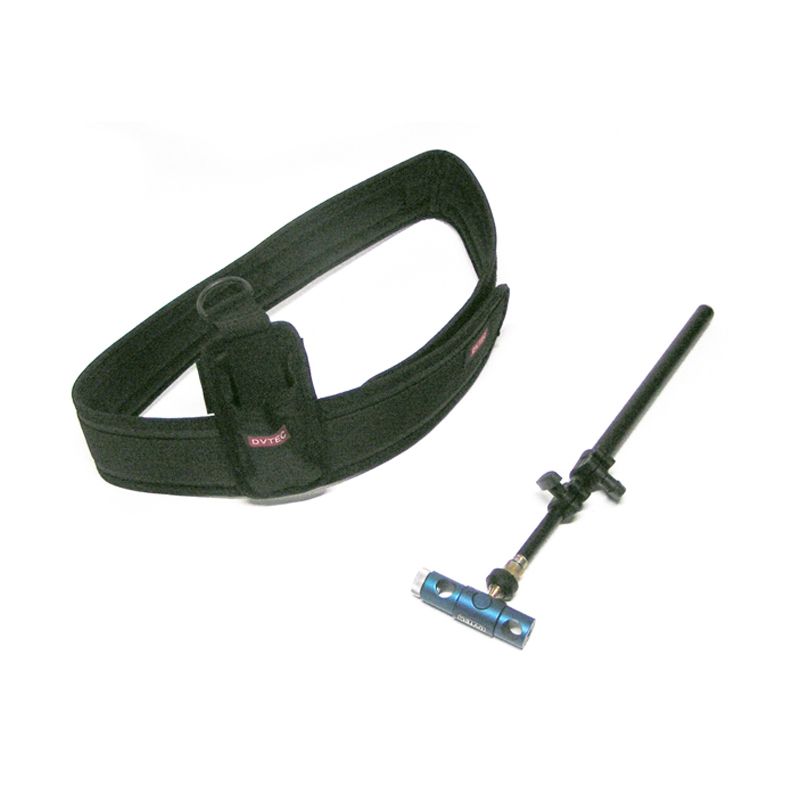

• Includes hip belt, holster, and transport bag

Operation

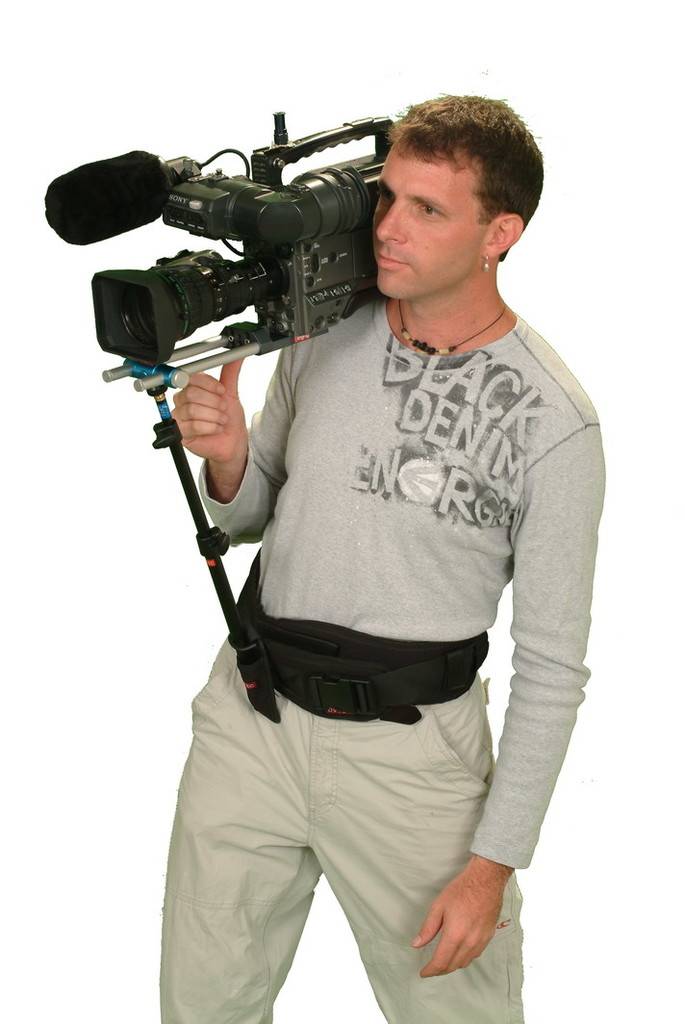

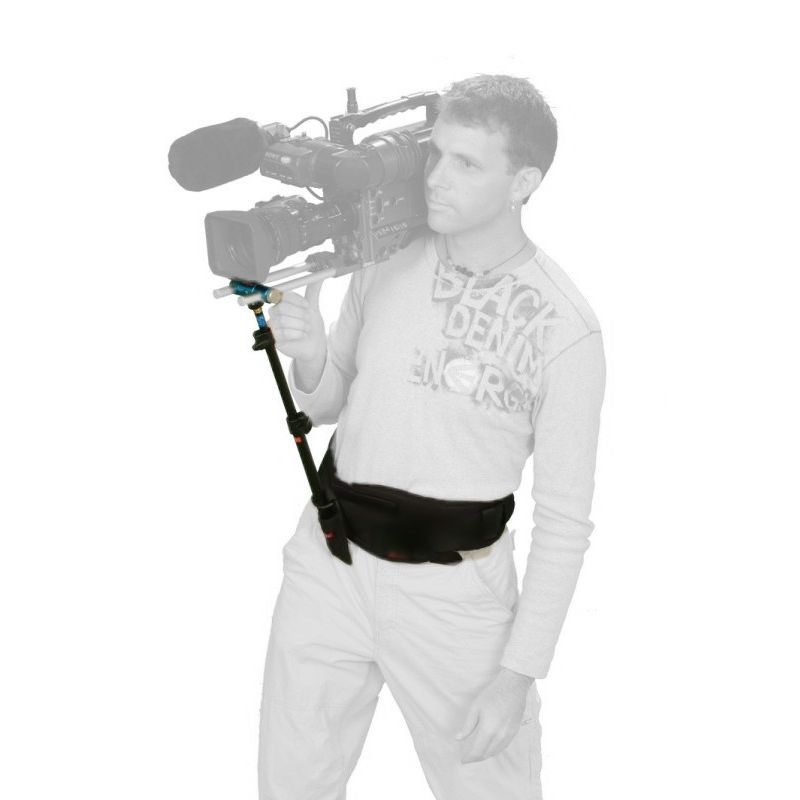

The EngRig Pro Support attaches to the camera's 15mm rod system. The weight of the camera is transferred to a waist belt with a holster via a spring-loaded support arm.

As a result, the cameraman no longer has to bear the full weight on his arms and shoulders. The adjustable suspension compensates for the weight of the camera and supports both static and dynamic shots.

During continuous shooting, the suspension absorbs vertical movements and shocks, making the image appear steadier. For fixed setups, the support arm can be fully locked.

Application

The DVTEC EngRig Pro Support is ideal for:

• ENG productions

• News reports

• Documentaries

• Live events

• Reality TV productions

• Industrial video productions

• Long shooting days with handheld cameras

• Broadcast cameras with heavy lenses

Especially with front-heavy camera configurations, the system offers a noticeable ergonomic improvement.

Key features

Ergonomic weight distribution

Shifts the weight of the camera to the hips, significantly reducing the strain on the back, neck, and shoulders.

Adjustable spring tension

Two separately adjustable springs make it possible to tailor the support to different camera weights.

Stabilization during movement

The sprung construction dampens vertical movements while walking and ensures smoother footage.

Flexible adjustment

The camera can easily be positioned higher or lower for an optimal working posture.

Lockable support arm

The horizontal movement can be infinitely adjusted from fully free-moving to fully locked.

Quick assembly

Thanks to the integrated click system, the system is ready for use within a few seconds.

Limits

• Requires a 15mm rod system on the camera

• Not compatible with cameras without rods

• Not a full stabilizer like a Steadicam or gimbal

• Primarily compensates for vertical movements

• Optimal operation requires correct adjustment of the springs.

• Less suitable for very lightweight cameras

• Supports a maximum of approximately 12 kg depending on the spring configuration

• Designed for shoulder-mount and ENG cameras, not for compact handheld cameras
