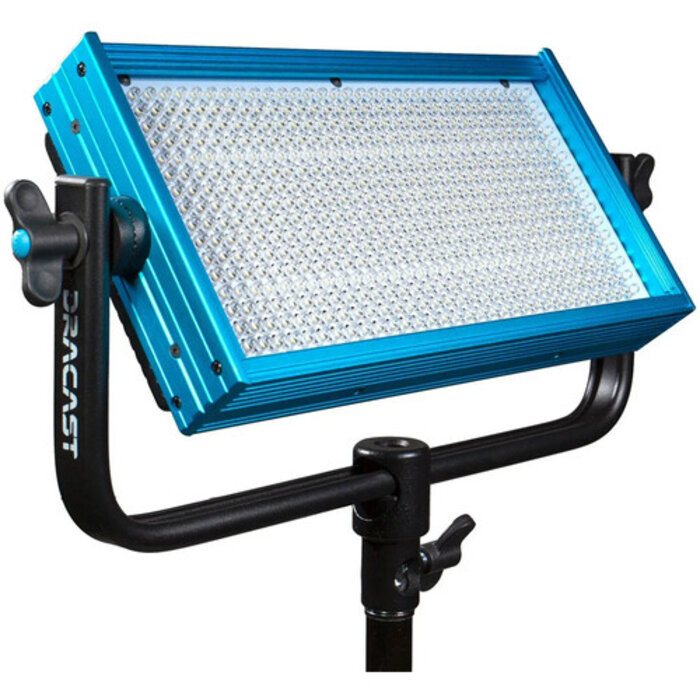

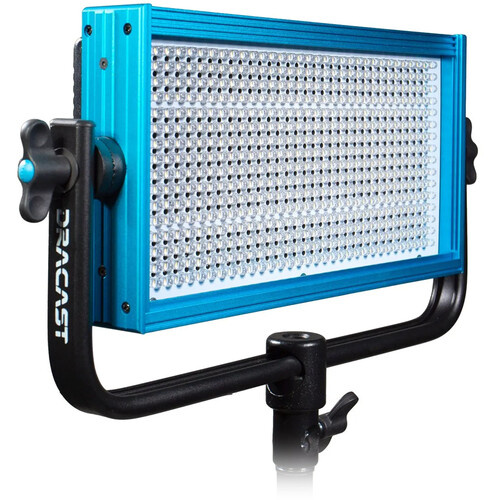

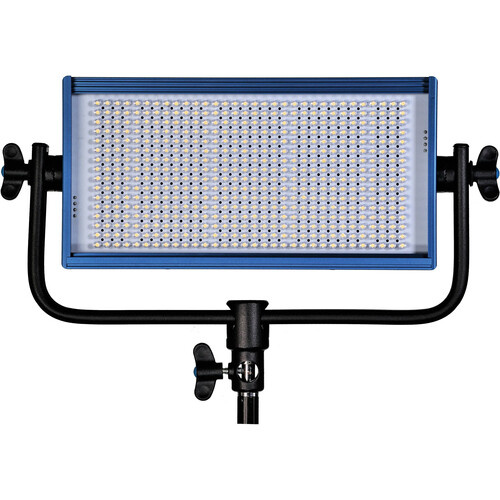

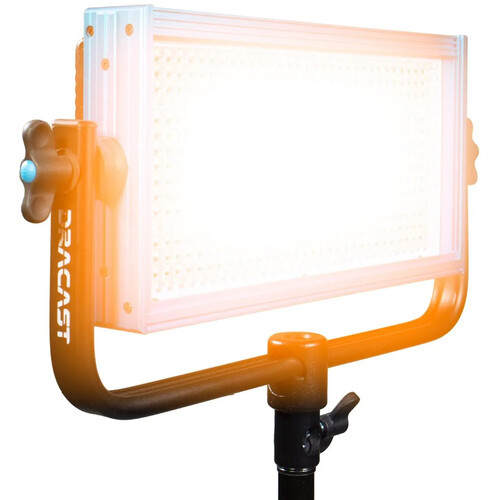

Dracast Plus Series LED500 Tungsten LED Light Panel
Key Features
- Light with Gold & V-Mount Battery Plates
- Output: 3078 Lux at 3.3' (3200K)
- 3200K CCT
- 12 x 6 x 2" Panel; AC/DC Operation
- CRI 95
- Onboard & DMX Control
- 45° Beam Angle
- 0-100% Dimming
- Digital Display & Aluminum Chassis

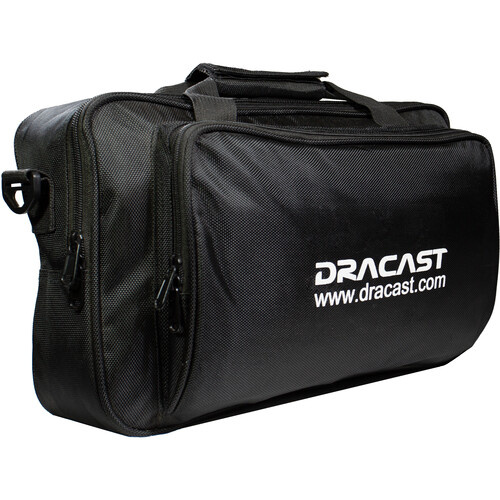

- Includes Carry Case
Expanding on their line of panels, the Plus Series LED500 Tungsten LED Light Panel from Dracast adds a digital display for adjusting output as well as Cat 5 DMX input and output for linking and comes with both Gold mount and V-mount battery plates. The light features 512 LEDs with a high CRI of 95 for excellent color accuracy. Also, this model has a tungsten-balanced color temperature of 3200K for matching with other fixtures.

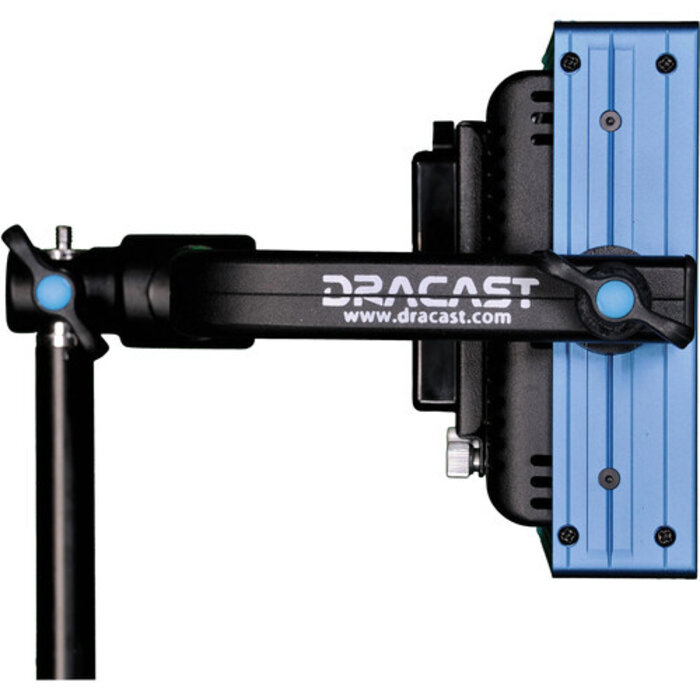

The lights offer a spot beam angle of 45°, as well as dimming from 0-100%. Benefiting operation, it can run from either a DC source, such as a Gold mount or V-mount battery, or a universal 100-240 VAC adapter. The light is durable as well, with an aluminum chassis, frame, and mounting yoke, and it only consumes 30W of power. Additionally, it is lightweight at just 4 lb and measures 12 x 6 x 2" in size.
Photometrics
3800 lux/353 fc at 3'
1150 lux/107 fc at 6'
530 lux/49 fc at 9'
300 lux/28 fc at 12'
| Item Type | 1x LED Light Panel |
| Included Storage Case | Yes |
| Photometrics | 3200K: 285 fc / 3078 Lux at 3.3' / 1 m* 353 fc / 3800 Lux at 3' / 0.9 m 107 fc / 1150 Lux at 5.9' / 1.8 m 49 fc / 530 Lux at 8.9' / 2.7 m 28 fc / 300 Lux at 11.8' / 3.6 m *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature | 3200K |
| Color Modes | Tungsten |
| Color Accuracy Standard | CRI 95 |
| Dimming | Built-In Dimmer • 0 to 100% |
| Front Accessory Mount | Proprietary |
| Power Source | AC to DC Adapter (Included) Battery (Not Included) |
| Battery Plate Type | 1x V-Mount (Included) 1x Gold Mount (Included) |
| Battery | 1x Gold Mount Rechargeable (Not Included) or 1x V-Mount Rechargeable (Not Included) |
| Input Power | 12 VDC 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 30 W |
| Fixture Mounting | 1x 5/8" Receiver (Via Yoke Mount) |
| Item Type | 1x LED Light Panel |
| Included Storage Case | Yes |
| Photometrics | 3200K: 285 fc / 3078 Lux at 3.3' / 1 m* 353 fc / 3800 Lux at 3' / 0.9 m 107 fc / 1150 Lux at 5.9' / 1.8 m 49 fc / 530 Lux at 8.9' / 2.7 m 28 fc / 300 Lux at 11.8' / 3.6 m *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature | 3200K |
| Color Modes | Tungsten |
| Color Accuracy Standard | CRI 95 |
| Dimming | Built-In Dimmer • 0 to 100% |
| Cooling System | No |
| Beam Angle | 45° |
| Built-In Flash | No |
| Umbrella Mount | No |
| Front Accessory Mount | Proprietary |
| Power Source | AC to DC Adapter (Included) Battery (Not Included) |

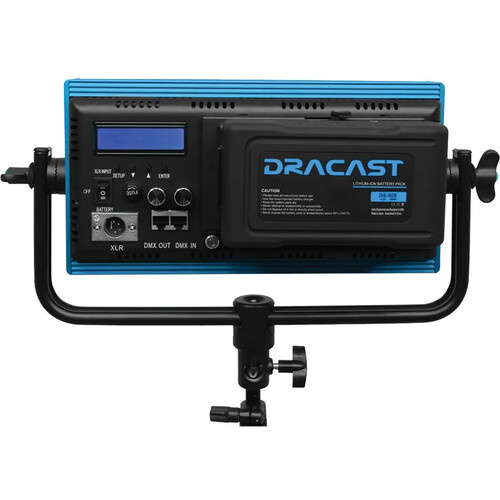

| Inputs/Outputs | 1x XLR 4-Pin Power Input 1x RJ45 DMX Input 1x RJ45 DMX Output |
| Battery Plate Type | 1x V-Mount (Included) 1x Gold Mount (Included) |
| Battery | 1x Gold Mount Rechargeable (Not Included) or 1x V-Mount Rechargeable (Not Included) |
| Input Power | 12 VDC 100 to 240 VAC, 50 / 60 Hz |
| Included Adapter / Cable | 1x USA Type-A/B to XLR 4-Pin AC to DC Adapter |
| Inline Switch | No |
| Power Pass-Thru | No |
| Power Consumption | 30 W |

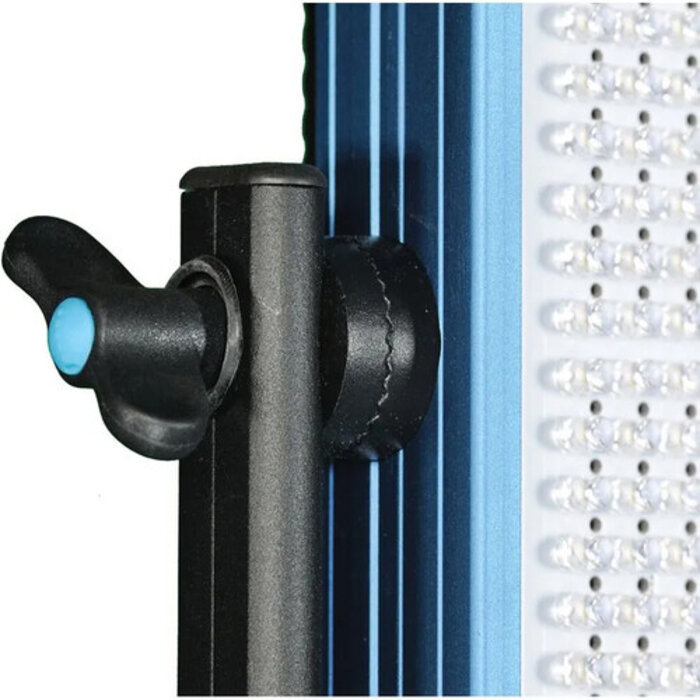

| Yoke Type | Manually-Operated Yoke |
| Fixture Mounting | 1x 5/8" Receiver (Via Yoke Mount) |
| Display | Yes |
| Environmental Resistance | Dust-Resistant (IP20) |
| Materials | Aluminum (Housing) |
| Dimensions | 12 x 6 x 2" / 30.5 x 15.2 x 5.1 cm (Fixture) |
| Weight | 4 lb / 1.8 kg (Fixture with Yoke) |
| Package Weight | 9 lb |
| Box Dimensions (LxWxH) | 18.25 x 11.5 x 8.5" |
