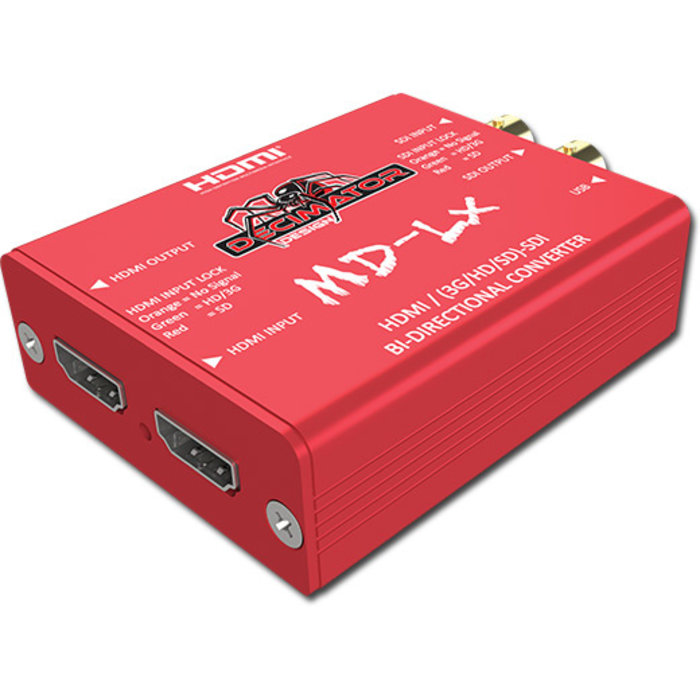

Decimator Design MD-LX - SDI / HMDI Bidirectional Converter

  • Supplier stock, 1 - 3 business days
€115,00 (€95,04 Excl. tax)
Bi-directional mini converter HDMI / SDI with 3G support...More information
+31 (0) 316 294 700
Great deals
Professional advice
Tailored Services
Product information

The MD-LX is a bi-directional mini converter for converting HDMI to SDI and vice versa. The converter offers four adjustable modes for signal conversion and supports video formats up to 1080p with up to 60 frames per second. The converter can be operated both via the included power adapter and via USB and has a low power consumption of about 2.5 watts.



  • Supports 3G Level A and B and allows conversion between both
  • Low power
  • Operating voltage via power supply unit or USB

Technische specificaties

    • Supported Video Formats:
      1080p / 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
      1080i / 50 / 59.94 / 60
      1080PsF / 23.98 / 24 / 25 / 29.97 / 30
      720p / 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
      625i / 50 (PAL); 525i / 59.94 (NTSC)



    • Conversion Options:
      1. Auto Select (active input to all outputs or if both inputs are active SDI to HDMI and HDMI to SDI)
      2. HDMI IN to SDI OUT and SDI IN to HDMI OUT
      3. SDI IN to HDMI and SDI OUT
      4. HDMI IN to HDMI and SDI OUT



    Connections:



    Input

    • 1x HDMI via HDMI-A
    • 1x 3G-SDI via BNC
    • 1x USB via Micro-USB (power, control, firmware updates)
    • 1x Power supply AC



    Output

    • 1x HDMI via HDMI-A
    • 1x 3G-SDI via BNC



    General Product Information:

    • Dimensions (W x H x D): 73.7 x 23 x 60 mm
    • Operating Voltage: 4.4 - 5.25 V DC (USB)
    • Power Consumption: less than 2.5 W

In de doos

  • 1x AC adapter
  • 1x USB cable
