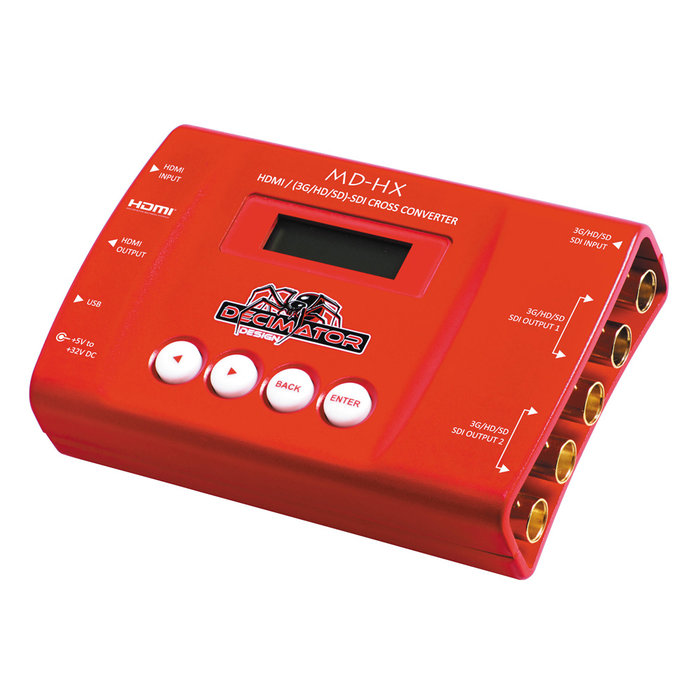

Decimator Design MD-HX - HDMI / SDI Cross Converter

  • Ready for delivery
€349,00 (€288,43 Excl. tax)
Portable converter for cross-conversion between SDI and HDMI and scaling...More information
Gewijzigde openingstijden
Great deals
Professional advice
Tailored Services
Product information
  • Article number: DD-HX

This portable converter incorporates an easy to use LCD and button control system. This grants access to all of the amazing features that have been unavailable without a computer until now. The days of having to play with annoying dip switches or having to carry around a computer to change a simple setting are gone.



  • Support for 3G level A and level B on the inputs and outputs
  • Allowing conversion between 3G-SDI level A and level B
  • Contains the same Down Up Cross Converter installed in MD-DUCC
  • HDMI or SDI input signals can be scaled and/or frame rate converted
  • The 4 SDI outputs can be configured as a 1 to 4 distribution amplifier
  • Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2
  • Audio pairs in the SDI and HDMI outputs can be rearranged as required
  • Horizontal and/or vertical image flipping per window
  • USB port for control and firmware updates
  • Most settings can be made using the buttons on the top and checked on the LC display
  • Robust housing made of aluminium



Signal flow/routing:

  • SDI in to HDMI and SDI out
  • SDI in to SDI out and HDMI in to HDMI out
  • SDI in to SDI out and scaled SDI in to HDMI out
  • SDI in to SDI out and scaled HDMI in to HDMI out
  • HDMI in to SDI out and SDI in to HDMI out
  • HDMI in to HDMI and SDI out
  • HDMI in to SDI out and scaled SDI in to HDMI out
  • HDMI in to SDI out and scaled HDMI in to HDMI out
  • Scaled SDI in to SDI out and SDI in to HDMI out
  • Scaled SDI in to SDI out and HDMI in to HDMI out
  • Scaled SDI in to HDMI and SDI out
  • Scaled HDMI in to SDI out and SDI in to HDMI out
  • Scaled HDMI in to SDI out and HDMI in to HDMI out
  • Scaled HDMI in to HDMI and SDI out

Technische specificaties

    Supported video resolutions and frame rates:



    SDI signals:

    • HD:
      1920x1080 progressive at 60 / 59,94 / 50 / 30 / 29,97 / 25 / 24 / 23,98 fps
      1920x1080 PsF at 30 / 29,97 / 25 / 24 / 23,98 fps
      1920x1080 interlaced at 60 / 59,94 / 50 fps
    • HD (720):
      1280x720 progressive at 60 / 59,94 / 50 / 30 / 29,97 / 25 / 24 / 23,98 fps
    • SD:
      525 lines at 29,97 fps (NTSC), 625 lines at 25 fps (PAL)



    Connections:



    Inputs:

    • 1x 3G-/HD-/SD-SDI, BNC
    • 1x HMDI, type A



    Outputs:

    • 4x 3G-/HD-/SD-SDI (2 output pairs), BNC
    • 1x HMDI, type A



    Other links:

    • 1x USB port for control and firmware updates



    General product information:

    • Dimensions (WxHxD): 12.3 x 2.95 x 7.95 cm
    • Power supply: DC 5 - 32 V (with power supply unit)

In de doos

  • 1x Power supply unit
  • 1x HDMI cable
  • 1x USB cable
