Datavideo DAC-60 SDI to VGA Converter
Datavideo Technologies Europe BV, Floridadreef 106, 3565 AM Utrecht

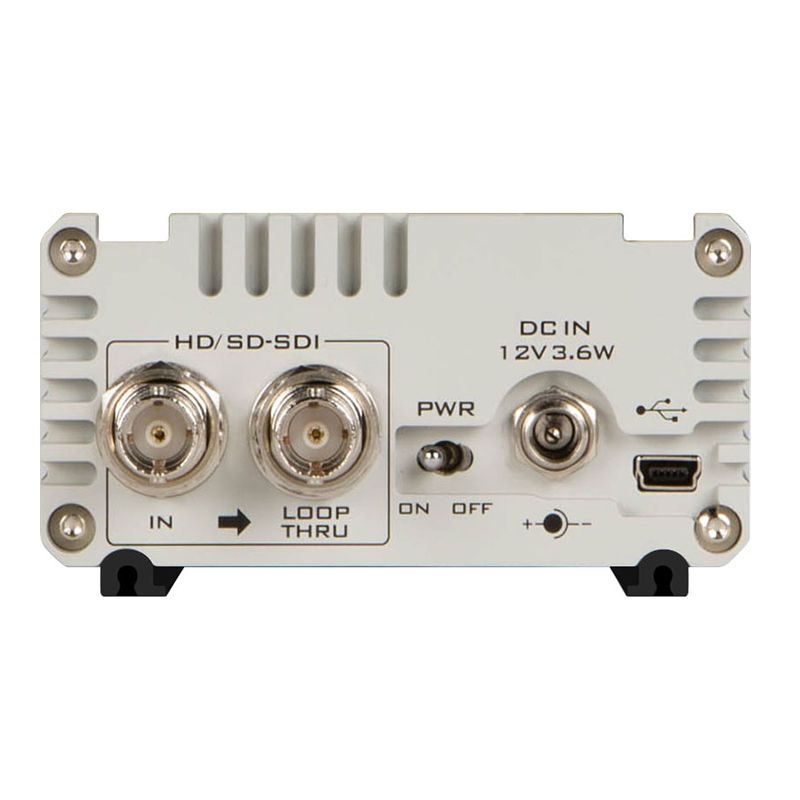

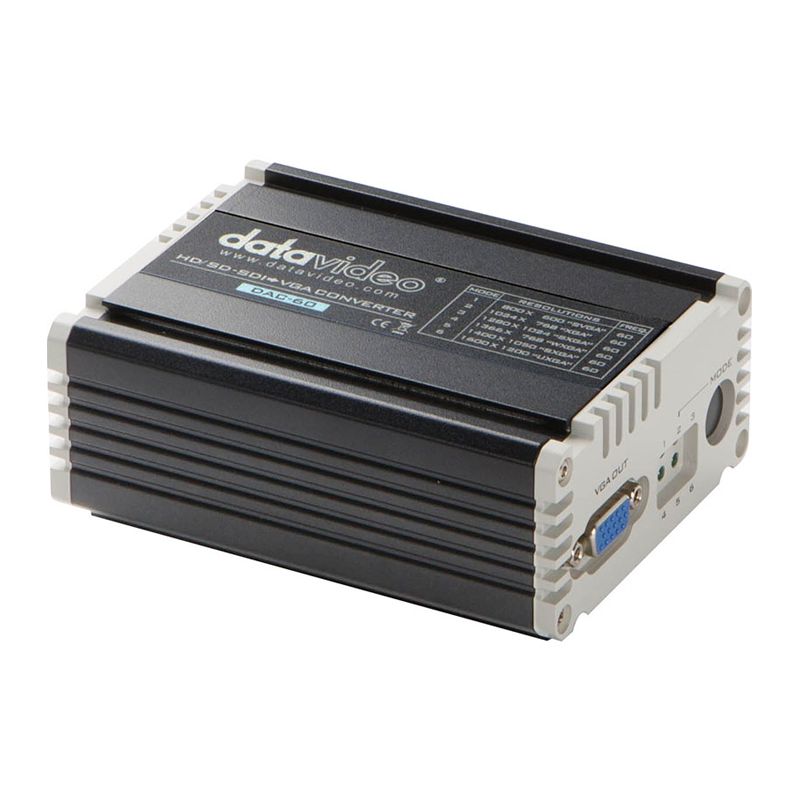

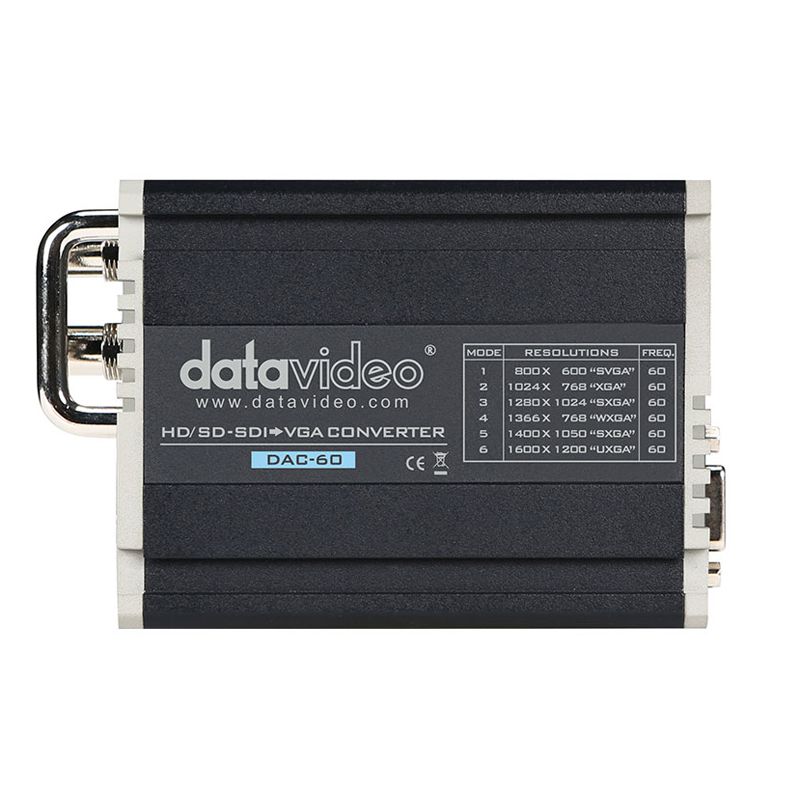

The Datavideo DAC-60 SD/HD/3G-SDI to VGA Scaler and Converter converts SD/HD/3G-SDI video signals into VGA signals for display on computer peripherals such as projectors and monitors. The DAC-60 features a loop-through input that passes the SDI input signal downstream without changing it. This allows you to feed the same video signals to both VGA and SDI based equipment. The unit auto detects the input format and scales it to the user selected VGA output format, which is indicated by the six LEDs.
With the included software you can set the built-in processing amp (proc amp) to adjust Contrast, Hue and Saturation of the VGA signal. The SDI loop-through signal is unaffected by the proc amp settings. The unit is designed to be portable as it draws only 500 mA at 12 volts and weighs less than a pound.
- 1x DAC-60 product
- 1x AD Switch DC 12V
- 1x Thank You Card
- Supports Brightness, Contrast, Hue and Saturation of Adjustment
- Supplied with a Windows application that connects via USB and enables adjustment of the colour, contrast or saturation
- Settings from the application are retained when the computer and power are removed
- SDI loop through is unaffected by the adjustments to the VGA signal
- Dual output available (SDI & VGA)
- Supports 3G/HD/SD-SDI format :
- SD - 720 x 480 i / 720 x 576 i
- HD - 1280 x 720 50p/60p/59.94p
- 1920 x 1080 50i/60i/59.94i
- 1920 x 1080 24p/25p/30p
- 3G - 1920 x 1080 50p/60p/59.94p Support 525i & 625i SD D1 format - Auto 3G/HD/SD-SDI detection
- VGA Output formats:
- 800 x 600
- 1024 x 768
- 1280 x 800
- 1280 x 1024
- 1366 x 768
- 1400 x 1050
- 1600 x 1200
- 1920 x 1080
- 1920 x 1200
The Datavideo DAC-60 is a HD/SD-SDI to VGA converter. It's designed for use with equipment such as projectors, plasma TV, and LCD screens.
