Convert from HDMI to 12G-SDI. Works with all video formats including SD, HD, 6G and 12G-SDI rates and includes an up converter for converting HD to Ultra HD. Embed audio from balanced analog or AES/EBU and timecode input. Ideal for converting HDMI consumer cameras to SDI, or adding SDI outputs to computers with HDMI connections.
SDI Video Output
Automatically matches the SD, HD and 12G-SDI HDMI video input.
XLR Audio Input
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
AES/EBU Audio Output
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.
1 x HDMI type A connector with support for 2160p60.
Multi Rate Support
Automatic switching between SD/HD/2K and 4K.
Updates and Configuration
USB or Ethernet.

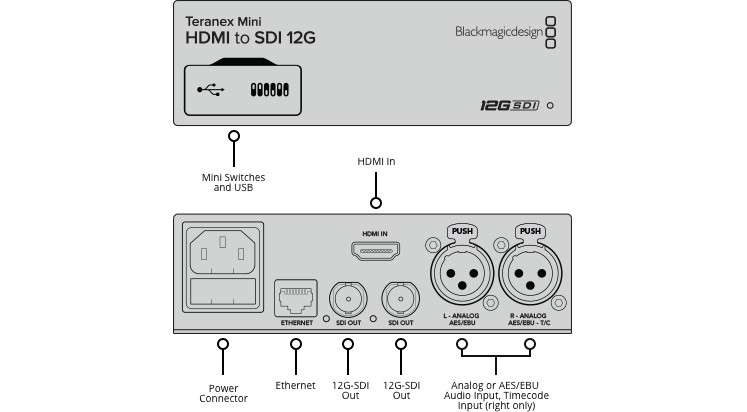

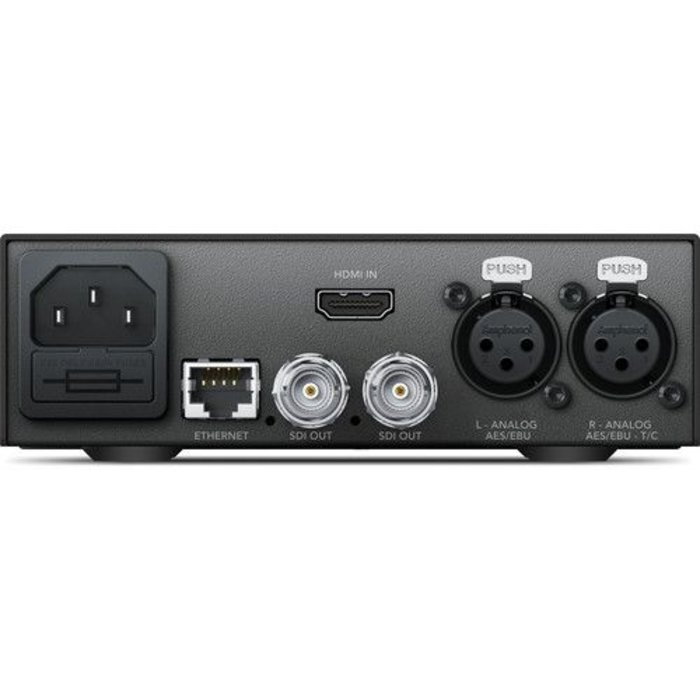

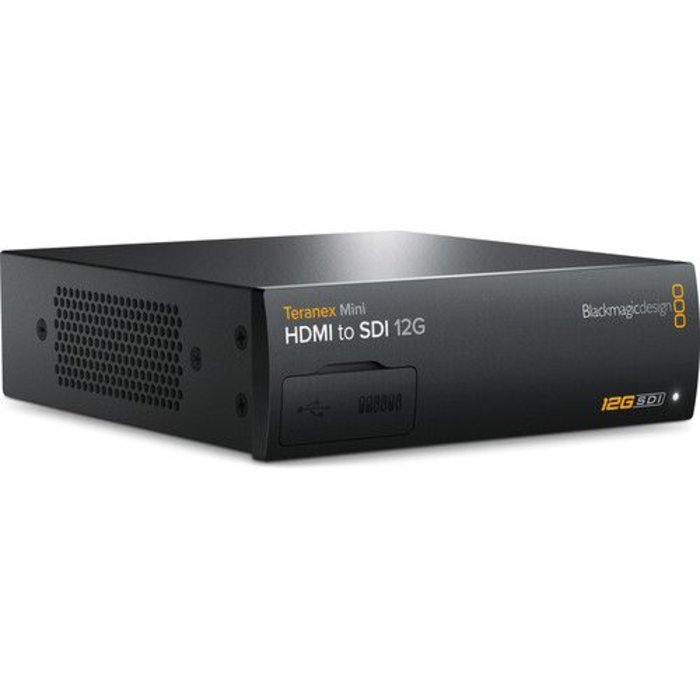

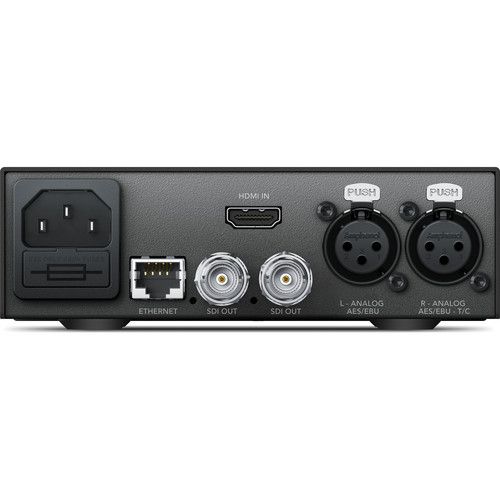

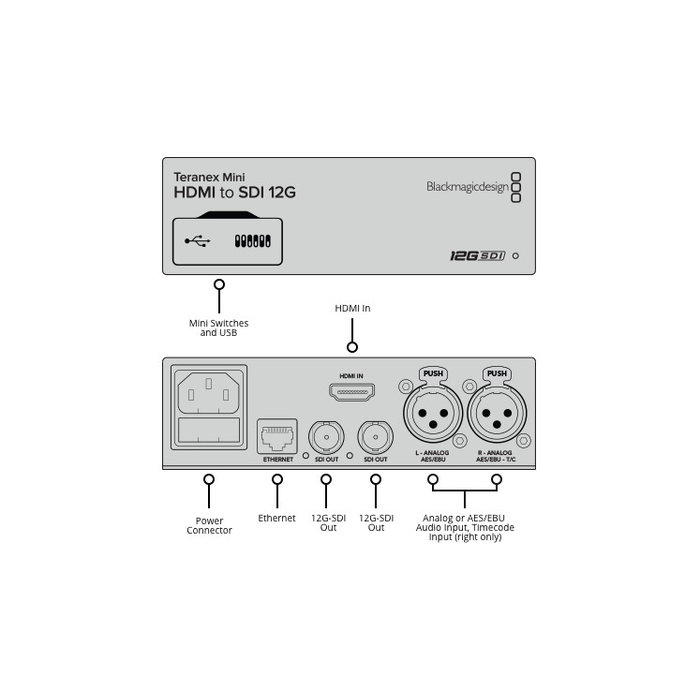

Teranex Mini – HDMI to SDI 12G
SD card with software and manual
