Blackmagic Design

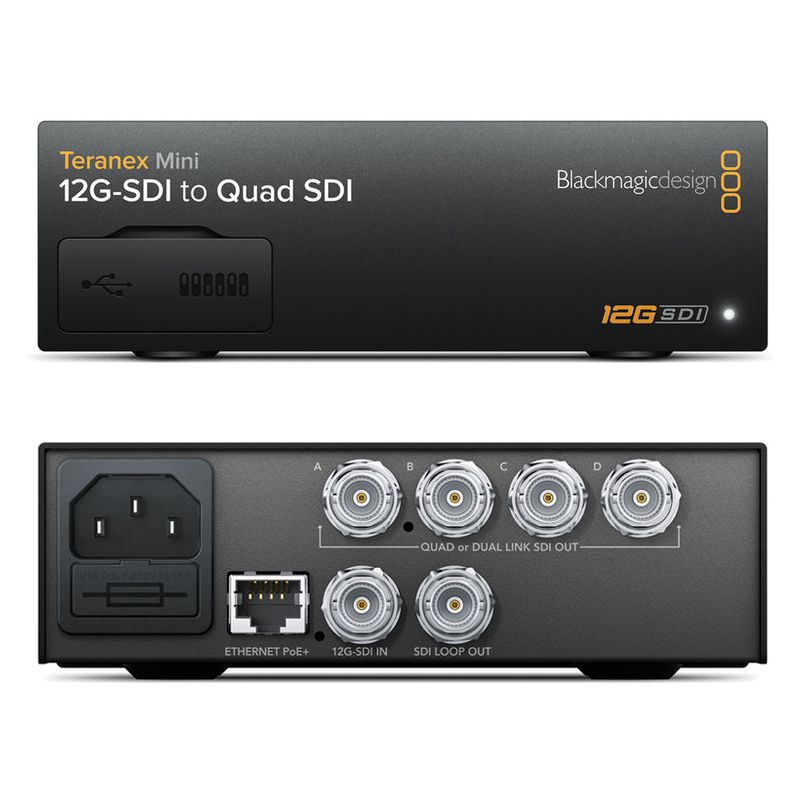

Blackmagic Design Teranex Mini - 12G SDI to Quad SDI

Convert 12G-SDI to Quad Link SDI so you can connect the latest 12G-SDI Ultra HD equipment with Quad Link Ultra HD equipment

€514,00 Incl. BTW
€424,79 Excl. BTW
CONVNTRM/DB/SDIQD
1-5 days
+ -
Gratis verzending vanaf € 250,-
Large selection of pro products
Fast shipping with UPS
Videocamera Price Match!*

Product description

Convert 12G-SDI to Quad Link SDI so you can connect the latest 12G-SDI Ultra HD equipment with Quad Link Ultra HD equipment. Also allows Ultra HD SDI to be separated into four HD SDI outputs for using regular HD displays for creating video wall style displays. Includes 12G-SDI loop through and support for both Level A and Level B 3G-SDI equipment.

Technische specificaties

SDI Video Input

1 x 12G-SDI SD/HD/2K/4K auto switching.

SDI Video Output

4 x 3G-SDI outputs

Multi Rate Support

Automatic switching between SD/HD/2K and 4K

Updates and Configuration

USB or Ethernet

SD Format Support

525/29.97 NTSC625/25 PAL

HD Format Support

720p50, 59.94, 60
1080i50, 59.94, 60
1080PsF23.98, 24, 25
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60

2K Format Support

1080PsF23.98, 24, 25
1080p23.98, 24, 25, 30

Ultra HD Format Support

2160p23.98, 24, 25, 29.97, 30, 50, 60

4K Format Support

2160p23.98, 24, 25, 29.97, 30.

SDI Compliance

SMPTE 259M, 292M, 296M, 372M, 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, ST 2081 & ST 2082

SDI Video Rates

SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24-bit.

SDI Color Space

YUV & RGB

Power Supply

1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.

Power Over Ethernet

Can be powered via 48V DC using PoE+ (power over ethernet).

Power Consumption

16 Watts

Operational Voltage Range

90 - 240V AC

Extra

Teranex Mini - 12G-SDI to Quad SDI

Software and manual SD Card
