Blackmagic Design

Blackmagic Design SmartScope Duo 4K

Select between waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase level displays. Dual 8" 3 RU SDI/HD-SDI/3G-SDI/6G-SDI monitoring with built in scopes for technical waveform monitoring.
€816,00 Incl. BTW
€674,38 Excl. BTW
HDL-SMTWSCOPEDUO4K
2000
Available
+ -
Great deals!
Personal advice
Fast shipping with UPS
Videocamera Price Match!*

Product description

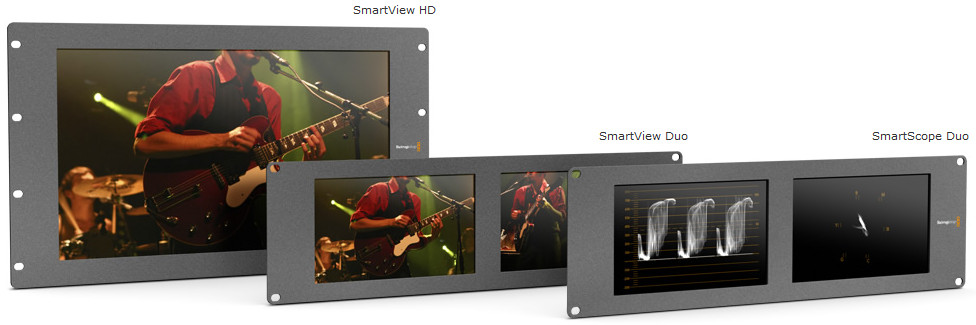

When you need high quality SDI monitoring, SmartView monitors are the perfect solution! SmartView monitors are extremely thin and lightweight, so are perfect for both broadcast and portable use, and automatically switch between SD, HD and 3G-SDI video formats. There are 3 great models; SmartView HD features a large 17" display, SmartView Duo has 2 independent 8" displays and SmartScope Duo 4K adds the flexibility of built in waveform monitoring that can be assigned to either of its 8” displays!

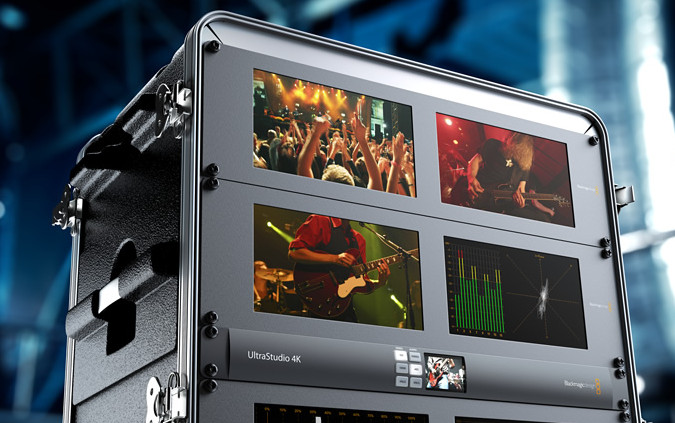

SmartView monitors are the perfect choice to add SDI monitoring anywhere you need it. You can use them for broadcast, post production, on set monitoring, flyaway kits, broadcast trucks and more! When you're working with live production switchers you can build a video wall of camera monitors in your control room and see all your sources. You can mix and match different SmartView models in a rack for a customized monitoring solution where you can view your images and choice of scope displays side by side!

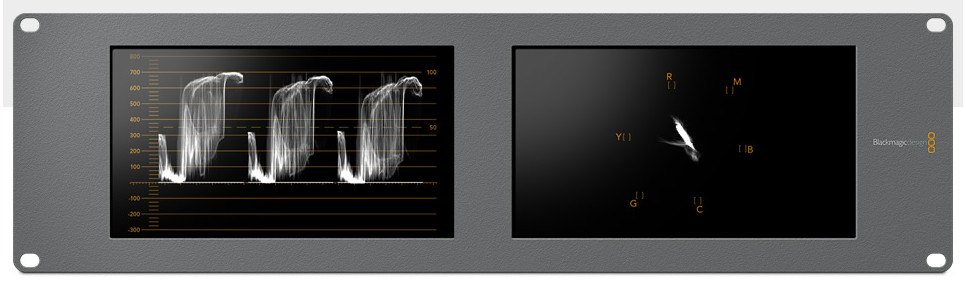

SmartScope Duo 4K looks like a SmartView Duo but adds independent waveform monitoring so you can select between waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase level displays. Each monitor is independent so can display any combination of scope or picture view!

Technische specificaties

Mass

1.53 kg

Dimensions (W x H x D)

48.3 x 13.3 x 3.2 cm

Power Requirements

12V universal power supply included with international socket adapters for all countries.

Power Consumption

< 20 Watts

Operating Temperature

0°C to 40°C
32°F to 104°F

Storage Temperature

-20°C to +60°C
-4°F to +140°F

SD Format Support

525i29.97 NTSC, 625i25 PAL

HD Format Support

720p50, 59.94, 60
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080PsF23.98, 24, 25, 29.97, 30
1080i50, 59.94, 60

2K Format Support

1080p23.98, 24, 25
1080PsF23.98, 24, 25
2K 23.98PsF, 24PsF, 25PsF

Ultra HD Format Support

2160p23.98, 24, 25, 29.97, 30

SDI Compliance

SMPTE 259M, SMPTE 292M,SMPTE 296M, SMPTE 372M,SMPTE 424M Level B and SMPTE 425M.

4K Format Support

2160p24

SDI Compliance

SMPTE 259M, SMPTE 292M,SMPTE 296M, SMPTE 310M,SMPTE 425M-B, ITU-R BT.656 andITU-R BT.601.

Extra

SmartScope Duo 4K

Power Supply

SD card with software and manual
