Blackmagic Design ATEM Talkback Converter 4K

  • Ready for delivery
€2.569,00 (€2.123,14 Excl. tax)
Communicate with up to 8 Cameras
8 x SDI I/O
Camera Talkback via XLR, Mini...More information
+31 (0) 316 294 700
Great deals
Professional advice
Tailored Services
Product information
  • EAN: 9338716003413

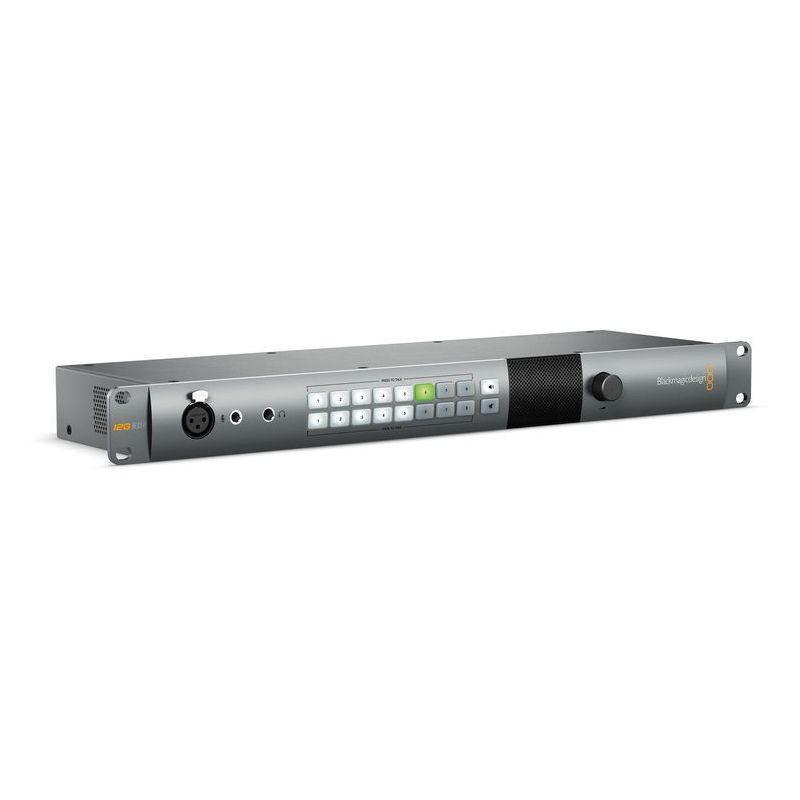

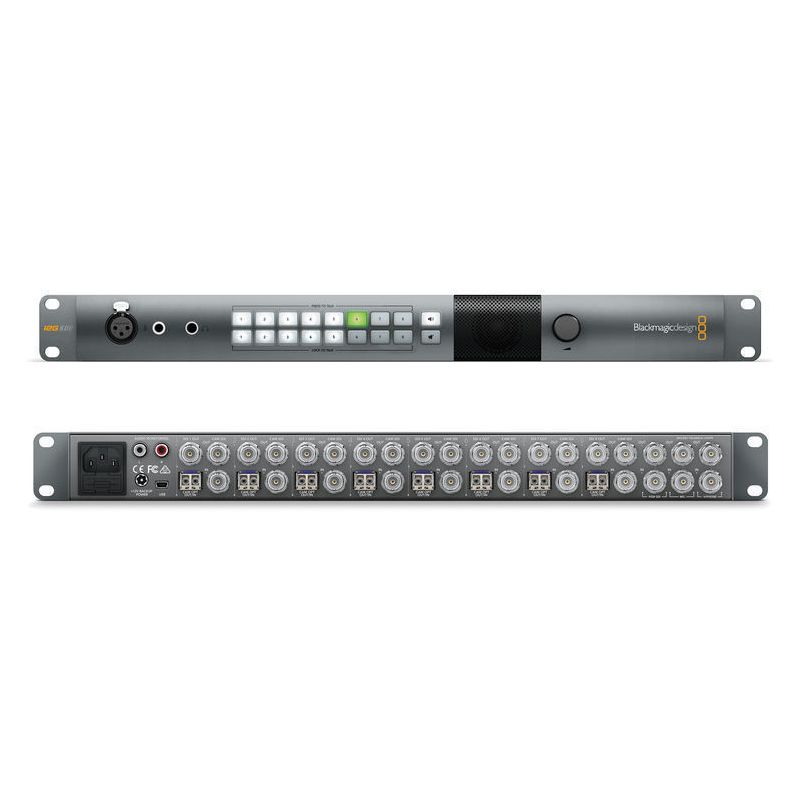

With 12G-SDI, Blackmagic Design's ATEM Talkback Converter 4K accepts high-resolution video from up to eight studio cameras or ATEM Camera Converters and allows the control room to interact with the camera operators. The 12G-SDI connections can support video with resolutions up to 4096 x 2160 at 60 fps and rout those individual signals to a switcher via SDI outputs, to a program monitor via its own SDI output, and back to the camera operator while carrying talkback audio over a single cable. Talkback audio can be captured via a microphone plugged into the XLR jack on the front, or a headset mic plugged into the appropriate jack, also on the front panel.



This unit can be upgraded to accept fiber optic connections, which carry, bi-directional 4K video, audio, and talkback for up to 28 miles without signal degradation. And because of its 1 RU size, it can easily fit into industry standard rack-mount equipment and furniture.



Optional Optical Fiber Connectors



The ATEM Talkback Converter 4K can be upgraded to use standard single mode optical fiber cable with standard LC connectors to allow you to transmit SD and HD video signals up to 28 miles away. Standard copper wire SDI cables have a limit of several hundred feet before the signal breaks up, converting the SDI signal to optical, and sending it along optical cable greatly increases the distance of your cable runs.



Talkback and Tally



The unit features a built-in speaker and mic inputs, as well as a headphone jack for when you need privacy, or the area is too loud. When connected to the ATEM Camera Converter without needing to worry about walkie talkies. Using the talkback feature, the unit uses audio channels 15 and 16 of the SDI stream for talkback communication.
Camera operators can be selected individually if desired, and communication can be controlled by a push button, or locked open. Mute and un-mute buttons on the front of the unit allow you to control who hears what.
The unit passes SDI Tally signal information back to the cameras along with any SDI Program signal from available switchers.



Precision Signal Processing



The unit features chips that use 10-bit processing, and are switchable between SD and HD, for a clean signal.
The unit features eight independent simultaneous SDI to optical and optical to SDI converters (with the optional fiber terminals), when used in conjunction with the ATEM Camera Converter the unit can also be used as four independent SDI or Fiber to HDMI converters.

Technische specificaties



    SDI Program Input

    1 x 10-bit SD/HD/Ultra HD 4K auto switching program input from switcher, including tally information with 16 channel embedded audio.



    SDI Program Output

    1 x 10-bit SD/HD/Ultra HD 4K auto switching program loop thru output connects to another ATEM Talkback Converter 4K.



    Talkback Audio

    Aviation Headsets with 0.25" TRS headset connector and 0.206" TRS microphone connector. Front mounted balanced XLR microphone connector.



    Analog Audio

    1 x stereo RCA monitoring output.



    SDI Camera Input

    8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio.



    SDI Camera Output

    8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio.



    SDI Output

    8 x 10-bit SD/HD/Ultra HD 4K auto switching 16 channel embedded audio.



    Optical Fiber Video Input (Optional)

    8 x single mode SD/HD/Ultra HD 4K auto switching camera inputs with LC connector.



    Optical Fiber Video Output (Optional)

    8 x single mode SD/HD/Ultra HD 4K auto switching camera outputs with LC connector.



    Optical Fiber Audio Input

    8 x single mode camera audio inputs with LC connector. Channels 1 and 2 are camera audio. Channels 15 and 16 are intercom audio.



    Optical Fiber Audio Output

    8 x single mode camera audio outputs with LC connector. Channels 1 and 2 are camera audio. Channels 15 and 16 are intercom audio.



    Computer Interface

    1 x mini-B type USB connector for firmware updates.



    Standards



    SD Format Support

    525i29.97 NTSC, 625i25 PAL



    HD Format Support

    720p50, 59.94, 60
    1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    1080PsF23.98, 24, 25, 29.97, 30
    1080i50, 59.94, 60



    2K Format Support

    1080p23.98, 24, 25
    1080PsF23.98, 24, 25



    Ultra HD Format Support

    2160p23.98, 24, 25, 29.97, 30, 50, 60



    4K Format Support

    2160p23.98, 24, 25, 29.97, 30, 50, 60



    SDI Compliance

    SMPTE 259MSMPTE 292MSMPTE 296MSMPTE 372MSMPTE 424M Level BSMPTE 425M.



    Audio Sampling

    Television standard sample rate of 48Khz, 24-bit A/D conversion.



    Video Sampling

    4:2:2, 4:4:4



    Color Precision

    10-bit



    Color Space

    REC 601, REC 709.



    Multiple Rate Support

    SDI switches between SD, HD and Ultra HD 4K.



    Software



    Internal Software Upgrade

    Via included updater application.



    Operating Systems

    Mac OS X 10.9 Mavericks,
    Mac OS X 10.10 Yosemite or later.

    Windows 8.1 or Windows 10.



    Power Requirements



    Power Usage

    60 Watts



    Power Supply

    110 - 240V AC input with redundant 12-31V DC input.



    Physical Specifications



    Physical Installation

    1 rack unit size. Less than 6 inches deep.



    Environmental Specifications



    Operating temperature

    0° to 40° C (32° to 104° F)



    Storage temperature

    -20° to 45° C (-4° to 113° F)



    Relative Humidity

    0% to 90% non-condensing
