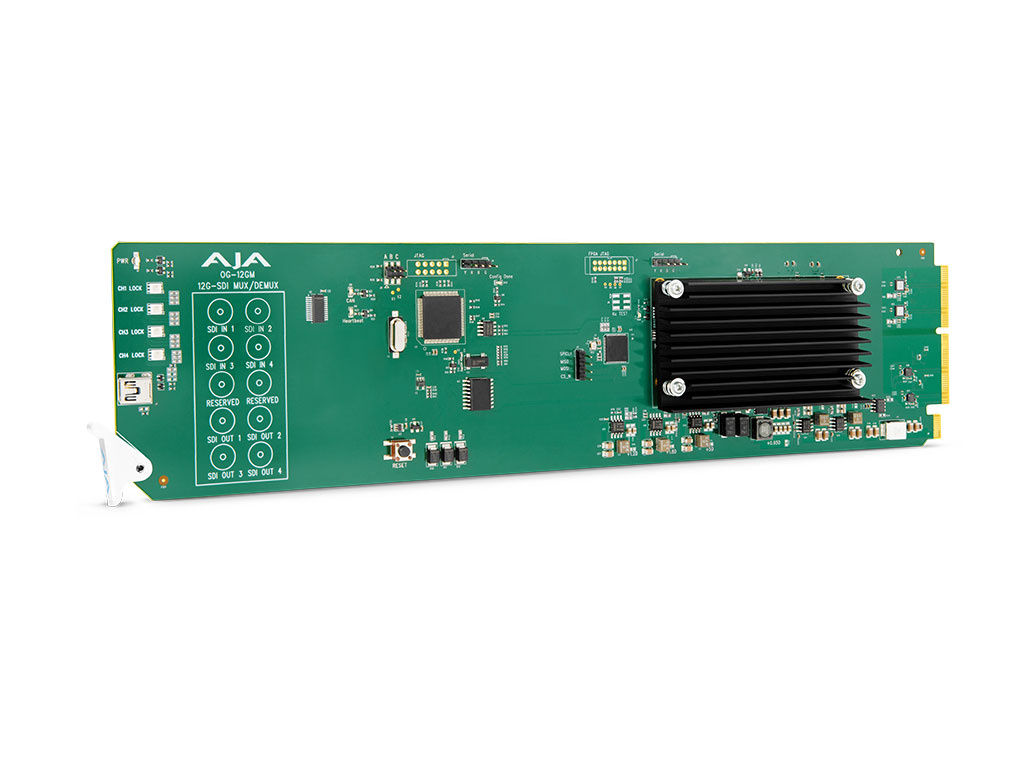

OG-12GM is a compact SDI transport openGear card that enables 12G-SDI to quad link 3G-SDI and quad link 3G-SDI to 12G-SDI conversion. The muxer/demuxer supports 4K, UltraHD, 2K, HD and SD workflows and conversions from quad link SDI signals to single link SDI signals, and vice versa at 12G, 6G, 3G and 1.5G bit rates, as well as Dual Link and Dual Stream conversions. Both Square Division (Quadrant) and Two Sample Interleave (2SI) input and output mappings are supported.
AJA openGear products are designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, with industry standard DashBoard software support on Windows®, macOS® and Linux®, offering remote control and monitoring over a PC or local network.
Features
- openGear compatible card
- SDI Transport Converter for 12G, 6G, 3G and 1.5G-SDI
- Supports multiple types of Quad, Dual, and Single type conversions
- Two Sample Interleave (2SI) to/from Square Division (Quadrant) pixel mapping
- 3G-SDI Level A to/from 3G-SDI Level B Dual Link (DL)
- 3G-B Dual Stream Support
- Simple Frame Rate Conversion (FRC)
- HDR signaling metadata pass-through and optional override
- Pass-through of Single Link 12G, 6G, 3G, 1.5G and 270M SDI video
- Distribution Amplifier support (1x4)
- Input signal diagnostics and timing analyzer for quad link signals
- Automatic or manual control
- Detailed timing analysis for validating alignment of quad link SDI inputs
- Passes SDI embedded audio, 24-bit, up to 16-Channels
- Remote Ethernet configuration through Ross DashBoard software
- Power: 13 watts
- Hot-swappable

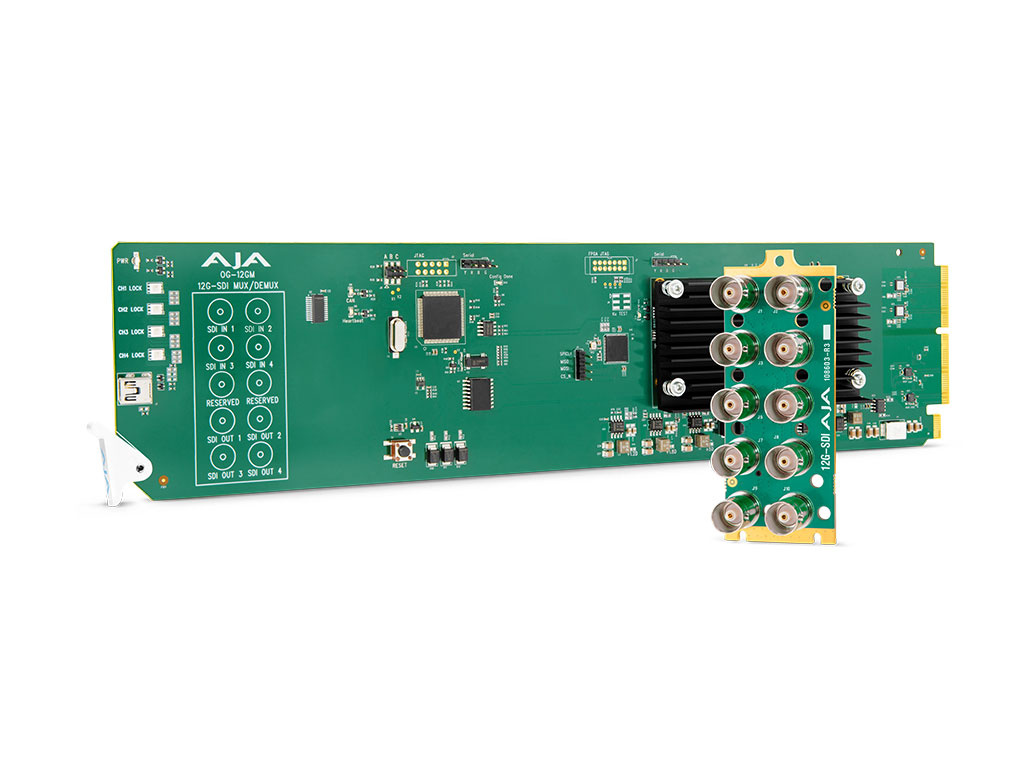

- Rear I/O card included
- Two slots required for each card
- Compatible with OG-X-FR and OG-3-FR openGear frames

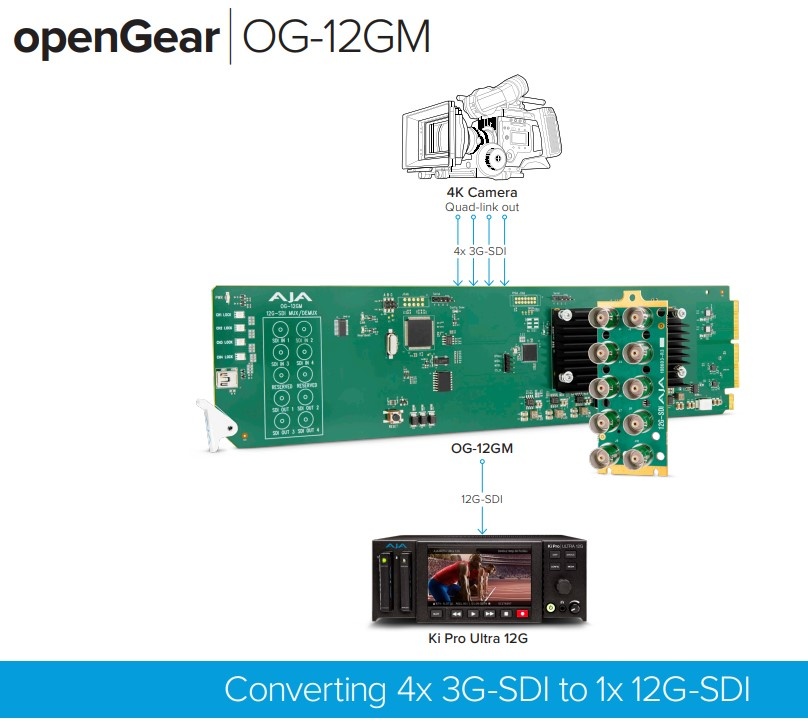

OG-12GM Workflow Diagram
This workflow diagram shows a 4K camera system outputting video via a 4x 3G-SDI quad-link connection. This output is connected to the 4x 3G-SDI inputs of the OG-12GM, which converts it in turn into single-link 12G-SDI, shown here with a Ki Pro Ultra 12G recording the video at the end of the signal chain.

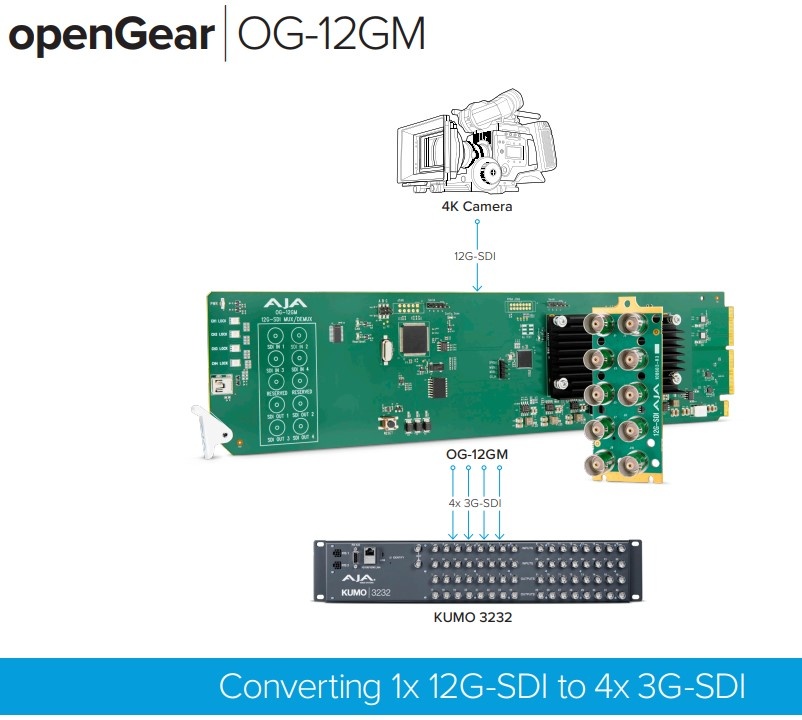

OG-12GM Workflow Diagram
This workflow diagram shows a 4K camera system outputting video via 1x 12G-SDI connection. This output is connected to the 12G-SDI input of the OG-12GM, which then converts it into quad-link 3G-SDI, here shown with an AJA KUMO 3232 3G-SDI router providing further distribution.

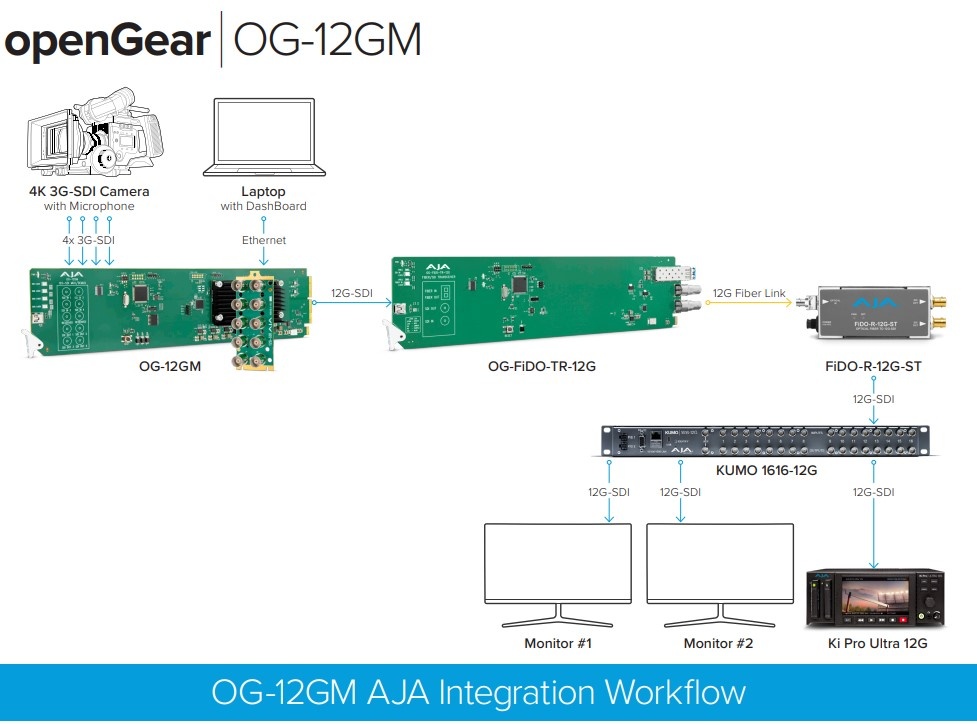

OG-12GM Integration Diagram
This integration workflow diagram shows a 4K camera system outputting video via a 4x 3G-SDI quad-link connection. The OG-12GM provides a conversion from quad-link 3G-SDI into single link 12G-SDI, allowing the 4K 3G-SDI camera source to fit seamlessly into a 4K 12G-SDI eco system. Multiple OG-12GM cards can be housed in the appropriate openGear rackframe, making multi-cam conversions easy.
openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the standard for professional rackframe solutions.

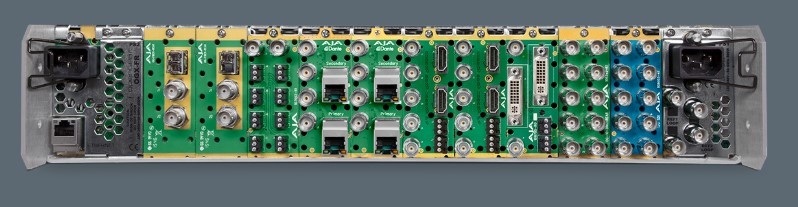

Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).
Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.
Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Ross DashBoard software application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.
DashBoard Software
DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux.
AJA Mini-Matrix
Information on the complete line of AJA openGear frames and cards is now available in the Mini-Matrix. AJA products are extensive, and this resource helps you find the right converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.
