Aida PTZ-NDI3-X20 - Full HD NDI|HX3 PTZ Camera with 20x Zoom and 120fps - Black

Key features

• Full HD up to 1080p120 (via HDMI, IP and NDI|HX2) for smooth slow-motion replays
• NDI|HX3 and NDI|HX2, plus RTSP, RTMP and SRT
• 20x optical zoom (4.9-98mm, F1.5-F3.0)

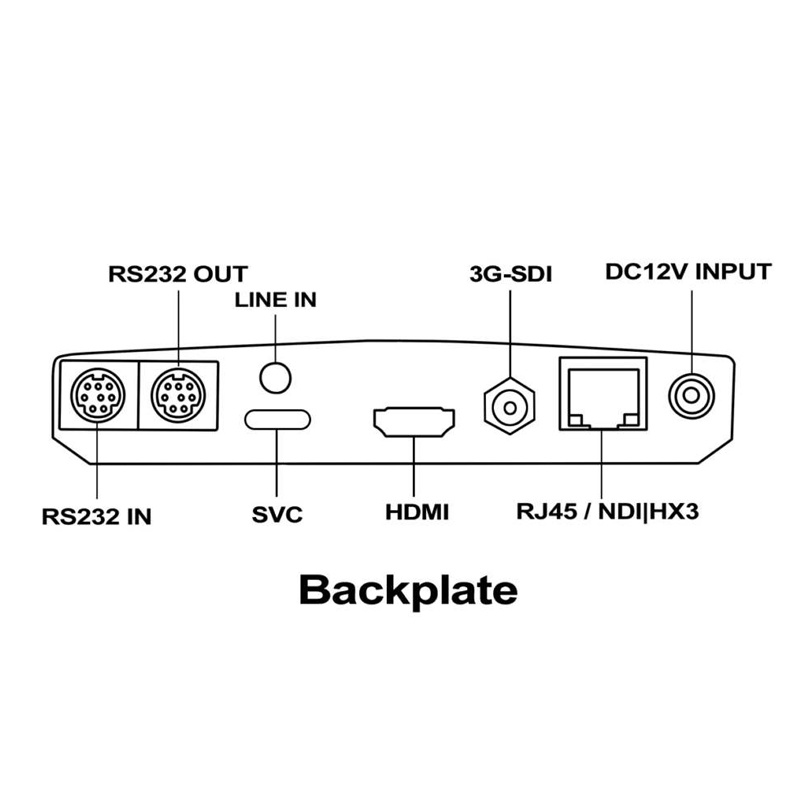

• Simultaneous outputs: 3G-SDI, HDMI and IP
• AI auto-tracking follows a person and adjusts framing and zoom automatically
• PoE+ for power, video and control over a single cable
• Black housing; also available in white

How it works

The camera is controlled over the network or from a VISCA controller: pan, tilt, zoom and 128 presets (10 via the IR remote). At 120 frames per second it supplies the extra frames a replay system needs for smooth slow motion. With auto-tracking the camera follows a presenter or athlete on its own, so the operator can focus on the rest of the production.

Applications

Sports productions with replays, e-sports, live streaming, houses of worship, conferences, lecture halls and studios using both SDI and NDI.

Limitations

120fps only via HDMI, IP and NDI|HX2; via 3G-SDI and NDI|HX3 the maximum is 60fps. No 4K. According to AIDA's specifications, audio is embedded in the IP streams only. Internal operating temperature 0-40 °C: not for outdoor use.
