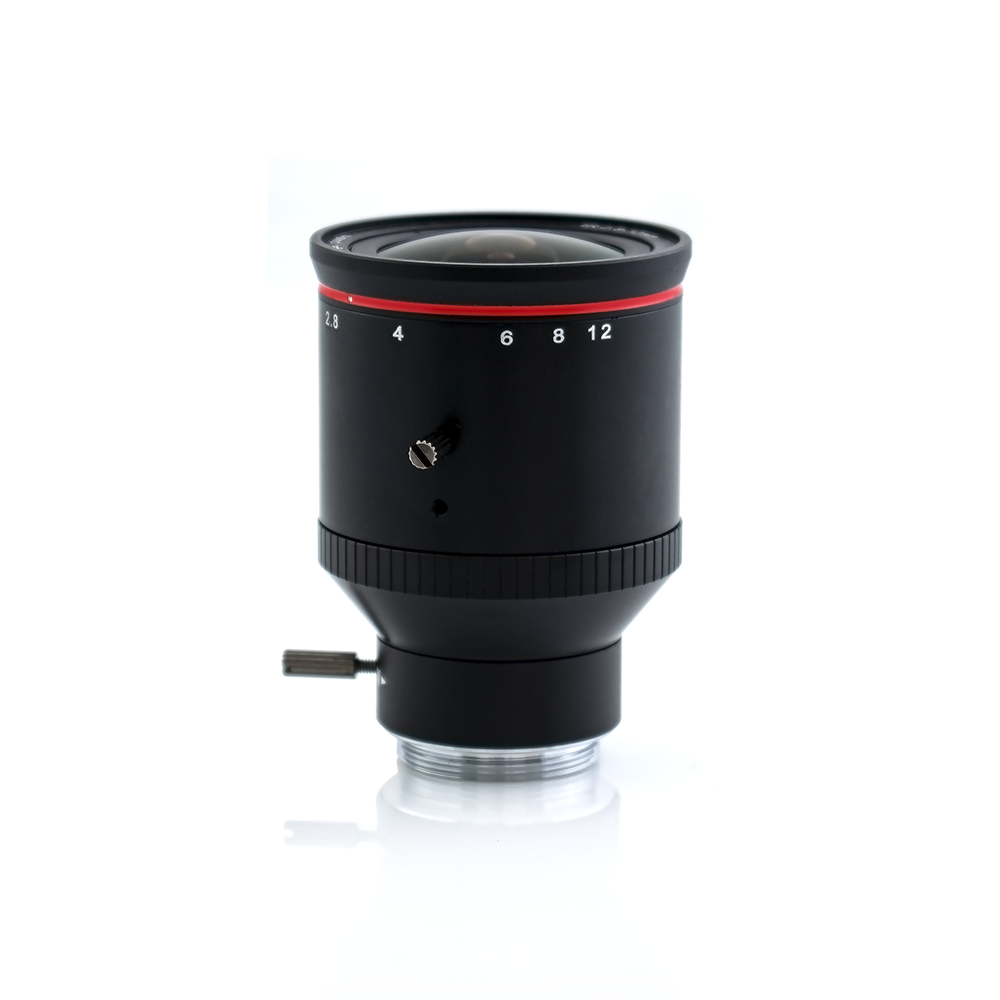

AIDA - CS-2812V - CS Mount 2.8mm-12mm Varifocal Mega-Pixel Lens

Brand: AIDA
  • Supplier stock, 1 - 3 business days
€149,00 (€123,14 Excl. tax)
CS-Mount 2.8mm-12mm Varifocal 3 Megapixel Lens...More information
+31 (0) 316 294 700
Great deals
Professional advice
Tailored Services
Product information

CS Mount 2.8mm-12mm Varifocal Mega-Pixel Lens



Model CS-2812V



The CS-Mount 2.8mm-12mm Varifocal 3 Megapixel Lens from AIDA is optimized with the AIDA Imaging Full HD cameras with 1/3″ Progressive CMOS sensors.



MAIN FEATURES



  • Optimized and tuned with Full HD Cameras.
  • CS-Mount.
  • Adjustable Iris.
  • Varifocal 2.8mm~12mm
  • Horizontal Field of View: 60°-6°



Technische specificaties



    Specifications



    Optical

    Focal Length

    2.8mm – 12mm

    F-Stop

    F1.4

    Focus Operation

    Manual

    Iris Operation

    Adjustable Manual

    FOV (Horizontal)

    1/2.7″ : 113°(wide) – 28°(tele)

    1/3″ : 97°(wide) – 24.5°(tele)

    Image Format

    1/2.7″, 1/3″

    TV Distortion

    1.5% with 1/2.5″ Sensor

    Physical

    Mount Type

    CS

    Operation Temp

    -4°F – 140°F

    Dimension

    46.5mm x 68.97mm / 1.83″ x 2.71″

    Weight

    4g/0.009Lbs
