Lilliput H7S 7" 4K HDMI/3G-SDI Ultra-Bright

Brand: Liliput
  • Ready for delivery
€325,00 (€268,60 Excl. tax)
1920 x 1200 Native resolution / 1800 cd/m² Brightness, HDR Support / HDMI/3G-SDI Inputs/Outputs, Tally Input...More information
085 130 5392
Great deals
Professional advice
Tailored Services
Product information
  • Article number: Lilliput_H7S

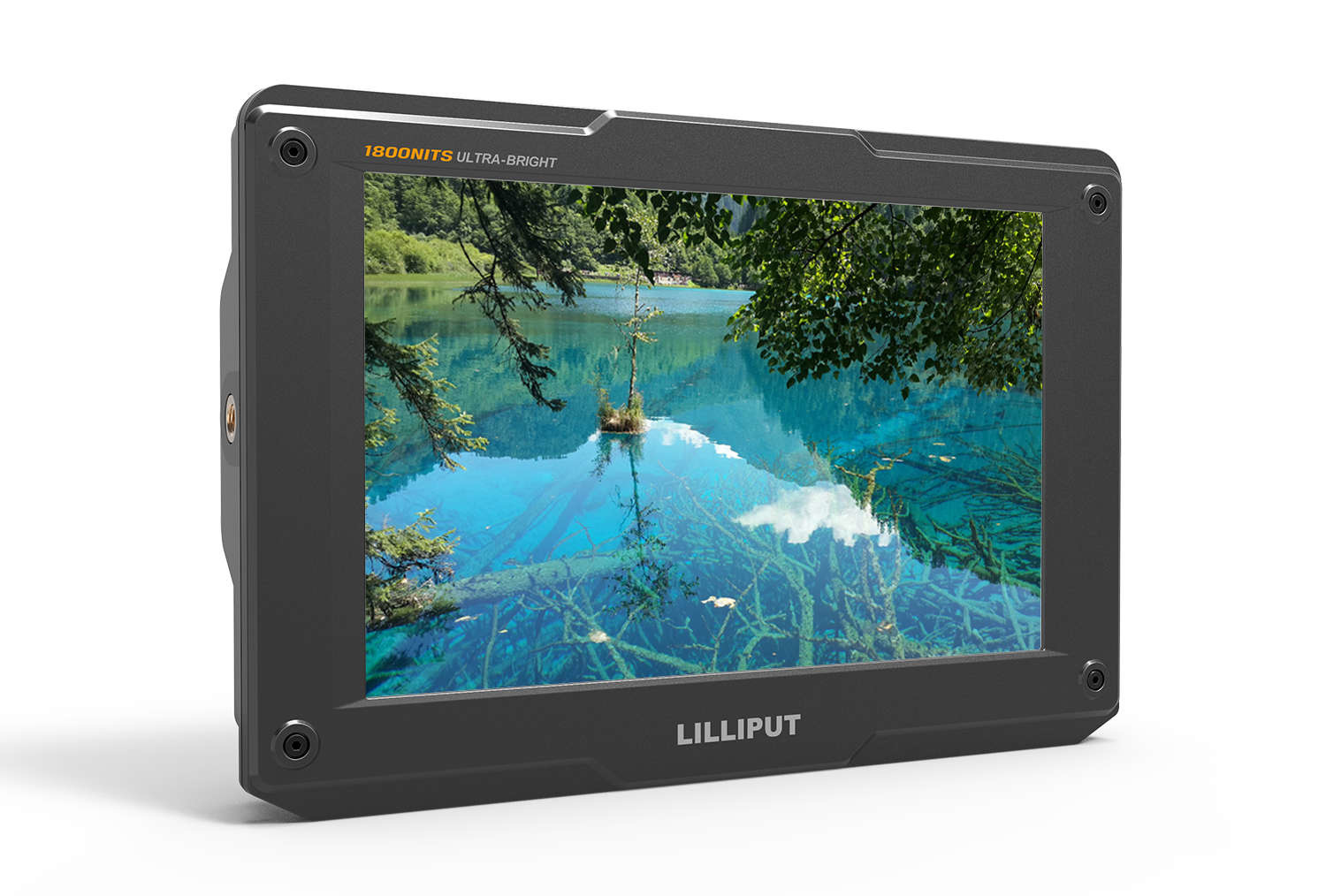

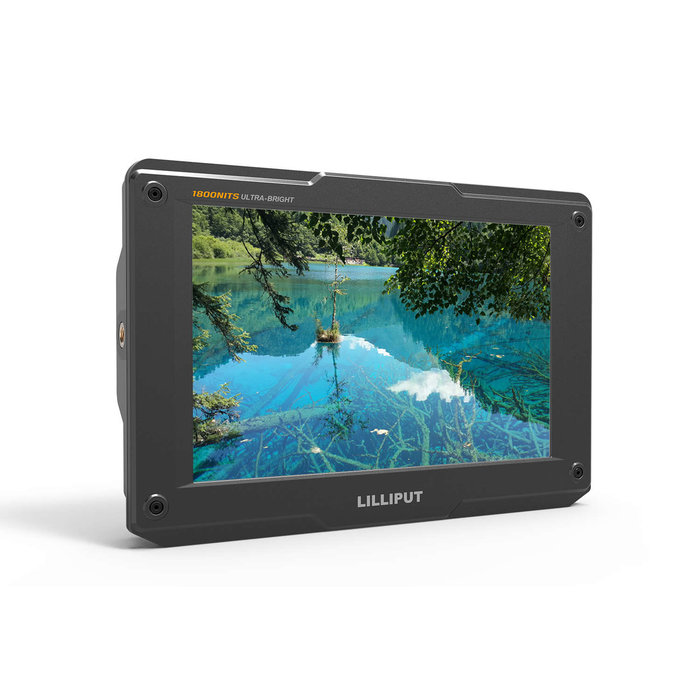

Monitor your 4K camera images with the H7S 7" 4K HDMI/3G-SDI Ultra-Bright On-Camera Monitor from Lilliput. The H7S features 3G-SDI and HDMI 1.4 inputs, making it suitable for DCI 4K24 and UHD 4K filmmaking and photography. With a 16:10 aspect ratio, an ultra-bright 1800 cd/m² display, and a 1200:1 contrast ratio, the LCD panel displays Full HD images natively in 1920 x 1200, up to a maximum resolution of 2840 x 2160. The HDMI loop-through output function allows you to output via 3G-SDI or HDMI to any other compatible device.

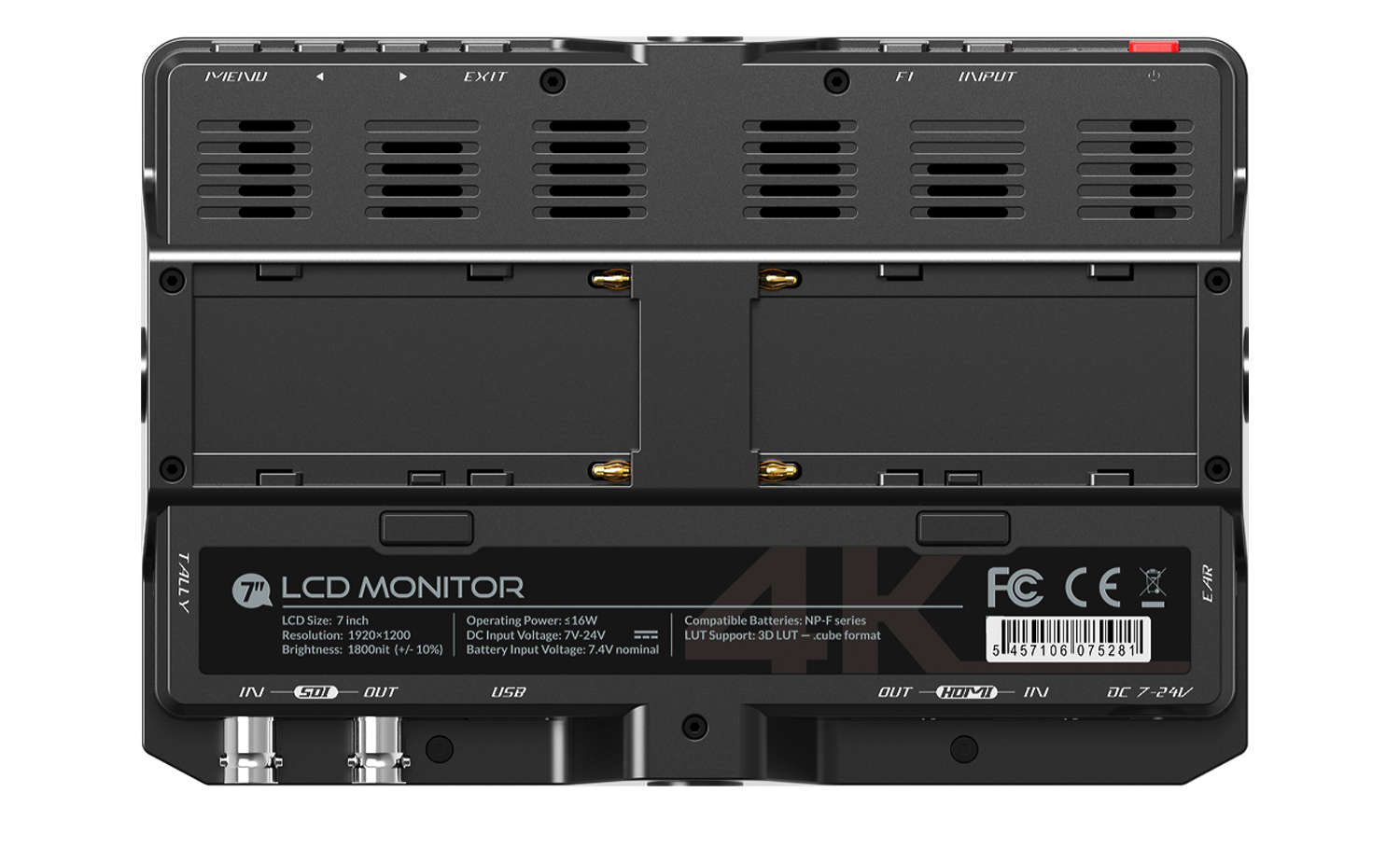

The H7S supports loading 3D LUTs via the USB port on the bottom, and it supports HDR image input with the ability to display a wide dynamic range such as ST2084-300, ST2084-1000, ST2084-10000, and HLG (Hybrid Log Gamma). On the back of the monitor is a dual L-series battery plate so you can power the monitor for a long shoot. The batteries are also hot-swappable so you can charge one battery and then swap out the other while the monitor is in use, without having to power it down.

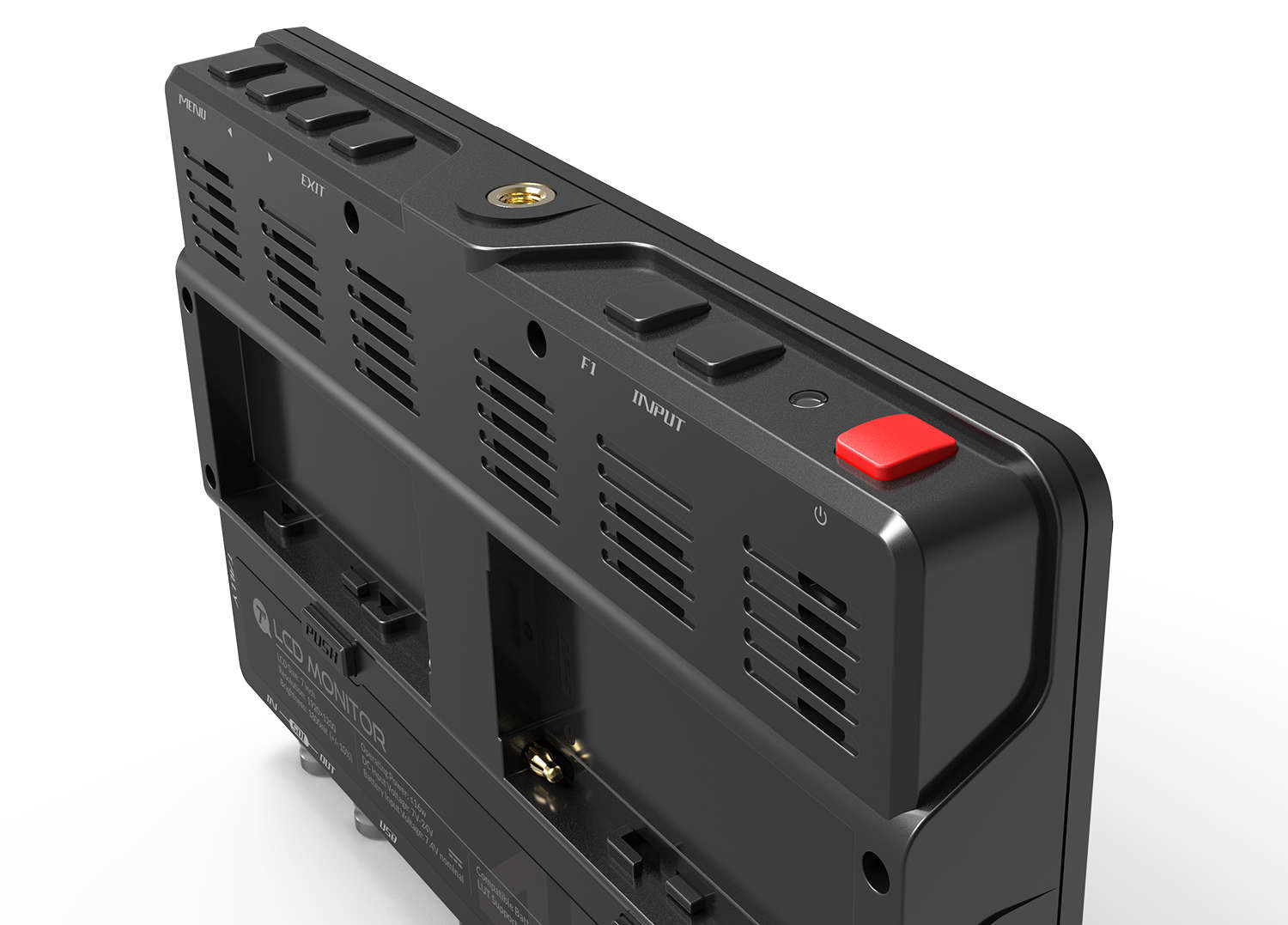

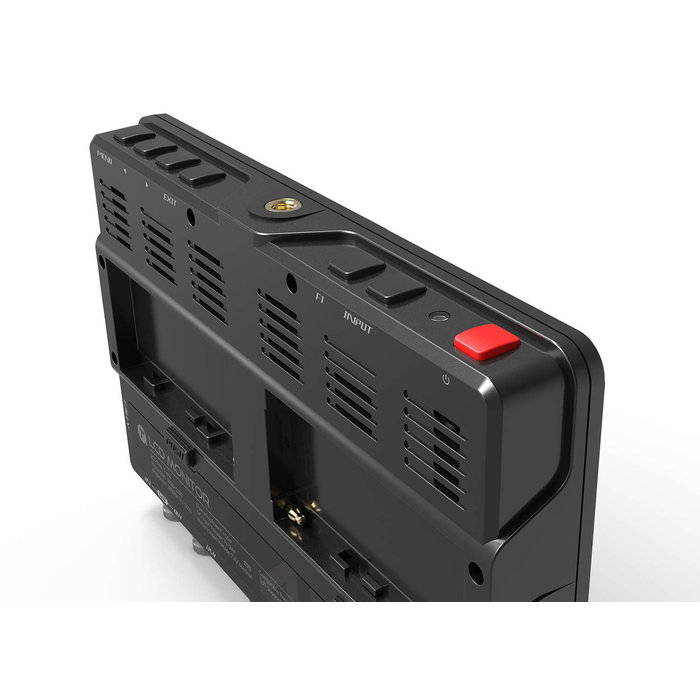

The monitor features a speaker, a headphone jack, a tally input, and numerous control and function buttons around the display. You can create shortcuts to your favorite and most used monitor functions using the two customizable function keys. You can mount the monitor onto your camera by attaching the included shoe mount adapter to the 1/4"-20, or with threads on the bottom or sides. An HDMI type A to type C cable, a tally cable, a power adapter, and a carry bag are also included in the box.



7" bright 1800 cd/m² display; 1200:1 contrast ratio

DCI and UHD 4K compatible; HDR support

Support for 3D LUTs, which are loaded via the USB port on the bottom

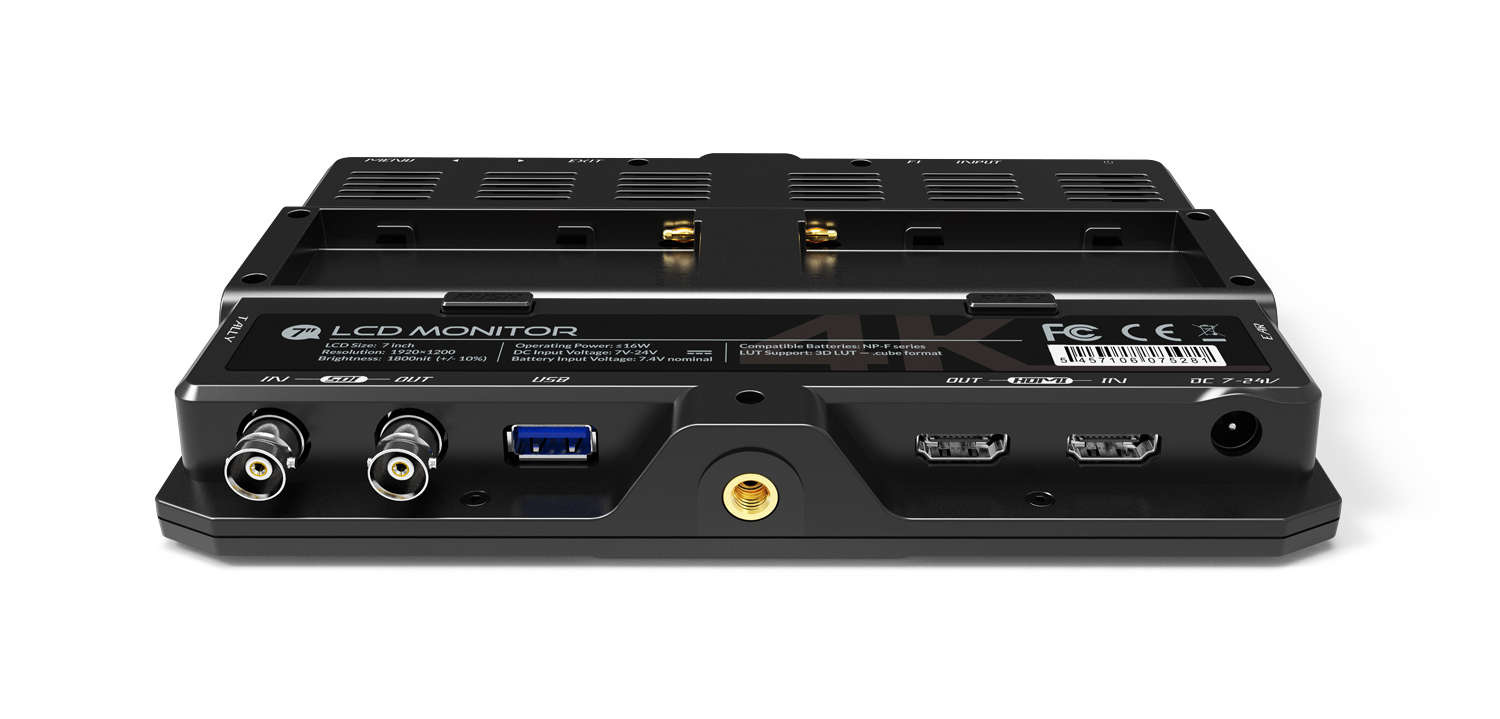

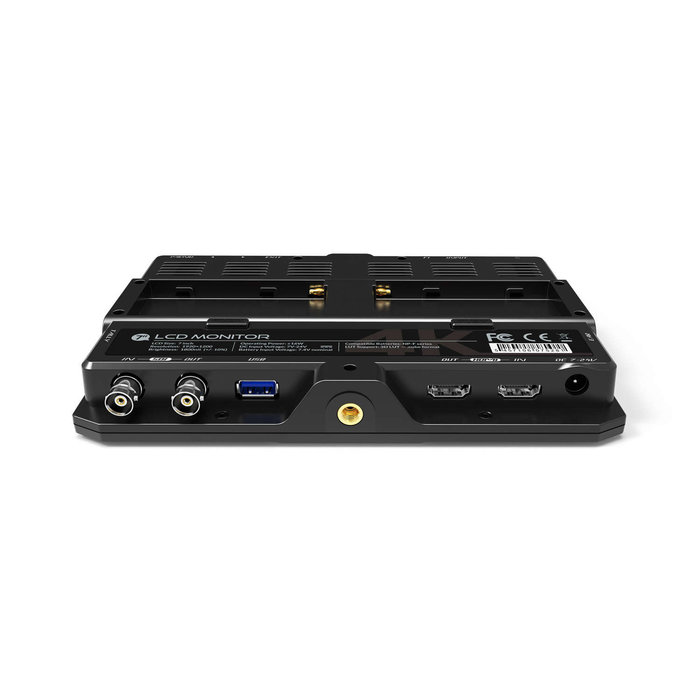

HDMI and 3G-SDI input and output; tally input

Advanced functions such as pixel zoom, level meter, peaking, false color, histogram, H/V delay, exposure, check field, image flip, pixel-to-pixel, markers, aspect ratio, and freeze

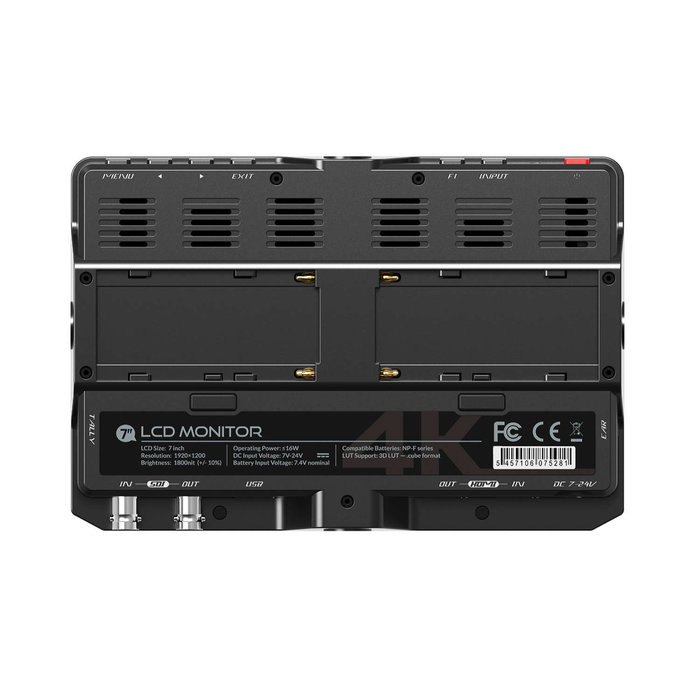

Dual-battery Sony L-series/F-970 battery plate on back; batteries are hot-swappable

Includes shoe mount adapter tilts 180° and rotates 360°

Three 1/4"-20 mounting threads on bottom and sides

Technische specificaties

    Display

    Panel Type

    IPS-Type LCD

    Display Size

    7.0" / 17.8 cm

    Resolution

    1920 x 1200

    Aspect Ratio

    16:10

    Viewing Angle

    Horizontal: 160°
    Vertical: 60°

    Touchscreen

    No

    Maximum Brightness

    1800 cd/m2

    Contrast Ratio

    1200:1

    Dot Pitch

    0.07870 x 0.07875 mm

    Pixels Per Inch (ppi)

    323 ppi

    Real-Time LUT Monitoring

    HDR

    I/O

    Video

    1 x HDMI Type A (HDMI 1.4b) Input
    1 x HDMI Type A (HDMI 1.4b) Output
    1 x BNC (3G-SDI) Input
    1 x BNC (3G-SDI) Output

    Audio

    1 x 1/8" / 3.5 mm Headphone Input

    Built-In Speaker

    1 x 1 W

    Other I/O

    1 x Tally (BNC) Input
    1 x USB 2.0 (USB Type-A) Input

    Media/Memory Card Slot

    None

    Wireless

    Wi-Fi

    None

    Format Support

    Video Format

    HDMIRGB
    DCI 4K: 24
    UHD 4K: 30/24
    DCI 2K
    1080p

    Power

    DC Input Power

    7 to 24 VDC

    Battery Type

    2 x L-Series

    Power Consumption

    16 W (Maximum)

    Mounting

    Mounting

    3 x 1/4"-20 Female

    Environmental

    Operating Temperature

    32 to 140°F / 0 to 60°C

    Operating Humidity

    0 to 90%

    Storage Temperature

    14 to 140°F / -10 to 60°C

    General

    Dimensions

    8.9 x 6.1 x 0.9" / 225 x 155 x 23 mm

    Weight

    19.40 oz / 550 g

In de doos

Lilliput H7S 7" 4K HDMI/3G-SDI Ultra-Bright On-Camera Monitor

Tilting Shoe Mount Adapter

Tally Cable

HDMI Type A to Type C Cable

Power Adapter

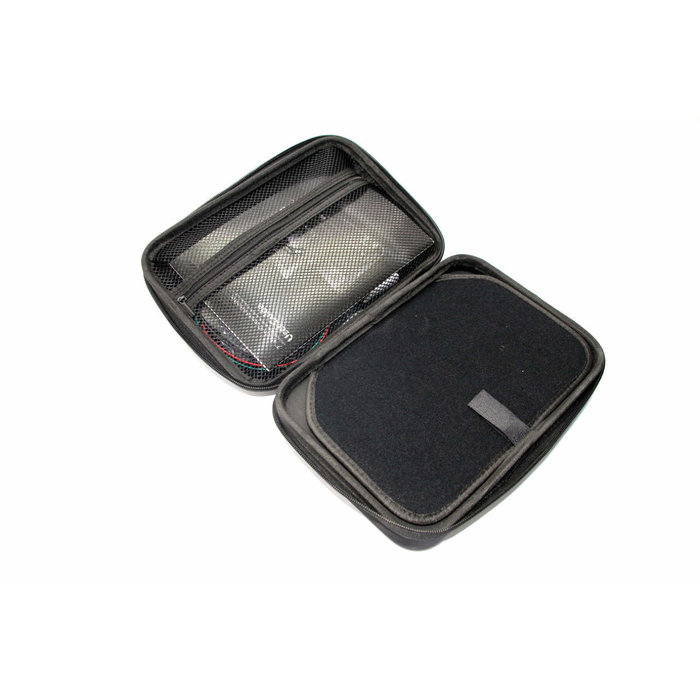

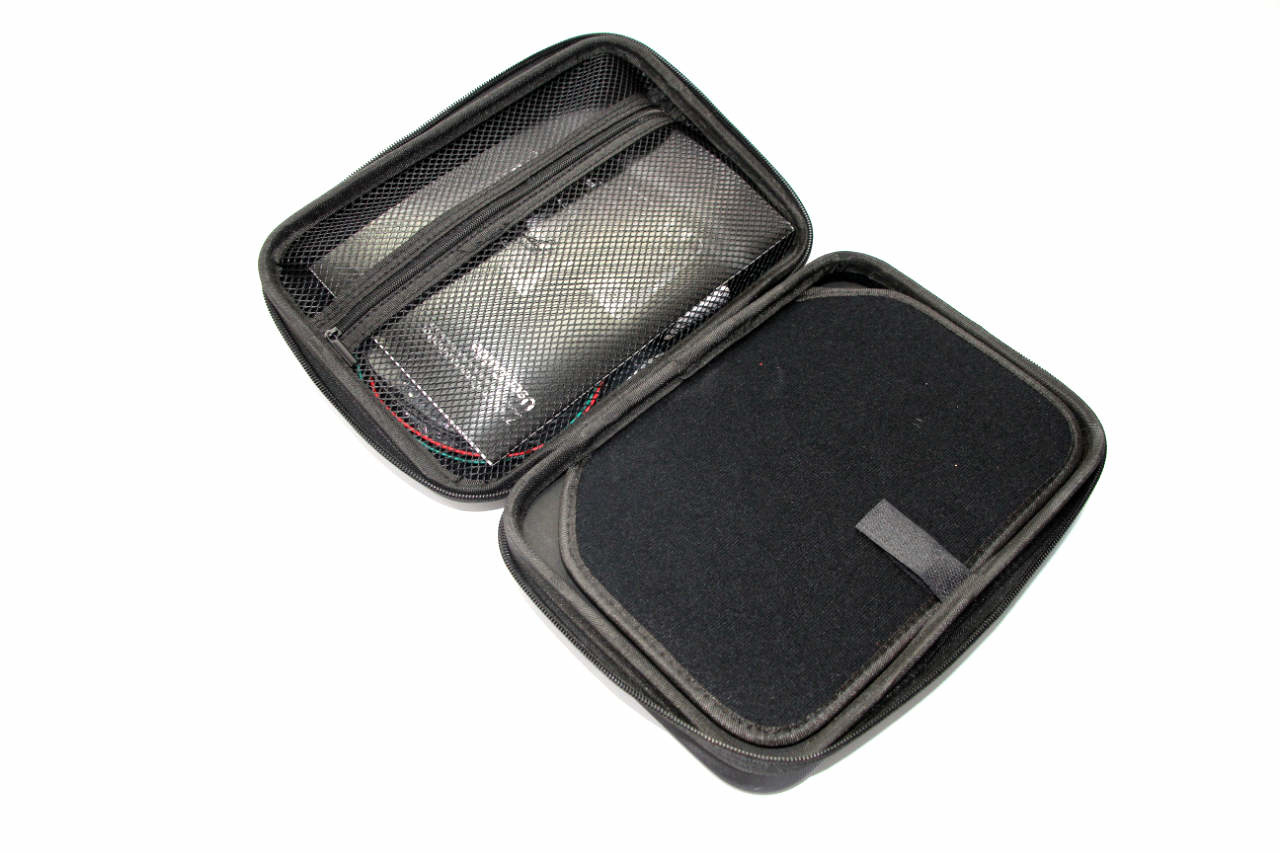

Carry Bag
