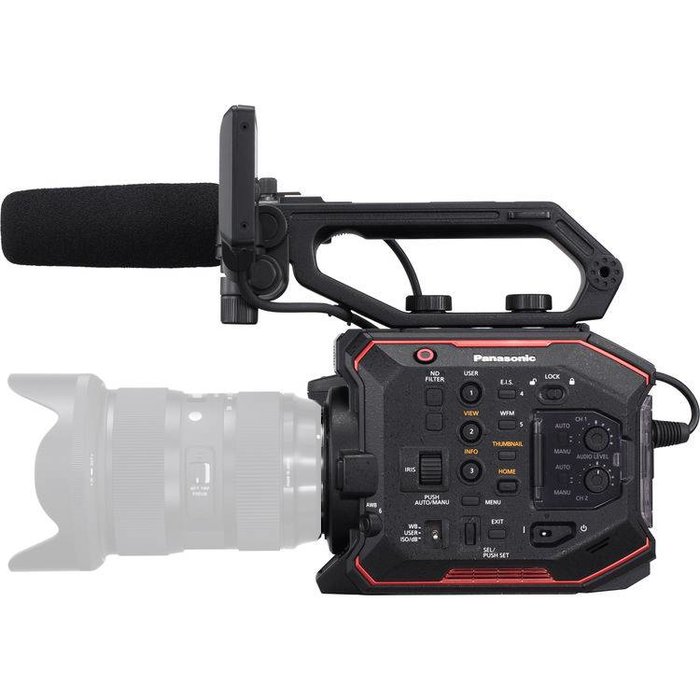

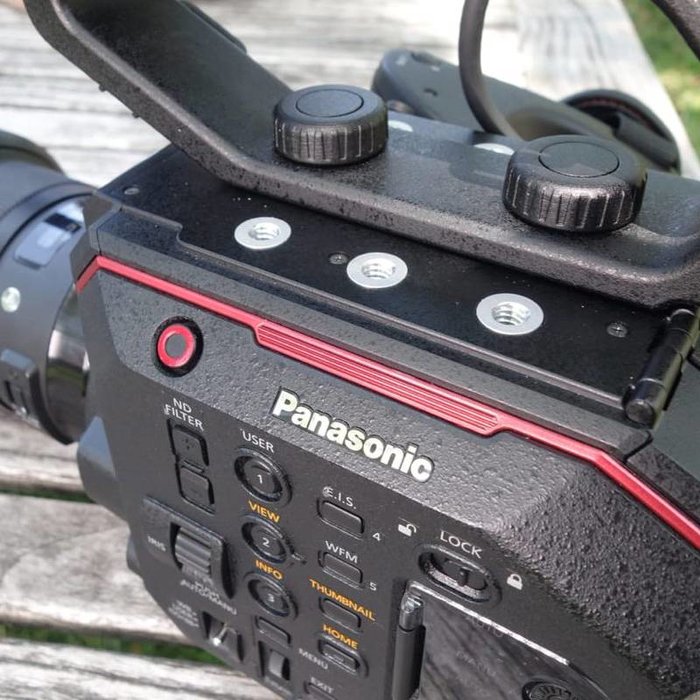

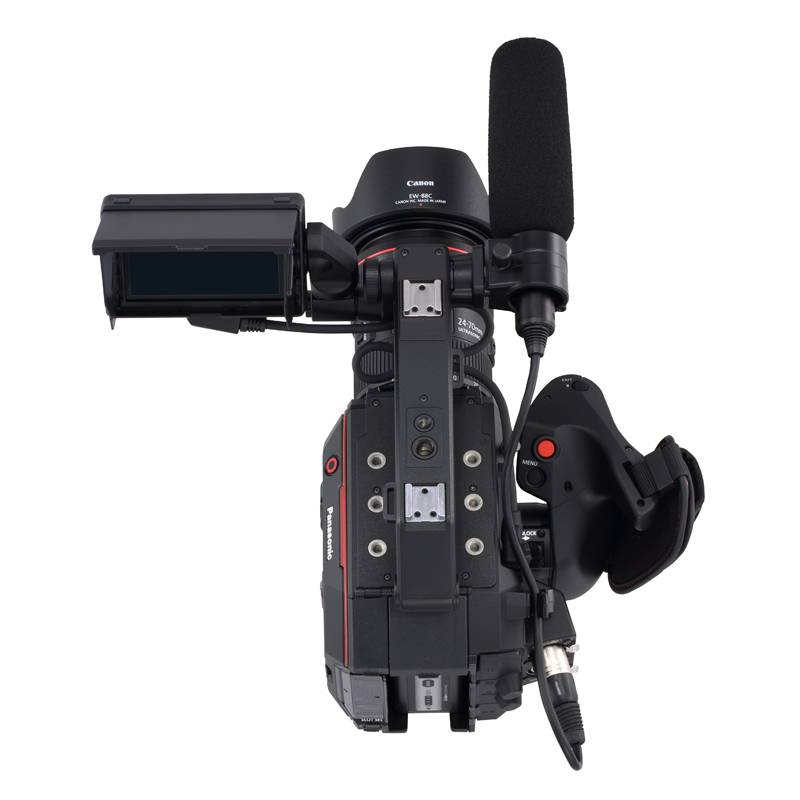

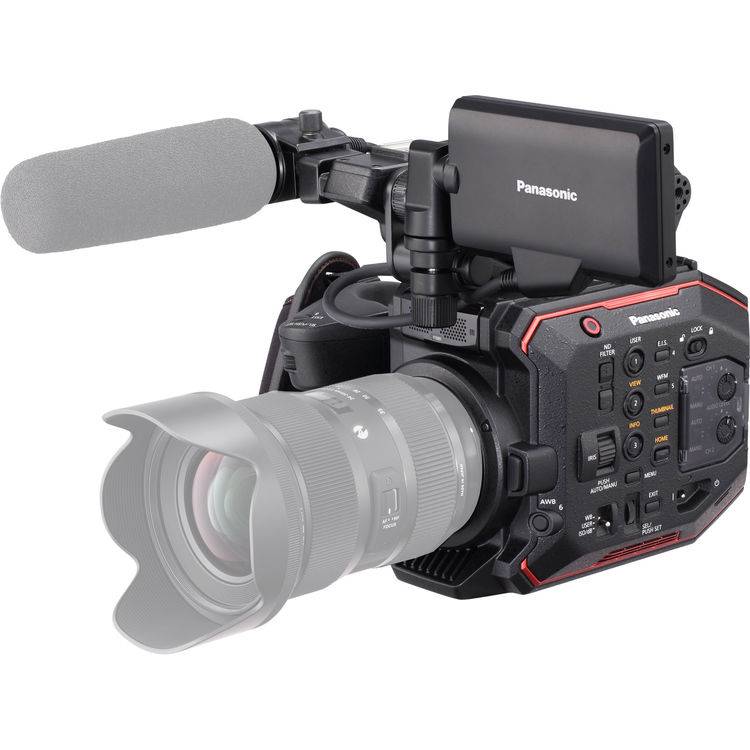

Panasonic AU-EVA1

  • Ready for delivery
€6.899,00 (€5.701,65 Excl. tax)
- 3 year + 2 year Panasonic warranty*
- Super 35mm 5.7K Sensor
- EF Lens Mount
- 10-Bit, 4:2:2 Processing...More information
+31 (0) 316 294 700
Great deals
Professional advice
Tailored Services
Product information
  • EAN: 05025232872152





Housing a high-resolution 5.7K image sensor capable of rendering smooth 4K images inside a compact body, Panasonic's AU-EVA1 Compact 5.7K Super 35mm Cinema Camera is a flexible camera system ready for documentary, cinema, and live event production. The 5.7K sensor is used to super-sample internal recordings, resulting in higher resolving images with less noise and artifacting when compared to non-super-sampled recordings. Panasonic's acclaimed Dual Native ISO technology is also incorporated into this sensor. Dual Native ISO uses alternative circuitry within the sensor, rather than adding gain or shifting the gamma of the original signal output, to increase sensitivity while maintaining a high signal-to-noise ratio.



An EF lens mount at the front of the body supports a wide-range of interchangeable lenses from popular manufacturers. Directly behind the mount is an electronically controlled ND filter wheel offering, 2, 4, and 6 stops of filtration for cutting down on excess light, letting you set your lens's aperture to fit the desired aesthetic of your production. For further flexibility, the IR-cut filter is defeatable for shooting in extreme low-light situations or for creative color effects.



On the back-end, videos are recorded using 10-bit, 4:2:2 sampling for smooth gradations in subtle shades and a reduction in banding artifacts over 8-bit sampling. Bit-rates of up to 400 Mbps ensure low compression ratios that will maintain quality through an intensive post-production pipeline required by professional workflows.



Infusing high-resolution recording into a small form-factor camera body gives DPs and camera operators the flexibility to achieve cinema-grade images in spaces normally restrictive of larger camera systems. Additionally, since tactile controls and I/O connections are available on the exterior of the camera, the overall design doesn't sacrifice conventional ergonomics for traditional shooting scenarios whether operating handheld or locked down atop a tripod.



5.7K Sensor



Panasonic's 5.7K sensor is at the heart of this camera. Its high resolution allows for oversampled 4K footage, resulting in sharp images with reduced aliasing and increased color fidelity over native 4K Bayer-pattern sensors. Video is recorded on widely available SD cards, providing high-quality recording on accessible, industry-standard media.



Dual Native ISO



Utilizing a process that allows the sensor to be read in a fundamentally different way, Dual Native ISO extracts more information from the sensor without affecting the image in the same way as increasing the gain or shifting the gamma. This results in the EVA1 being a camera that can switch from a standard sensitivity to a high sensitivity with minimal, if any, impact by way of image artifacting.



V-Log and V-Gamut Capture



Combining Panasonic-developed V-Log and V-Gamut, the EVA1 can capture a wide exposure latitude and represent a wide color palette. V-Log has exposure curve characteristics that are somewhat reminiscent of negative film while V-Gamut delivers a color space even larger than film. Having both of these tools enables the EVA1 to be used in production workflows for both HDR and SDR production.



* 3 year standard Panasonic warranty and optional 2 year extended warranty. Panasonic reserves the right to withdraw this offer at any time without previous notice.



Technische specificaties

    Image Sensor

    Size

    Super 35

    Note: 4/3"-type size crop for 200/240 fps shooting

    Resolution

    5.7K
    Total Pixels: 6340 x 3232 (approx. 20.49 MP)
    Effective: 5720 x 3016 (approx. 17.25 MP)

    Exposure Latitude

    14 stops

    Sensitivity

    ISO: 200-2000 (base 800), 1000-25,600 (base 2500)
    dB: -12 to 8 (normal sensitivity), -8 to 20 (high sensitivity)

    Shutter Speed

    Degrees: 1-358° (0.5° steps)
    Seconds: 1/24.1 sec to 1/8000 sec (at 23.98p)

    Color Temperature

    2000-15,000K



    Lens System

    Lens Mount

    EF

    Built-In ND Filters

    2, 4, 6 stops

    IR Filter

    Defeatable IR-cut



    Video

    Recording Resolution

    4096 x 2160
    3840 x 2160
    2048 x 1080
    1080p
    1080i
    720p

    Processing

    MOV: 10-bit, 4:2:2
    MOV/AVCHD: 8-bit, 4:2:0
    Compression: H.264/MPEG-4 AVC High Profile
    Bit-Rate: Up to 150 Mbps

    Recording Media

    SD card (V60 rating required for all frame-rates and resolutions)

    System Frequency Selection

    59.94p, 59.94i (AVCHD only), 50p, 50i (AVCHD only), 29.97p, 25p, 24p, 23.98p

    SDI Output

    1 x BNC, HD/3G/6G-SDI (record start/stop supported)
    Format: 10-bit, 4:2:2
    4096 x 2160 23.98/24/25/29.97
    3840 x 2160 23.98/24/25/29.97
    1080p 23.98/24/25/29.97/50/59.94
    1080PsF 23.98/24/25/29.97
    1080i 50/59.94
    720p 23.98/24/25/29.97/50/59.94

    HDMI Output

    1 x HDMI Type A (record start/stop supported)
    Format:: 10-bit, 4:2:2
    4096 x 2160 23.98/24/25/29.97/50/59.94
    3840 x 2160 23.98/24/25/29.97/50/59.94
    1080p 23.98/24/25/29.97/50/59.94
    1080i 50/59.94
    720p 23.98/24/25/29.97/50/59.94
    576p 50
    480p 59.94



    Audio

    Recording Format

    MOV: 24-bit, 48kHz LPCM
    AVCHD: 16-bit, 48kHz Dolby Audio

    Headroom

    18/20 dB (menu switchable)



    General

    Other I/O

    1 x BNC, timecode in/out
    1 x 40-pin, LCD connector
    1 x 2.5mm, remote
    1 x USB 2.0 Type A, wireless module (AJ-WM50)

    LCD Monitor

    Size: 3.5" / 8.9 cm
    Type: Touchscreen LCD
    Dots: 1,150,000

    Stabilization

    Electronic Image Stabilization (EIS)

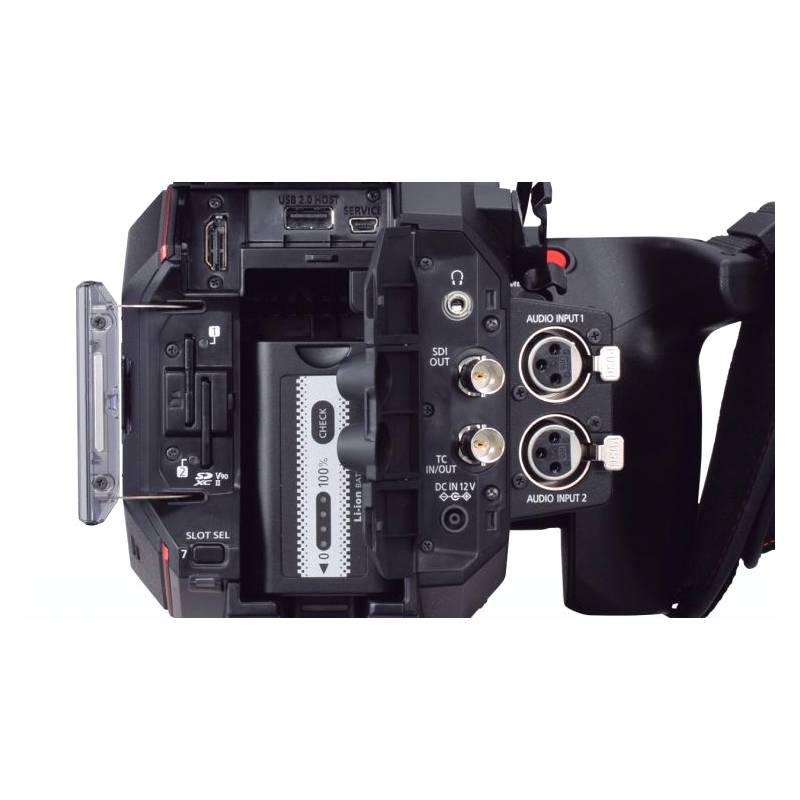

    I/O

    HDMI video output
    SDI video output
    XLR audio inputs

    Power Input

    Battery: 7.28 VDC
    Power Supply: 12 VDC

    Power Consumption

    19 W (typical)

    Environmental

    Operating Temperature: 32 to 104°F / 0 to 40°C
    Storage Temperature: -4 to 140°F / -20 to 60°C
    Operating Humidity: 10-85% RH

    Dimensions

    6.7 x 5.3 x 5.2" / 17 x 13.5 x 13.3" (excluding protrusions and accessories)

    Weight

    2.6 lb / 1.2 kg (without accessories)
    4.5 lb / 2.1 kg (with accessories)



In de doos

Panasonic AU-EVA1 Compact 5.7K Super 35mm Cinema Camera


7.28V 43Wh Battery for DVX200 (5,900mAh)


Battery Charger for AG-VBR & Other Batteries


AC Adapter


AC Cable


Shoulder Strap


Microphone Holder


Microphone Holder Adapter


LCD Monitor with Hood and Mount


Top Handle


Handgrip


Grip Belt


EF Port Cap
