Blackmagic Design Video Assist 3G 5"

  • Ready for delivery
€595,00 (€491,74 Excl. tax)
1920 x 1080 5" Touchscreen LCD / Records up to 1080p60 Video / HDMI and 3G-SDI Video Inputs...More information
+31 (0)85 1305 392
Great deals
Professional advice
Tailored Services
Product information
  • Article number: HYPERD/AVIDA03/5

Blackmagic Video Assist 5” 3G is a portable monitor, a professional recorder, a portable scope and a fantastic camera viewfinder solution! You can also add better quality record codecs and a larger monitor to any SDI or HDMI camera! The new design has innovations such as 4 built in scopes, enhanced focus assist features, a tally indicator and built in 3D LUTs. The Video Assist 5” 3G support formats up to 1080p60 and the new design also has L-Series batteries for longer life. Blackmagic Video Assist 5” 3G really is 4 products in one!

Technische specificaties

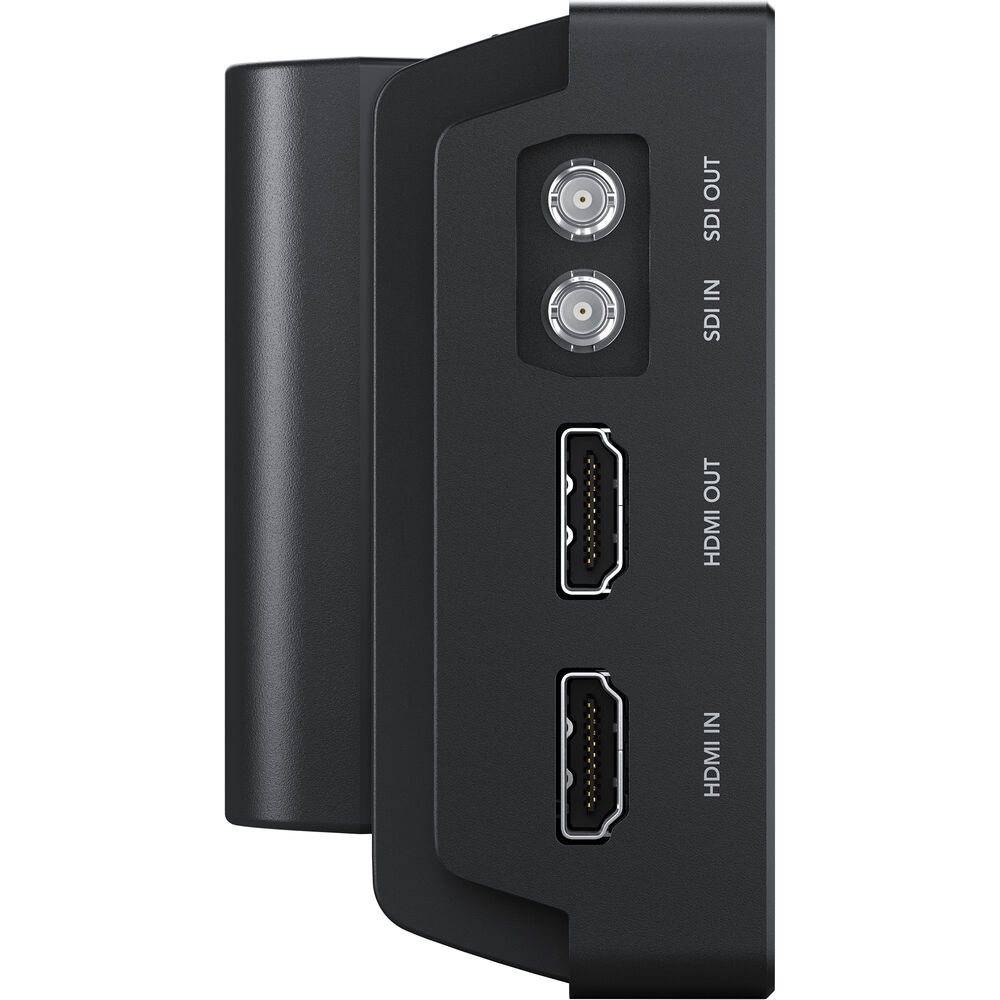

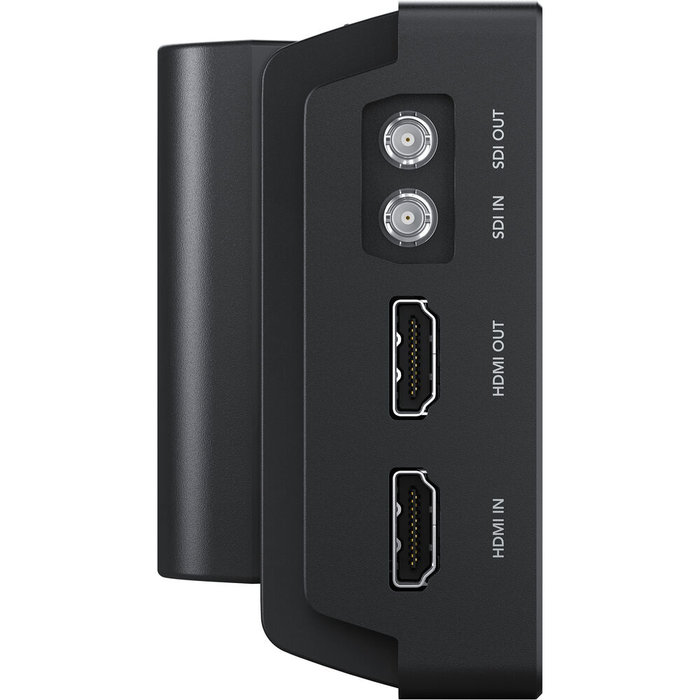

    SDI Video Inputs

    1 x Micro BNC

    SDI Video Outputs

    1 x Micro BNC

    SDI Rates

    270Mb, 1.5G, 3G

    HDMI Video Inputs


    HDMI Video Outputs


    Analog Audio Inputs

    None, embedded audio only.

    Analog Audio Outputs

    1 x 3.5mm headphone jack.

    Built in Speaker

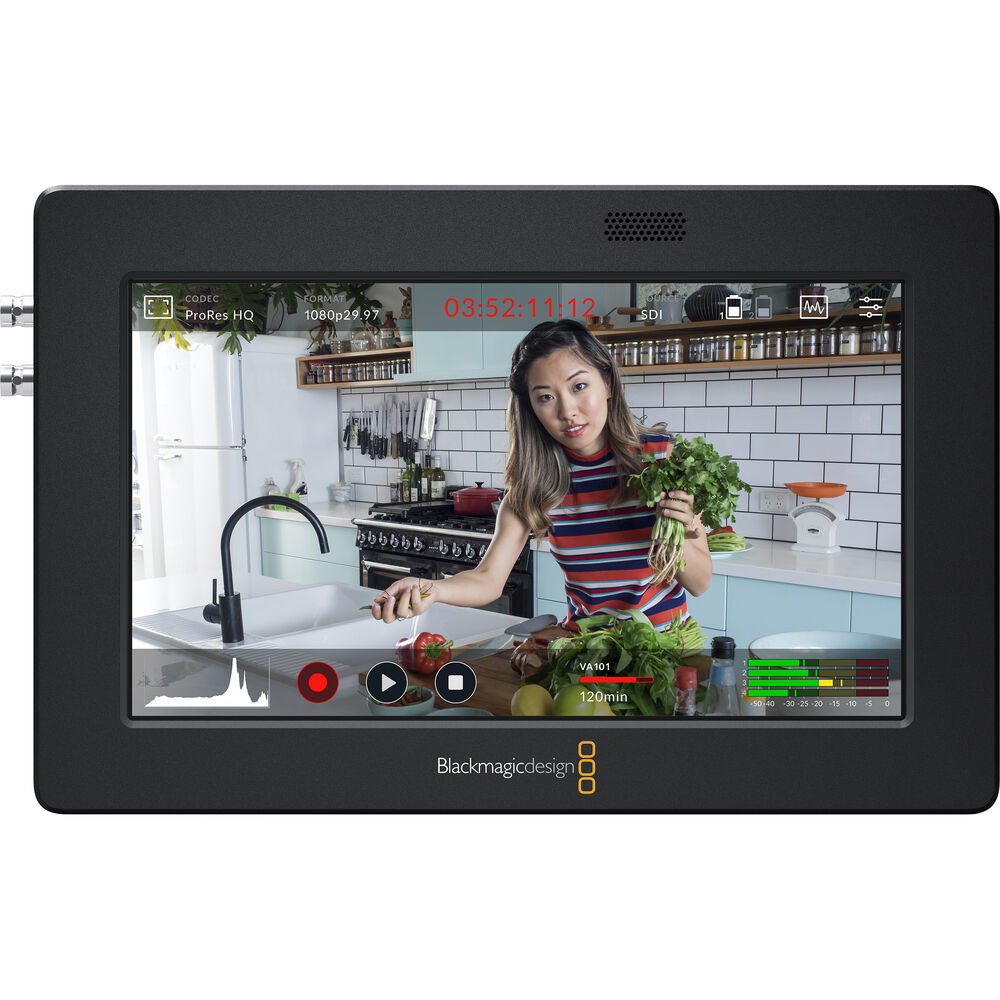

    Screen Dimensions

    5 inch 1920 x 1080.

    Screen Brightness


    SDI Audio Inputs

    16 channels embedded via SDI

    SDI Audio Outputs

    16 channels embedded via SDI

    HDMI Audio Inputs

    8 channels embedded via HDMI

    HDMI Audio Outputs

    8 channels embedded via HDMI

    Remote Control

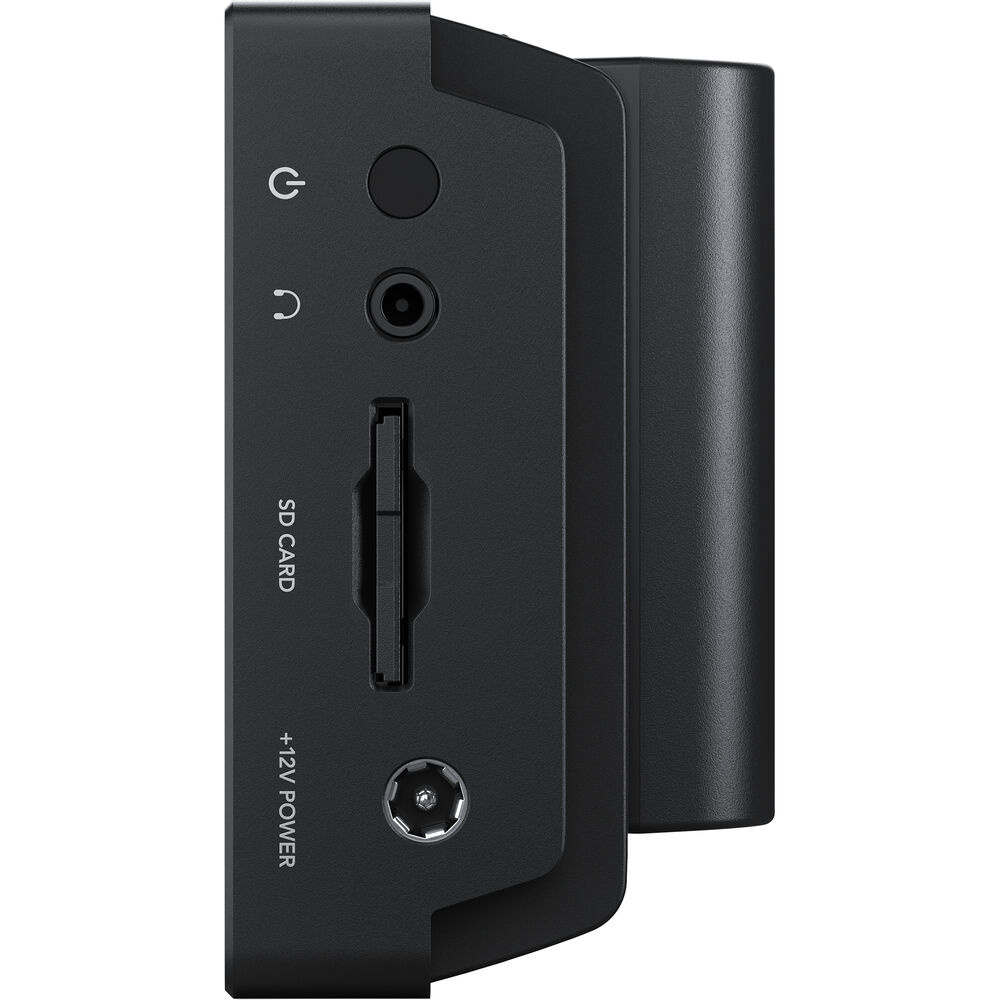

    SD Interface

    1 x UHS-I SD slot.

    Storage Type

    SDXC UHS-I and SDHC UHS-I SD cards.
    Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.

    Computer Interface

    1 x USB Type‑C for initial setup, software updates and Video Assist Utility software control.


    SDI Video Standards

    SD Video Standards

    525i59.94 NTSC, 625i50 PAL

    HD Video Standards

    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    1080i50, 1080i59.94, 1080i60

    SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M

    SDI Metadata Support

    HD RP188

    Audio Sampling

    Television standard sample rate of 48 kHz and 24-bit.

    Video Sampling

    4:2:2 YUV

    Color Precision


    Color Space

    REC 601, REC 709

    Multiple Rate Support

    SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s.


    HDMI Video Standards

    SD Video Standards

    525i59.94 NTSC, 625i50 PAL

    HD Video Standards

    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080i50, 1080i59.94, 1080i60

    HDMI Color Precision


    Copy Protection

    HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.




    1 x UHS-I SD for HD recording.

    Media Type

    SDXC UHS-I and SDHC UHS-I SD cards.


    Supported Codecs

    ProRes 422 HQ, ProRes 422, ProRes 422 LT, ProRes 422 Proxy, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF.



    Recorder Control

    Integrated capacitive touchscreen LCD with Blackmagic OS onscreen controls for settings and navigating menus.

    External Control

    SDI and HDMI start/stop, timecode run.



    Software Included

    Blackmagic Video Assist Operating System




    Waveform, RGB Parade, Vector, Histogram.

    Viewing Modes

    Scopes with picture in picture or picture overlay and opacity control.

    Operating Systems

    Mac 10.14 Mojave,
    Mac 10.15 Catalina or later.

    Windows 8.1 and 10.


    Power Requirements

    Power Supply

    1 x External 12V power supply.

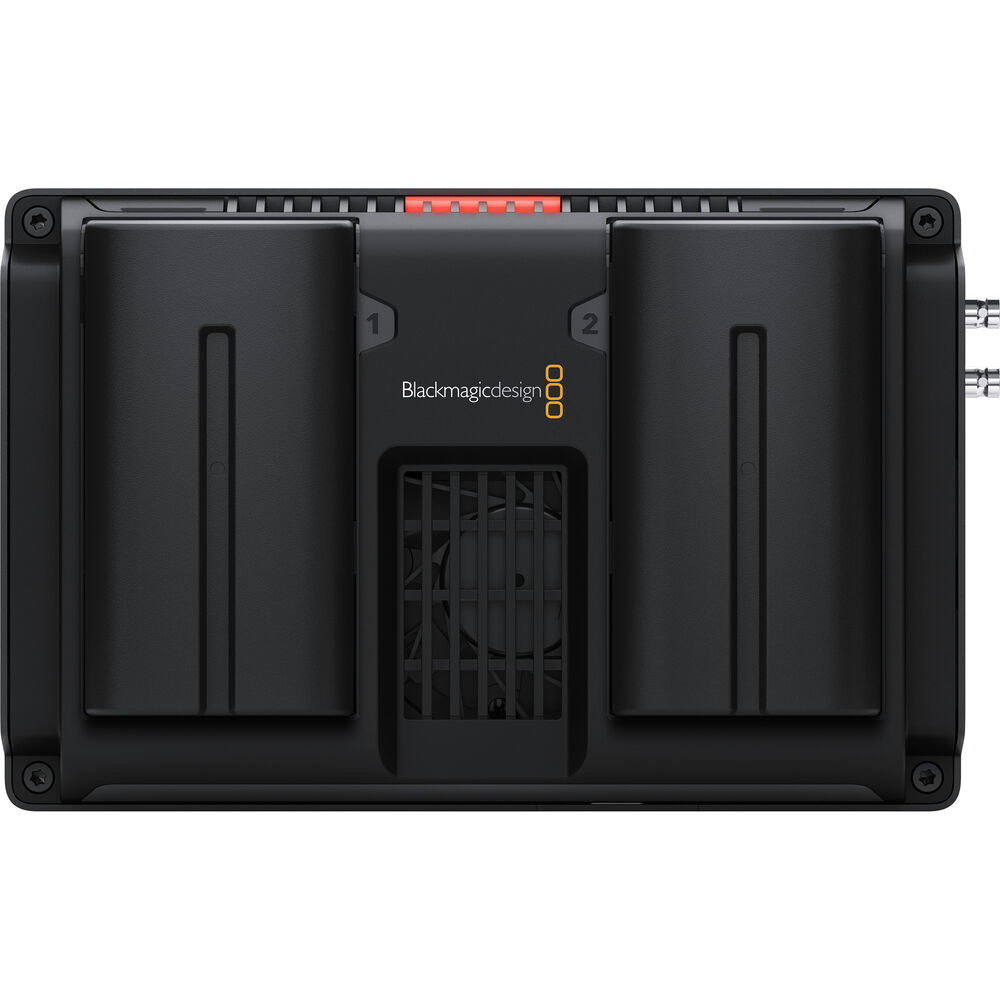

    Compatible with Sony NP-F style batteries.
    (batteries not included)


    Environmental Specifications

    Operating Temperature

    0° to 40° C (32° to 104° F)

    Storage Temperature

    -20° to 45° C (-4° to 113° F)

    Relative Humidity

    0% to 90% non-condensing

In de doos

Blackmagic Video Assist 5” 3G

Universal power supply with international adapters
